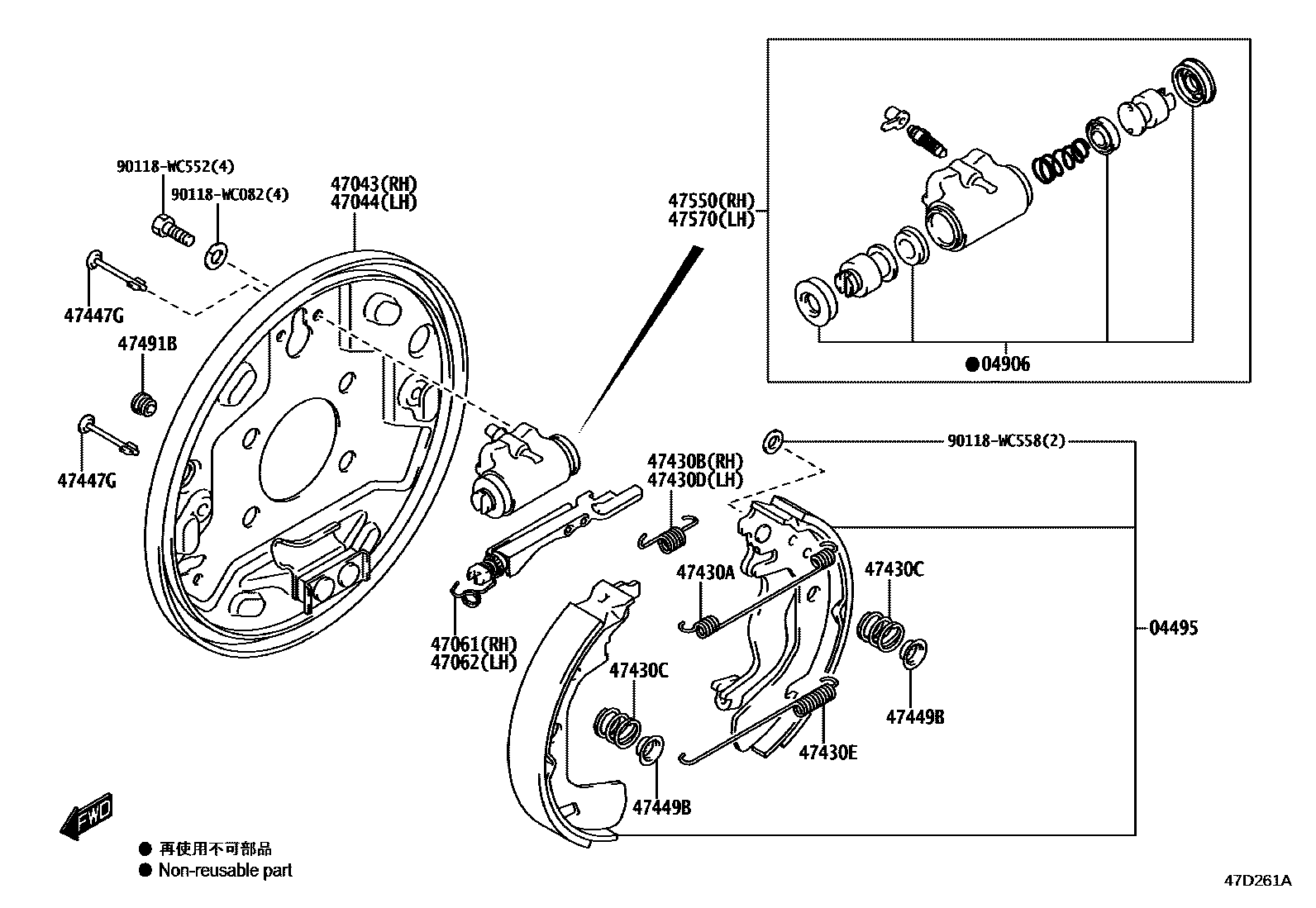

Toyota BELTA — REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE
04495SHOE KIT, REAR BRAKE
POS.17; POS.22; POS.28
04906CUP KIT, REAR WHEEL CYLINDER
POS.17; POS.22; POS.28
47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH
POS.17; POS.22; POS.28
47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH
POS.17; POS.22; POS.28
47061STRUT SET, PARKING BRAKE SHOE, RH
POS.17; POS.22; POS.28
47062STRUT SET, PARKING BRAKE SHOE, LH
POS.17; POS.22; POS.28
47430ASPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
POS.17; POS.22; POS.28
47430BSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
POS.17; POS.22; POS.28
47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)
POS.17; POS.22; POS.28
47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
POS.17; POS.22; POS.28
47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
POS.17; POS.22; POS.28
47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
POS.17; POS.22; POS.28
47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
POS.17; POS.22; POS.28
47491BPLUG, HOLE(FOR REAR BRAKE)
POS.17; POS.22; POS.28
47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
POS.17; POS.22; POS.28
47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
POS.17; POS.22; POS.28
90118WC082
main90118-WC082
90118WC552
main90118-WC552
90118WC558
main90118-WC558
19 parts on this diagram · 1 diagram in section
REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE for Toyota BELTA
This section contains 19 genuine Toyota parts for the REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE system of the Toyota BELTA. Key components include: SHOE KIT, REAR BRAKE, CUP KIT, REAR WHEEL CYLINDER, PLATE SUB-ASSY, BRAKE BACKING, REAR RH, PLATE SUB-ASSY, BRAKE BACKING, REAR LH, STRUT SET, PARKING BRAKE SHOE, RH.
