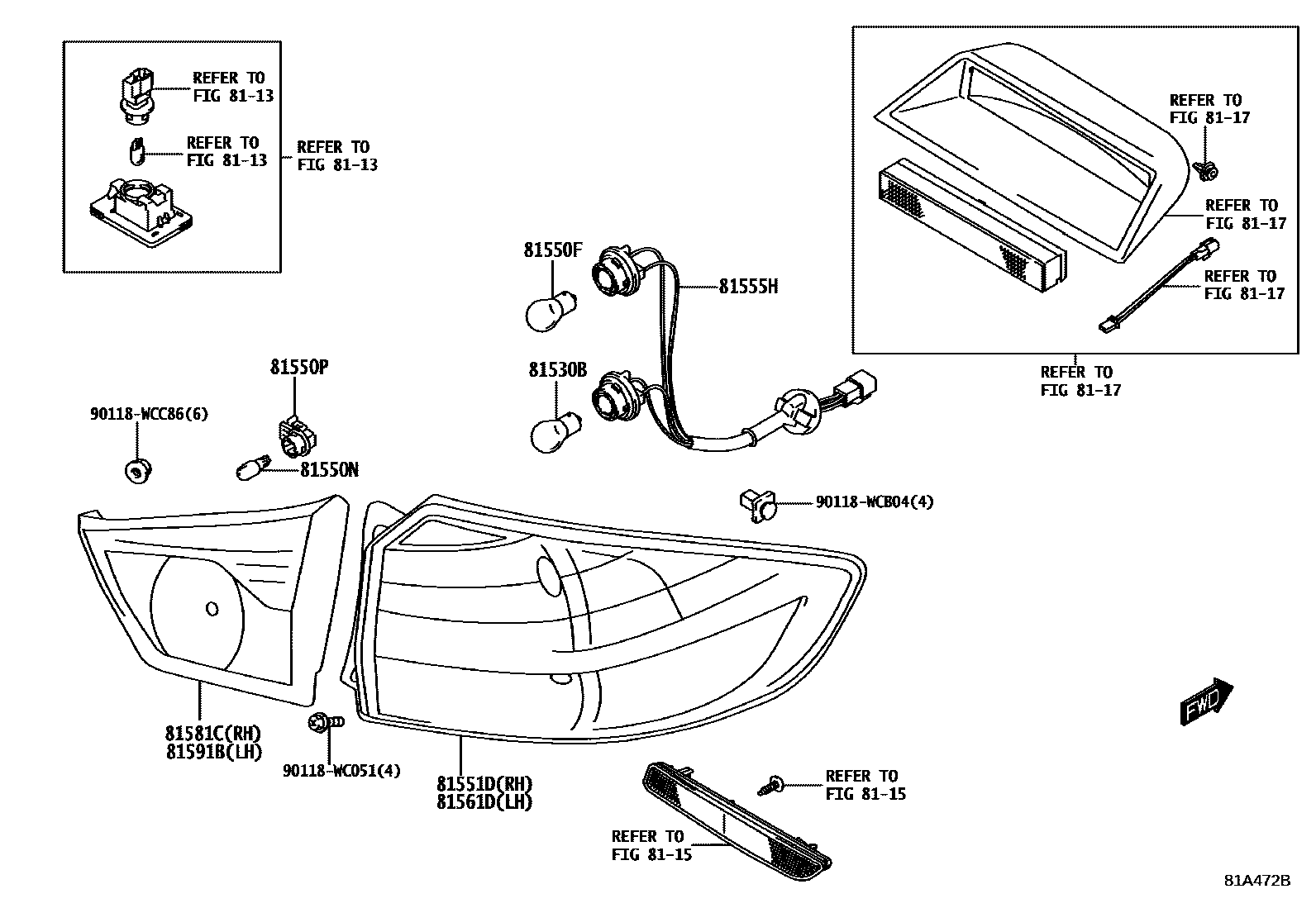

Toyota BELTA — REAR COMBINATION LAMP

0001 1HALOGEN REARLAMP 0002 1LED REARLAMP

8113

8115

8117

81530BBULB, REAR TURN SIGNAL LAMP

81550FBULB, TAILLAMP

81550NBULB, BACK UP LAMP

81550PSOCKET, BACK UP LAMP

81551DLENS & BODY, REAR COMBINATION LAMP, RH

81555HSOCKET & WIRE, REAR COMBINATION LAMP

81561DLENS & BODY, REAR COMBINATION LAMP, LH

81581CLENS AND BODY, REAR LAMP, RH

81591BLENS AND BODY, REAR LAMP, LH

90118WC051

main90118-WC051

90118WCB04

main90118-WCB04

90118WCC86

main90118-WCC86

15 parts on this diagram · 2 diagrams in section
