Toyota BELTA — MIRROR

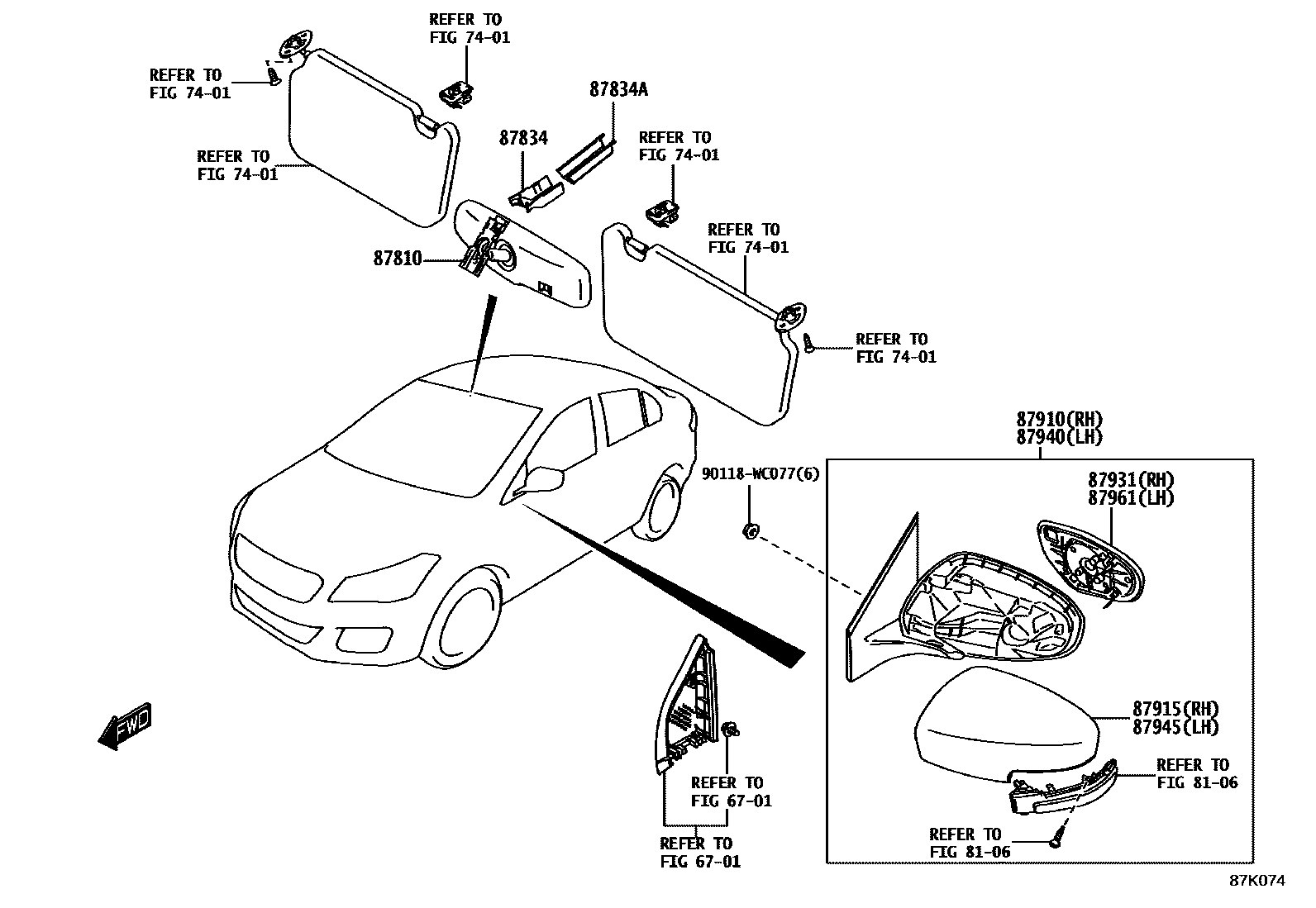

Parts diagram
6701
7401
8106
87810MIRROR ASSY, INNER REAR VIEW
main87810-WC001i202205-202310
POS.28
main87810-WC008i202107
POS.24
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
main87818-WC001i202205-202310
POS.28
87834ACOVER, INNER REAR VIEW MIRROR STAY HOLDER, NO.2
main87818-WC004i202107
POS.30
87910MIRROR ASSY, OUTER REAR VIEW, RH
main87910-WC065i202107
NO PAINT REQ.,POS.24,TRIM11&Z7Q
main87910-WC066i202107
NO PAINT REQ.,POS.26,TRIM03&ZQK
main87910-WC067i202107
NO PAINT REQ.,POS.26,TRIM02&ZQL
main87910-WC068i202107
NO PAINT REQ.,POS.11,TRIM01&ZQM
main87910-WC069i202107
NO PAINT REQ.,POS.9,TRIM12&ZYR
main87910-WC070i202107
NO PAINT REQ.,POS.9,TRIM14&ZZP
main87910-WC077i202107
NO PAINT REQ.,POS.18,TRIM11&Z7Q
main87910-WC078i202107
NO PAINT REQ.,POS.31,TRIM07&ZAM
main87910-WC079i202107
NO PAINT REQ.,POS.20,TRIM03&ZQK
main87910-WC080i202107
NO PAINT REQ.,POS.20,TRIM02&ZQL
main87910-WC081i202107
NO PAINT REQ.,POS.31,TRIM01&ZQM
main87910-WC082i202107
NO PAINT REQ.,POS.33,TRIM12&ZYR
main87910-WC083i202107
NO PAINT REQ.,POS.29,TRIM14&ZZP
main87910-WC264i202107
POS.27,TRIM11&Z7Q
main87910-WC265i202107
POS.19,TRIM07&ZAM
main87910-WC266i202107
POS.16,TRIM03&ZQK
main87910-WC267i202107
POS.32,TRIM02&ZQL
main87910-WC268i202107
POS.34,TRIM01&ZQM
main87910-WC269i202107
POS.32,TRIM12&ZYR
main87910-WC270i202107
POS.21,TRIM14&ZZP
main87910-WC271i202107
POS.32,TRIM11&Z7Q
main87910-WC272i202211
POS.14,TRIM09&ZHJ
main87910-WC273i202211
POS.30,TRIM15&WBE
main87910-WC274i202211
POS.19,TRIM16&WBF
main87910-WC275i202211
POS.30,TRIM13&WBH
main87910-WC276i202211
POS.14,TRIM08&WBG
main87910-WC277i202107
POS.25,TRIM03&ZQK
main87910-WC278i202107
POS.12,TRIM02&ZQL
main87910-WC279i202107
POS.12,TRIM01&ZQM
main87910-WC280i202107
POS.25,TRIM12&ZYR
main87910-WC281i202107
POS.12,TRIM14&ZZP
main87910-WC282i202211
POS.10,TRIM09&ZHJ
main87910-WC283i202211
POS.27,TRIM15&WBE
main87910-WC284i202211
POS.25,TRIM16&WBF
main87910-WC285i202211
POS.27,TRIM13&WBH
main87910-WC286i202211
POS.12,TRIM08&WBG
87915COVER, OUTER MIRROR, RH
main87915-WC028i202107
NO PAINT REQ.,POS.32,TRIM11&Z7Q
main87915-WC029i202107
NO PAINT REQ.,POS.31,TRIM07&ZAM
main87915-WC030i202107
NO PAINT REQ.,POS.32,TRIM03&ZQK
main87915-WC031i202107
NO PAINT REQ.,POS.36,TRIM02&ZQL
main87915-WC032i202107
NO PAINT REQ.,POS.29,TRIM01&ZQM
main87915-WC033i202205-202310
NO PAINT REQ.,POS.17,TRIM12&ZYR
main87915-WC034i202107
NO PAINT REQ.,POS.16,TRIM14&ZZP
main87915-WC076i202211-202310
POS.17,TRIM16&WBF
main87915-WC077i202211
POS.26,TRIM08&WBG
main87915-WC078i202211-202310
POS.28,TRIM09&ZHJ
main87915-WC079i202211
POS.11,TRIM13&WBH
main87915-WC080i202211-202310
POS.22,TRIM15&WBE
87931OUTER MIRROR, RH
main87931-WC003i202107
POS.24
main87931-WC004i202107
POS.30
87940MIRROR ASSY, OUTER REAR VIEW, LH
main87940-WC065i202107
NO PAINT REQ.,POS.24,TRIM11&Z7Q
main87940-WC066i202107
NO PAINT REQ.,POS.26,TRIM03&ZQK
main87940-WC067i202107
NO PAINT REQ.,POS.24,TRIM02&ZQL
main87940-WC068i202107
NO PAINT REQ.,POS.11,TRIM01&ZQM
main87940-WC069i202107
NO PAINT REQ.,POS.9,TRIM12&ZYR
main87940-WC070i202107
NO PAINT REQ.,POS.9,TRIM14&ZZP
main87940-WC077i202107
NO PAINT REQ.,POS.18,TRIM11&Z7Q
main87940-WC078i202107
NO PAINT REQ.,POS.33,TRIM07&ZAM
main87940-WC079i202107
NO PAINT REQ.,POS.20,TRIM03&ZQK
main87940-WC080i202107
NO PAINT REQ.,POS.20,TRIM02&ZQL
main87940-WC081i202107
NO PAINT REQ.,POS.31,TRIM01&ZQM
main87940-WC082i202107
NO PAINT REQ.,POS.33,TRIM12&ZYR
main87940-WC083i202107
NO PAINT REQ.,POS.29,TRIM14&ZZP
main87940-WC264i202107
POS.21,TRIM14&ZZP
main87940-WC265i202107
POS.19,TRIM07&ZAM
main87940-WC266i202107
POS.16,TRIM03&ZQK
main87940-WC267i202107
POS.32,TRIM02&ZQL
main87940-WC268i202107
POS.34,TRIM01&ZQM
main87940-WC269i202107
POS.32,TRIM12&ZYR
main87940-WC270i202205-202310
POS.22,TRIM11&Z7Q
main87940-WC271i202211
POS.14,TRIM09&ZHJ
main87940-WC272i202211
POS.30,TRIM15&WBE
main87940-WC273i202211
POS.19,TRIM16&WBF
main87940-WC274i202211
POS.30,TRIM13&WBH
main87940-WC275i202211
POS.19,TRIM08&WBG
main87940-WC276i202107
POS.25,TRIM03&ZQK
main87940-WC277i202107
POS.12,TRIM02&ZQL
main87940-WC278i202107
POS.12,TRIM01&ZQM
main87940-WC279i202107
POS.25,TRIM12&ZYR
main87940-WC280i202107
POS.12,TRIM14&ZZP
main87940-WC281i202107
POS.27,TRIM11&Z7Q
main87940-WC282i202107
POS.27,TRIM09&ZHJ
main87940-WC283i202107
POS.27,TRIM15&WBE
main87940-WC284i202107
POS.25,TRIM16&WBF
main87940-WC285i202107
POS.27,TRIM13&WBH
main87940-WC286i202107
POS.12,TRIM08&WBG
87945COVER, OUTER MIRROR, LH
main87945-WC028i202107
NO PAINT REQ.,POS.32,TRIM11&Z7Q
main87945-WC029i202107
NO PAINT REQ.,POS.31,TRIM07&ZAM
main87945-WC030i202107
NO PAINT REQ.,POS.32,TRIM03&ZQK
main87945-WC031i202107
NO PAINT REQ.,POS.36,TRIM02&ZQL
main87945-WC032i202107
NO PAINT REQ.,POS.29,TRIM01&ZQM
main87945-WC033i202107
NO PAINT REQ.,POS.25,TRIM12&ZYR
main87945-WC034i202107
NO PAINT REQ.,POS.16,TRIM14&ZZP
main87945-WC076i202211
POS.34,TRIM16&WBF
main87945-WC077i202211
POS.26,TRIM08&WBG
main87945-WC078i202211
POS.27,TRIM09&ZHJ
main87945-WC079i202211
POS.11,TRIM13&WBH
main87945-WC080i202211
POS.24,TRIM15&WBE
87961MIRROR OUTER, LH
main87961-WC003i202107
POS.24
main87961-WC004i202205-202310
POS.28
90118WC077
main90118-WC077

13 parts on this diagram · 1 diagram in section
