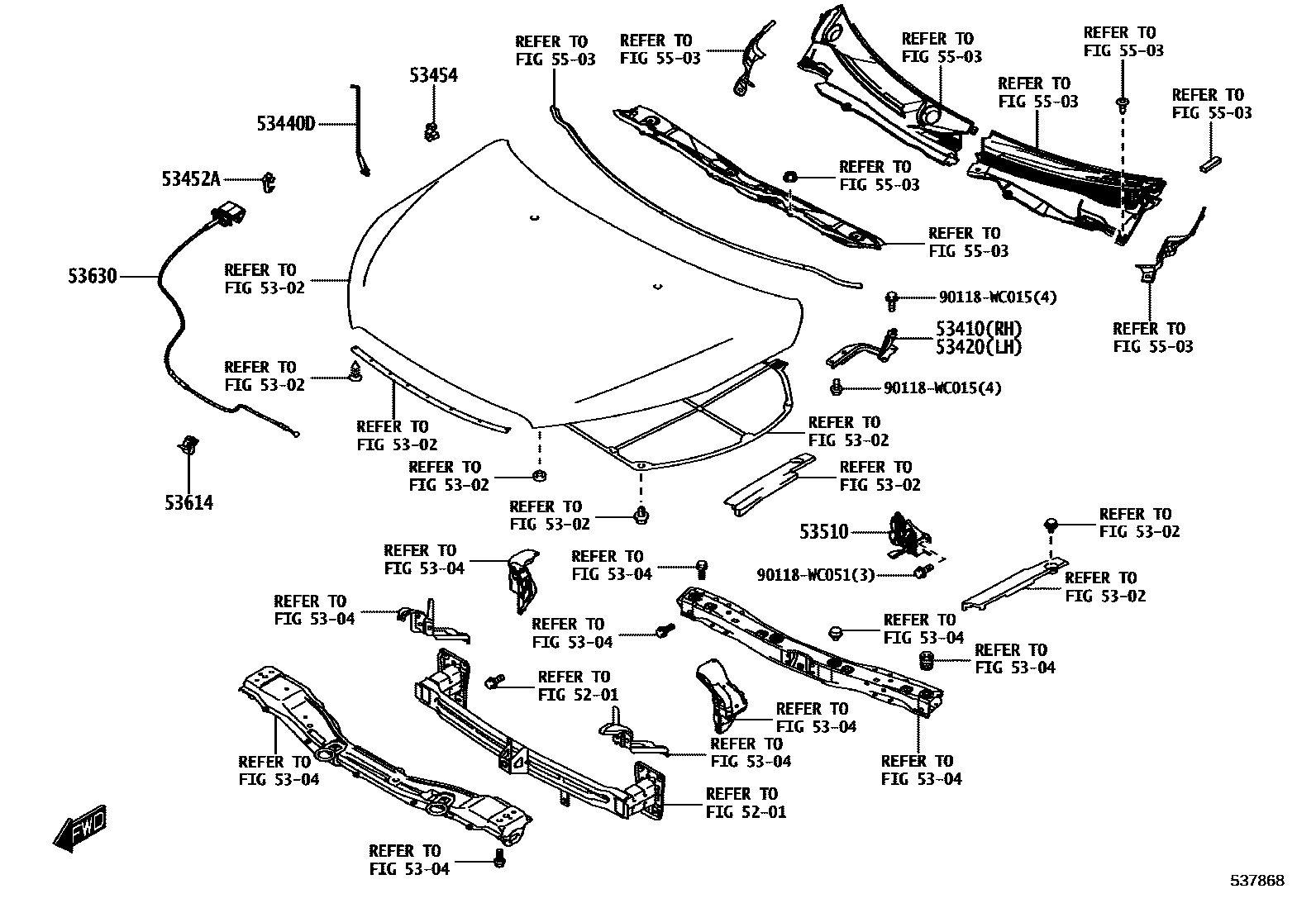

Toyota BELTA — HOOD LOCK & HINGE

5201

5302

5304

53410HINGE ASSY, HOOD, RH

main53410-WC003

53420HINGE ASSY, HOOD, LH

main53420-WC003

53440DSUPPORT ASSY, HOOD

53452AHOLDER, HOOD STAY

53454CLIP, HOOD SUPPORT ROD

main53454-WC001

53510LOCK ASSY, HOOD

main53510-WC008

main53510-WC009

53614CLAMP, HOOD LOCK CONTROL CABLE

main53614-WC001

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-WC003

5503

90118WC015

main90118-WC015

90118WC051

main90118-WC051

14 parts on this diagram · 1 diagram in section
