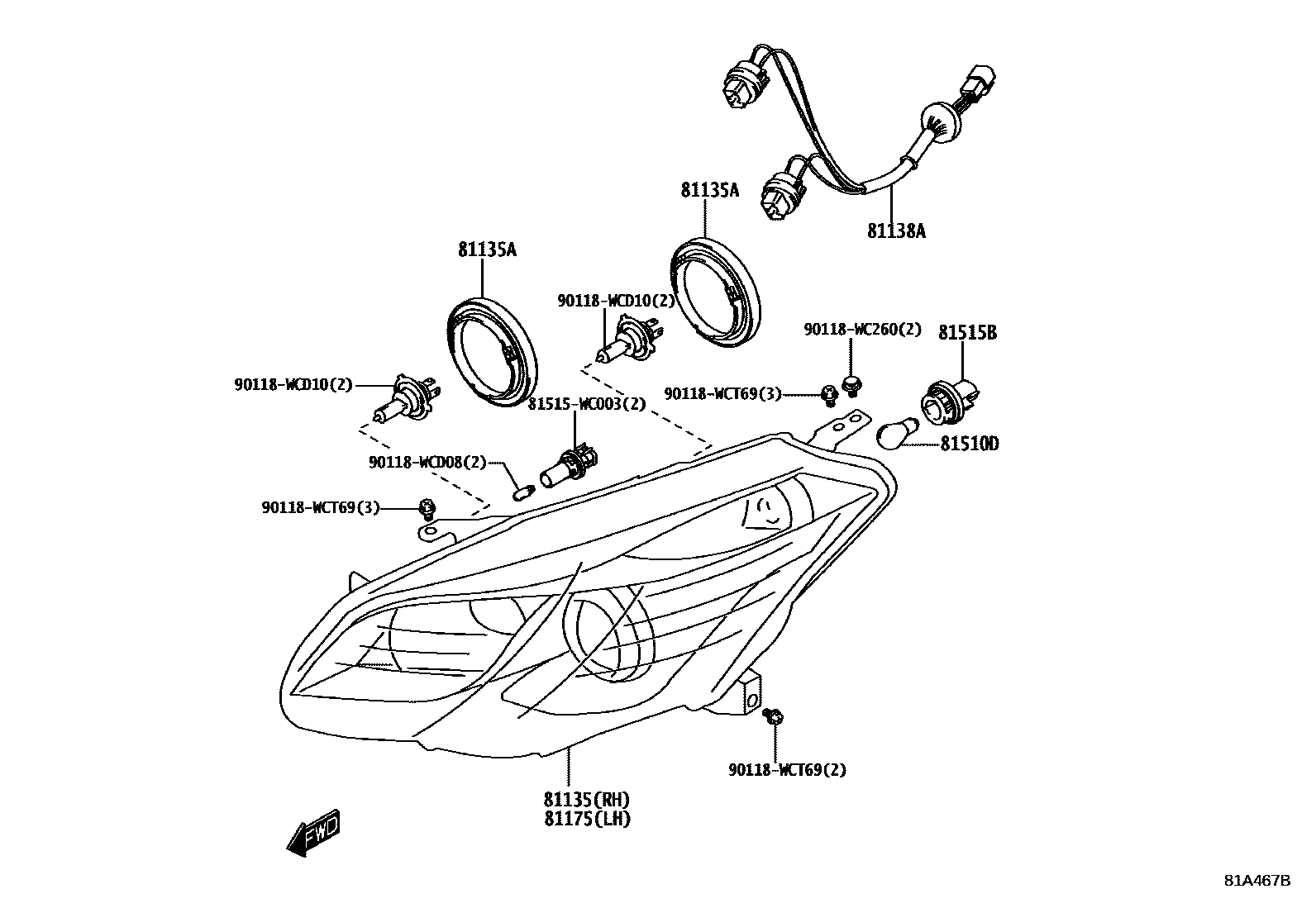

Toyota BELTA — HEADLAMP

0001 1HALOGEN HEADLAMP 0002 1LED HEADLAMP

81135UNIT ASSY, HEADLAMP, RH

main81135-WC001

main81135-WC002

main81130-WC008

main81130-WC009

main81130-WC010

main81130-WC011

81135ACAP, LOCKING

81138ASOCKET & WIRE, HEADLAMP

81175UNIT ASSY, HEADLAMP, LH

main81170-WC006

main81170-WC007

main81170-WC008

main81170-WC011

81510DBULB (FOR FRONT TURN SIGNAL LAMP)

81515BSOCKET, FRONT TURN SIGNAL LAMP

81515WC003WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY

main81515-WC003

90118WC260

main90118-WC260

90118WCD08

main90118-WCD08

90118WCD10

main90118-WCD10

90118WCT69

main90118-WCT69

11 parts on this diagram · 2 diagrams in section
