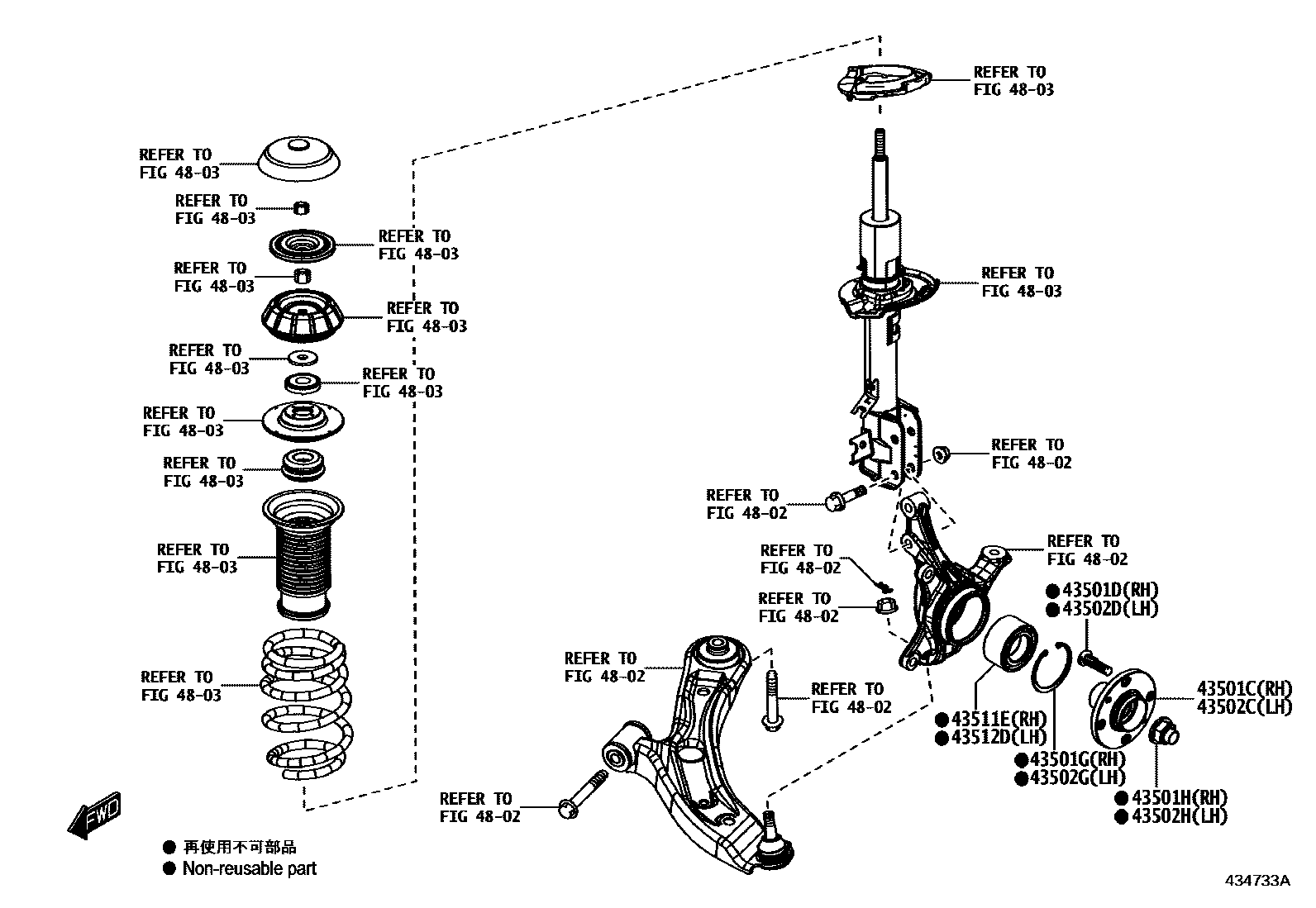

Toyota BELTA — FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

43501DBOLT, HUB (FOR FRONT AXLE RH)

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

43501HNUT (FOR FRONT AXLE SHAFT RH)

43502CHUB SUB-ASSY, FRONT AXLE, LH

43502DBOLT, HUB (FOR FRONT AXLE LH)

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

43502HNUT (FOR FRONT AXLE SHAFT LH)

43511EBEARING (FOR FRONT AXLE HUB RH)

43512DISC, FRONT

main43512-WC006

main90118-WCD58

43512DBEARING (FOR FRONT AXLE HUB LH)

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

4803FRONT SPRING & SHOCK ABSORBER

→ Go to FIG 48-03

13 parts on this diagram · 2 diagrams in section

FRONT AXLE HUB for Toyota BELTA

This section contains 14 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota BELTA. Key components include: HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), RING, HOLE SNAP (FOR FRONT AXLE HUB RH), NUT (FOR FRONT AXLE SHAFT RH), HUB SUB-ASSY, FRONT AXLE, LH.
