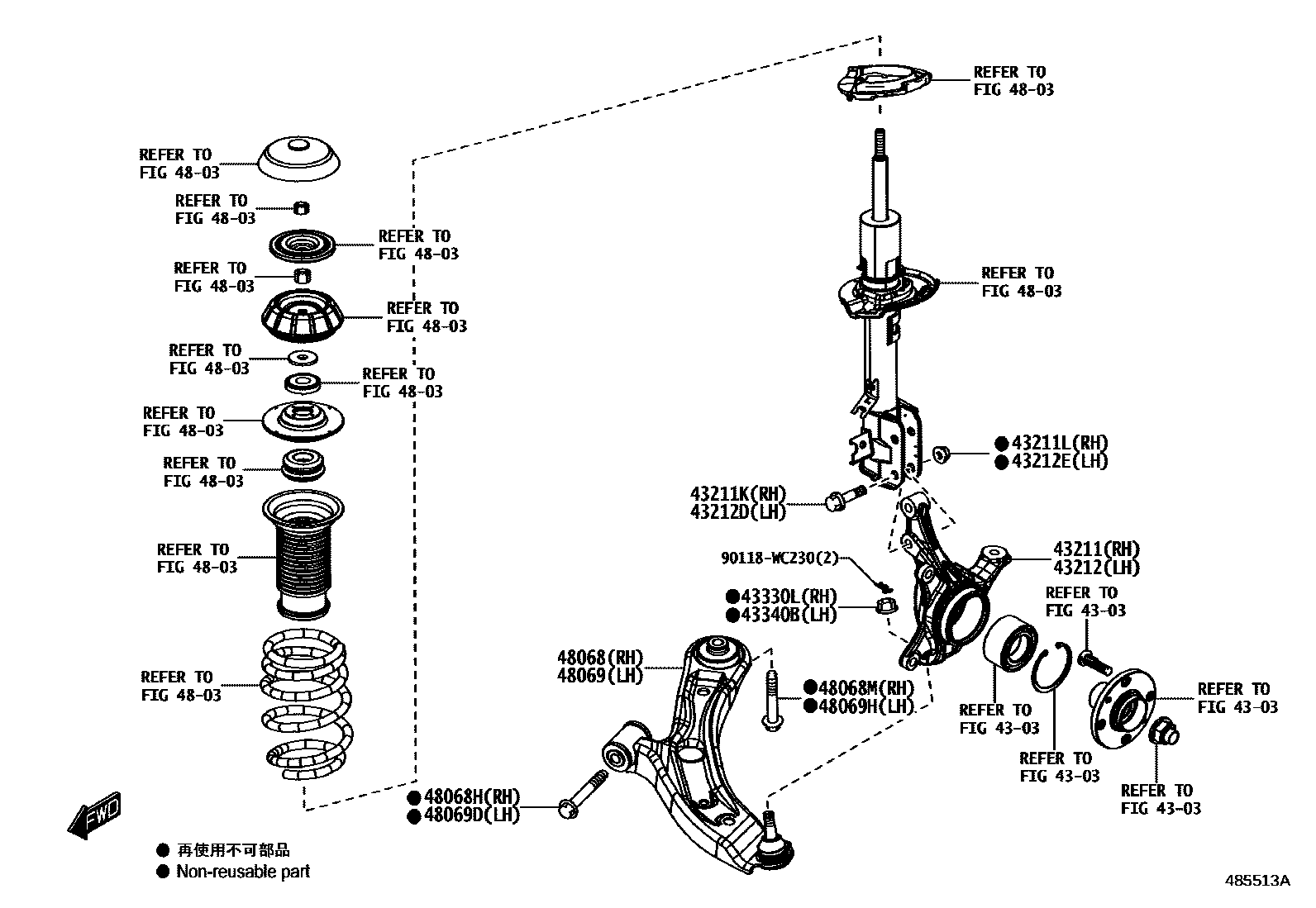

Toyota BELTA — FRONT AXLE ARM & STEERING KNUCKLE

4303

43211KNUCKLE, STEERING, RH

main43211-WC005

main90118-WC488

main90118-WCG05

43211KBOLT (FOR STEERING KNUCKLE RH)

43211LNUT (FOR STEERING KNUCKLE RH)

43212KNUCKLE, STEERING, LH

main43212-WC005

main90118-WC488

main90118-WCG05

43212DBOLT (FOR STEERING KNUCKLE LH)

43212ENUT (FOR STEERING KNUCKLE LH)

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-WC007

main90118-WC871

main90118-WCT59

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-WC007

main90118-WC871

main90118-WCT59

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

90118WC230

main90118-WC230

17 parts on this diagram · 1 diagram in section
