Toyota BELTA — CAMSHAFT & VALVE

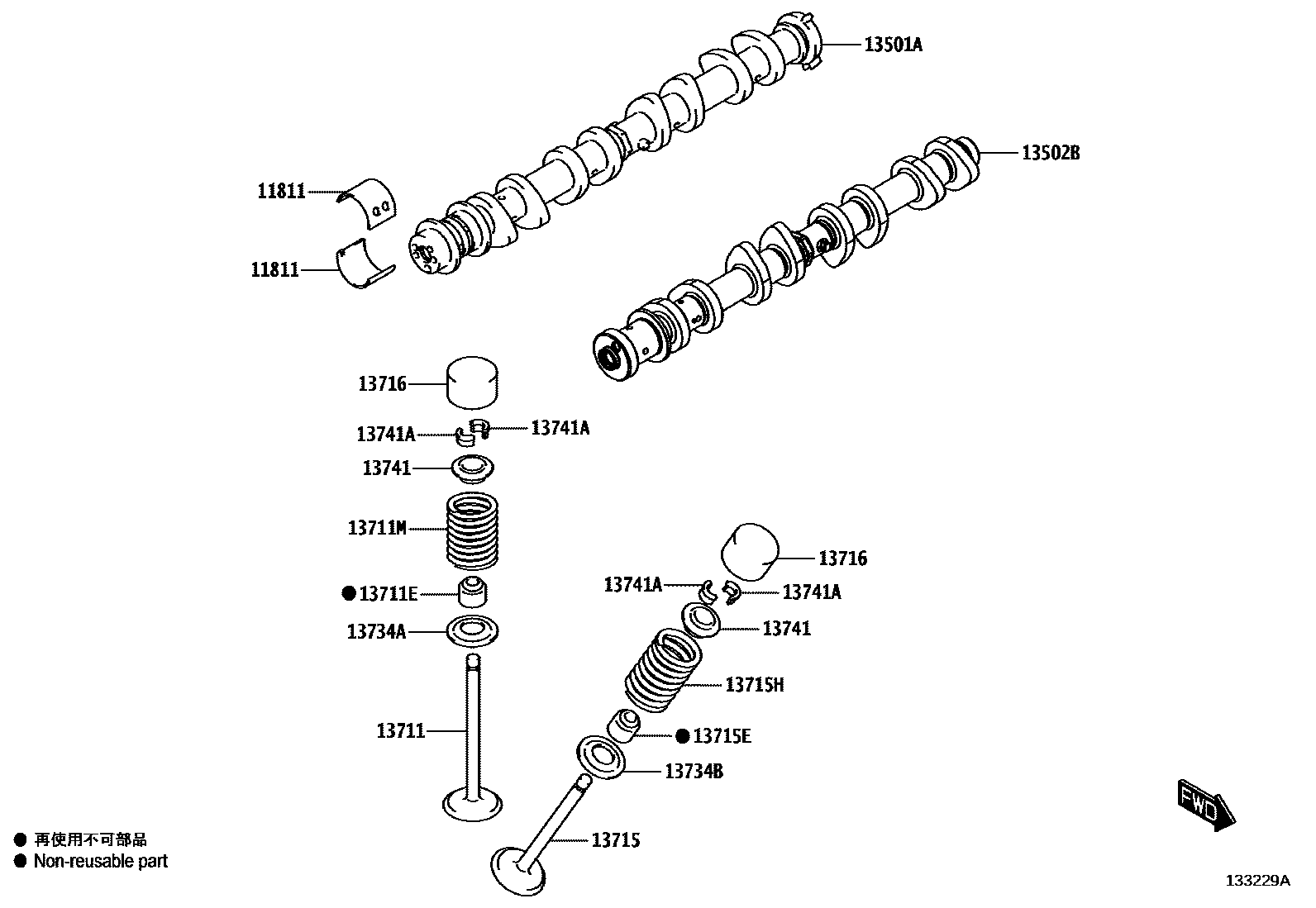

Parts diagram

11811BEARING, CAMSHAFT, NO.1

main11811-WC001

13501ACAMSHAFT SUB-ASSY, INTAKE

13502BCAMSHAFT SUB-ASSY, EXHAUST

13711VALVE, INTAKE

main13711-WC004

main90118-WC319

main90118-WC692

13711ESEAL, INTAKE VALVE STEM OIL

13711MSPRING, COMPRESSION(FOR INTAKE VALVE)

13715VALVE, EXHAUST

main13715-WC004

main90118-WC319

main90118-WC692

13715ESPRING, COMPRESSION(FOR LH EXHAUST VALVE)

13715HSPRING, COMPRESSION(FOR EXHAUST VALVE)

13734ASEAT, INTAKE VALVE SPRING

13734BSEAT, EXHAUST VALVE SPRING

13741RETAINER, VALVE SPRING

main13741-WC001

main90118-WC318

13741ALOCK, VALVE SPRING RETAINER

14 parts on this diagram · 2 diagrams in section
