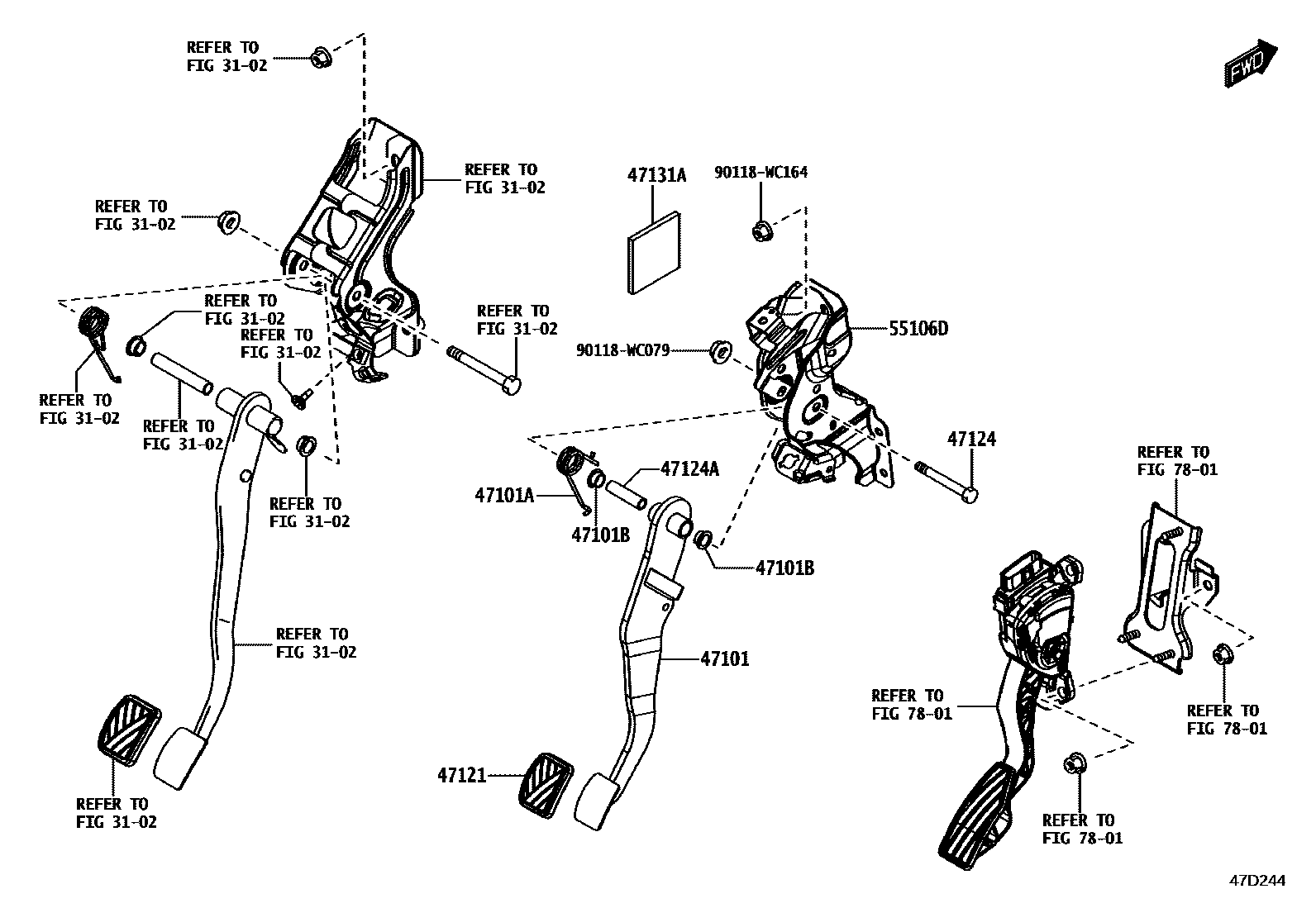

Toyota BELTA — BRAKE PEDAL & BRACKET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

3102

47101PEDAL SUB-ASSY, BRAKE

main47101-WC007

main47101-WC008

main47101-WC009

main47101-WC010

main90118-WC219

main90118-WCD65

47101ASPRING(FOR BRAKE PEDAL RETURN)

47101BBUSH(FOR BRAKE PEDAL)

47121PAD, BRAKE PEDAL

main47121-WC002

main47121-WC003

47124SHAFT, BRAKE PEDAL

main90118-WC538

main90118-WCD66

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

47131ACUSHION(FOR BRAKE PADAL STOPPER)

55106DBRACKET SUB-ASSY, PEDAL

7801

90118WC079

main90118-WC079

90118WC164

main90118-WC164

12 parts on this diagram · 8 diagrams in section
