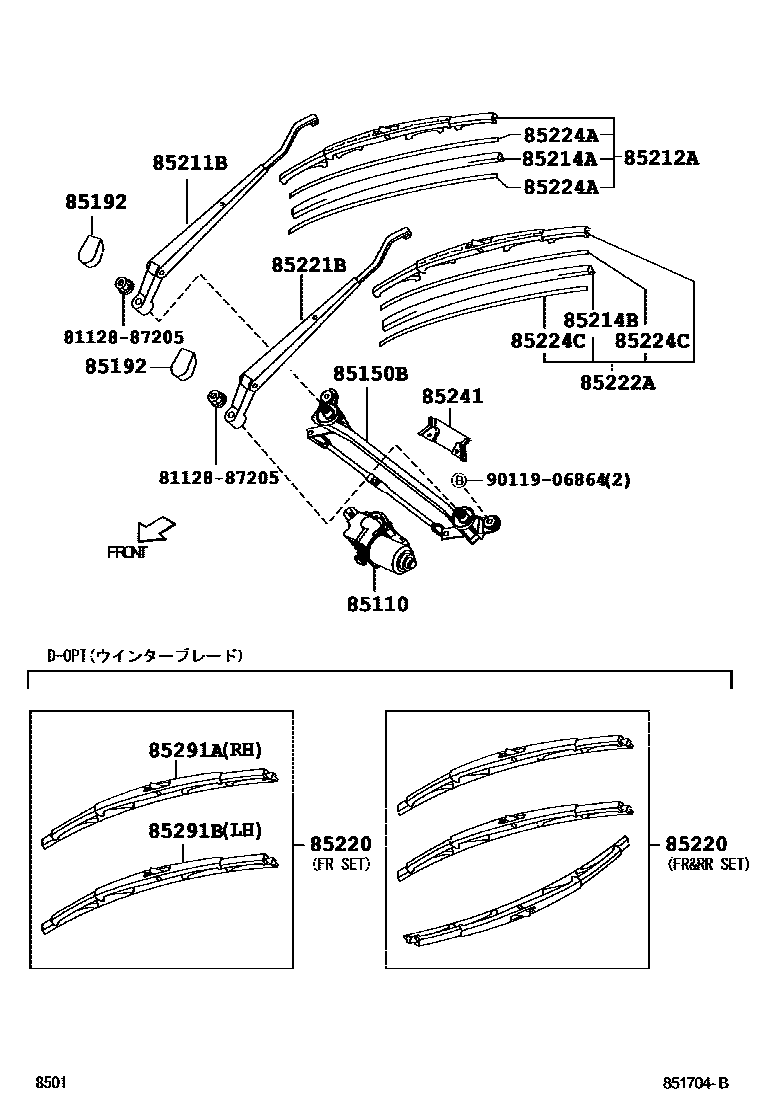

Toyota BB — WINDSHIELD WIPER
85110MOTOR ASSY, WINDSHIELD WIPER
sub85110-B2270
85150BLINK ASSY, WIPER
85192COVER, WINDSHIELD WIPER ARM
85211BARM, FRONT WIPER, RH
85212ABLADE, FR WIPER, RH
85214ARUBBER, WIPER, RH
sub85214-B5020
85214BRUBBER, WIPER, LH
85220BLADE ASSY, WINDSHIELD WIPER
85221BARM, FRONT WIPER, LH
85222ABLADE, FR WIPER, LH
85224APLATE, WIPER RUBBER BACKING, NO.1
85224CPLATE, WIPER RUBBER BACKING, NO.3
85241COVER, WINDSHIELD WIPER
85291ABLADE, FRONT WIPER, WINTER, RH
85291BBLADE, FRONT WIPER, WINTER, LH
8112887205NUT, HEADLAMP
main81128-87205
9011906864
main90119-06864
17 parts on this diagram · 1 diagram in section
