Toyota BB — SWITCH & RELAY & COMPUTER

0001 1�����&��������� 0002 1�������� 0003 1��� 0004 1������������ 0005 1���&��� 0006 1�������

1702

1703

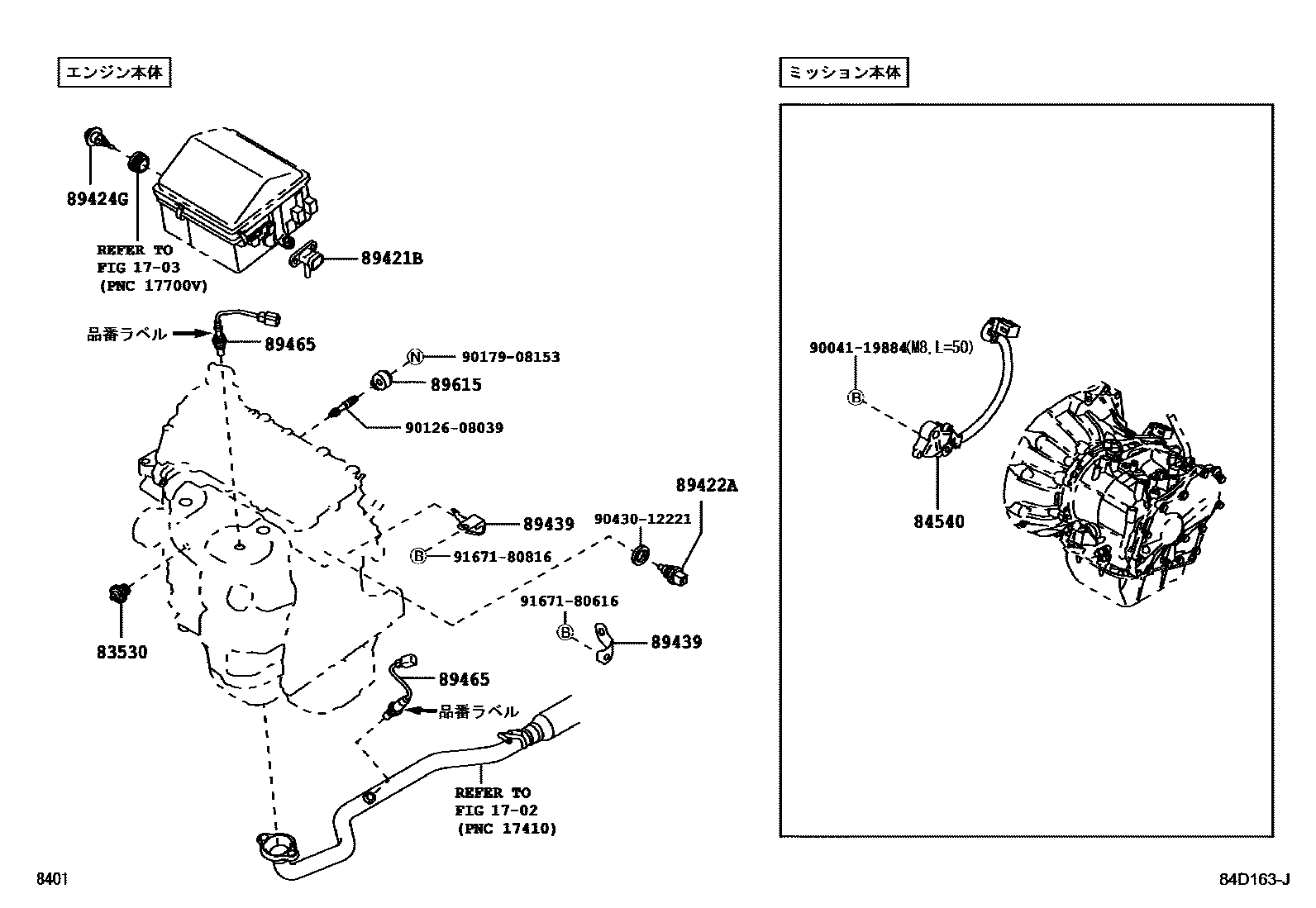

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-97401iQNC25200809-201409

84540SWITCH ASSY, NEUTRAL START

main84540-97203iQNC2#200601-200809

main84540-B1020iQNC25201105-201409

89421BSENSOR, VACUUM

main89421-B1010iQNC2#200601-200809

89422ASENSOR, WATER TEMPERATURE

main89422-33030iQNC2#200601-200809

89424GSENSOR, INLET AIR TEMPERATURE

main89424-87703iQNC2#200601-200809

89439BRACKET, SENSOR

main89439-B1010iQNC20,21200601-200809

main89439-B1020iQNC2#200601-200606

main89439-B1050iQNC20,21200809

89465SENSOR, OXYGEN

main89465-B1010iQNC2#200601-200809

main89465-B1040iQNC2#200601-200809

main89465-B1100iQNC25201007-201409

main89465-B1160iQNC20,21201007

89615SENSOR, KNOCK CONTROL

main89615-20090iQNC2#200601-200809

9004119884

main90041-19884

9012608039

main90126-08039

9017908153

main90179-08153

9043012221

main90430-12221

9167180616

main91671-80616

9167180816

main91671-80816

16 parts on this diagram · 6 diagrams in section
