Toyota BB — STEERING COLUMN & SHAFT

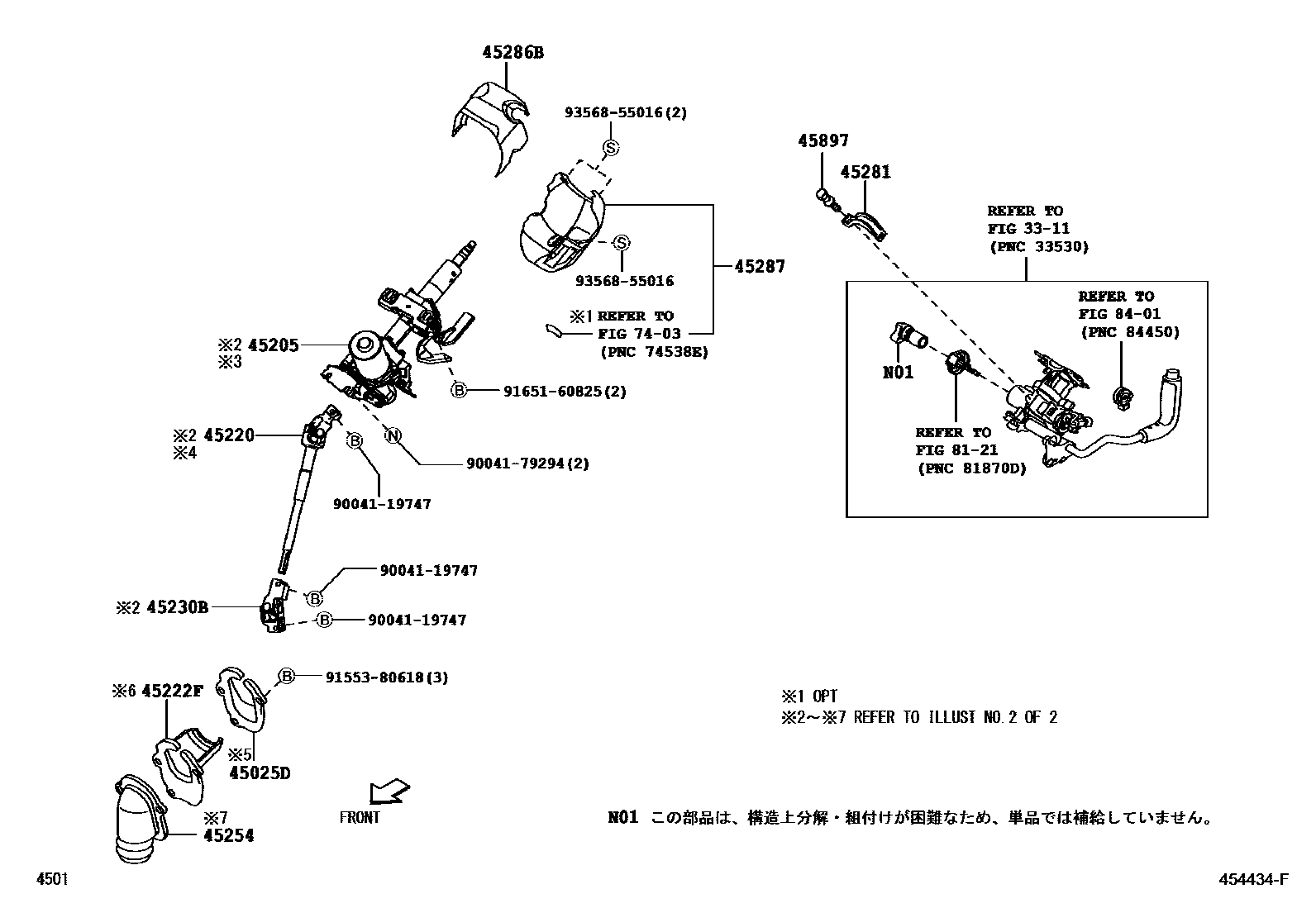

Parts diagram

3311CONTROL SHAFT & CROSSSHAFT

→ Go to FIG 33-11

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45223-B1010i200809-201001

main45223-B1011i201001-201409

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-B1120i200601-200809

main45205-B1160i201001-201409

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-B1070i200601-200709

main45220-B1090i200709-200809

main45220-B1120i201001-201409

45222FCOVER, DUST

main45222-B1010i200601-200809

main45222-B1011i201001-201409

45230BJOINT ASSY, STEERING SHAFT UNIVERSAL

main45290-B1050i200601-200709

main45290-B1051i200809-201001

main45290-B1052i201001-201605

main45290-B1053i201606

45254SHIELD, STEERING COLUMN HOLE

main45254-B1010i200601-200809

main45254-B1011i201001-201403

main45254-B1030i201404-201409

45281HOUSING, STEERING COLUMN

main45281-B2010i200809-201409

45286BCOVER, STEERING COLUMN, UPR

main45286-B1050-B0i200601-200809

DK.GRAY,TRIM1#

45287COVER, STEERING COLUMN, LWR

main45287-B1040-B0i200809-201607

DK.GRAY,TRIM1#,4#

main45287-B1050-B0i200601-200610

45897BOLT, STEERING LOCK SET

main45897-B2010i200601-200809

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

8121INTERIOR LAMP

→ Go to FIG 81-21

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9004119747

main90041-19747

9004179294

main90041-79294

9155380618

main91553-80618

9165160825

main91651-60825

9356855016

main93568-55016

19 parts on this diagram · 2 diagrams in section

STEERING COLUMN & SHAFT for Toyota BB

This section contains 20 genuine Toyota parts for the STEERING COLUMN & SHAFT system of the Toyota BB. Key components include: CONTROL SHAFT & CROSSSHAFT, COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1, FRONT STEERING GEAR & LINK, TUBE SUB-ASSY, STEERING COLUMN, SHAFT ASSY, STEERING INTERMEDIATE.
