Toyota BB — STARTER

0001 10.8KW 0002 10.8KW 0003 11.0KW 0004 11.0KW

28011CLUTCH SUB-ASSY, STARTER

main28011-87101supersedes 28011-87509iK3VE..QNC25201110-201409

28100STARTER ASSY

main28100-97214supersedes 28100-B1060iK3VE,3SZVE..QNC20,21200809

28110HOUSING ASSY, STARTER DRIVE

main28110-97209supersedes 28110-97208iK3VE,3SZVE..QNC2#200601-200809

28110ABEARING(FOR STARTER HOUSING)

main28277-87201supersedes 28277-87201iK3VE..QNC25200809-201409

28113LEVER, STARTER PINION DRIVE

main28113-87204supersedes 28113-87503iK3VE,3SZVE..QNC2#200601-200809

28120YOKE ASSY, STARTER

main28120-87401iK3VE,3SZVE..QNC20,21201110

main28120-87507iK3VE,3SZVE..QNC2#200809-201110

main28120-97502supersedes 28120-87507iK3VE,3SZVE..QNC20,21200809

28130FRAME ASSY, STARTER COMMUTATOR END

main28133-97205supersedes 28133-97501iK3VE,3SZVE..QNC2#200601-200809

28130CBEARING, STARTER FLANGE

main90099-10183supersedes 28277-87201iK3VE,3SZVE..QNC20,21201110

main28253-87201supersedes 28277-87201iK3VE,3SZVE..QNC2#200809-200911

28140HOLDER ASSY, STARTER BRUSH

main28140-87202supersedes 28149-87501iK3VE..QNC25201110-201409

28141INSULATOR, BRUSH HOLDER

main28141-87501iK3VE,3SZVE..QNC2#200601-200809

28142BRUSH, STARTER

main28142-87204×2supersedes 28142-87504iK3VE..QNC25201110-201409

28143SPRING, STARTER BRUSH

main28143-87202×4supersedes 28143-10020iK3VE..QNC25201110-201409

28150SWITCH ASSY, MAGNET STARTER

main28150-87536supersedes 28150-87208iK3VE..QNC25200809-201409

28160ARMATURE ASSY, STARTER

main28160-10020iK3VE,3SZVE..QNC2#200809-201110

main28160-87207iK3VE..QNC25201110-201409

main28160-87208supersedes 28160-10020iK3VE,3SZVE..QNC20,21200809

28163NUT OR COLLAR, PINION STOP, STARTER

main28163-87202supersedes 28142-87505iK3VE..QNC25201110-201409

28199APROTECTOR, DUST STARTER

2827287501

main28272-87501

2827387501

main28273-87501

2827387502

main28273-87502

2827487501SNAP RING, STARTER, NO.1

main28274-87501

9004179109

main90041-79109

9155281040

main91552-81040

9161261040

main91612-61040

9413000802

main94130-00802

9451100800

main94511-00800

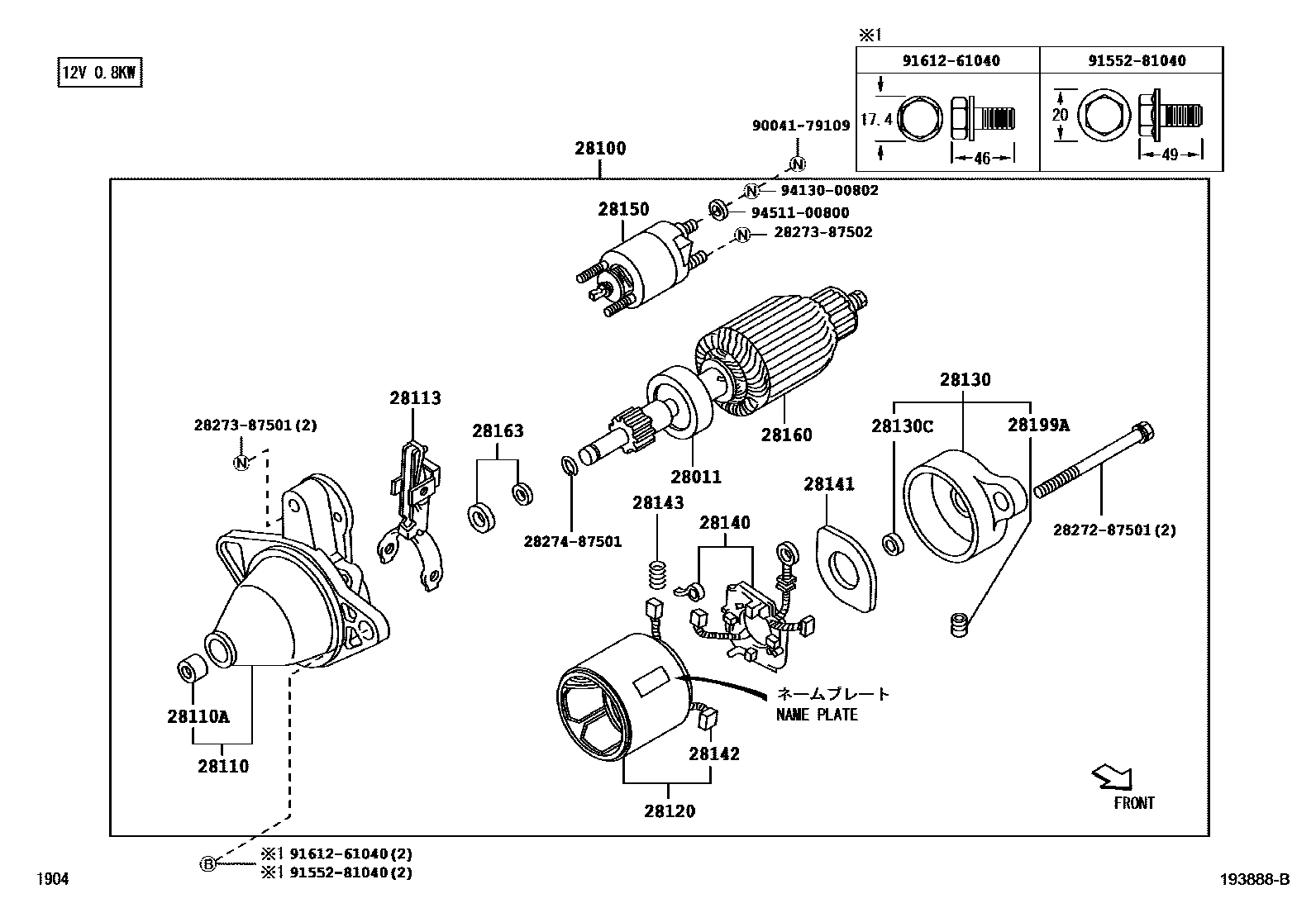

25 parts on this diagram · 4 diagrams in section
