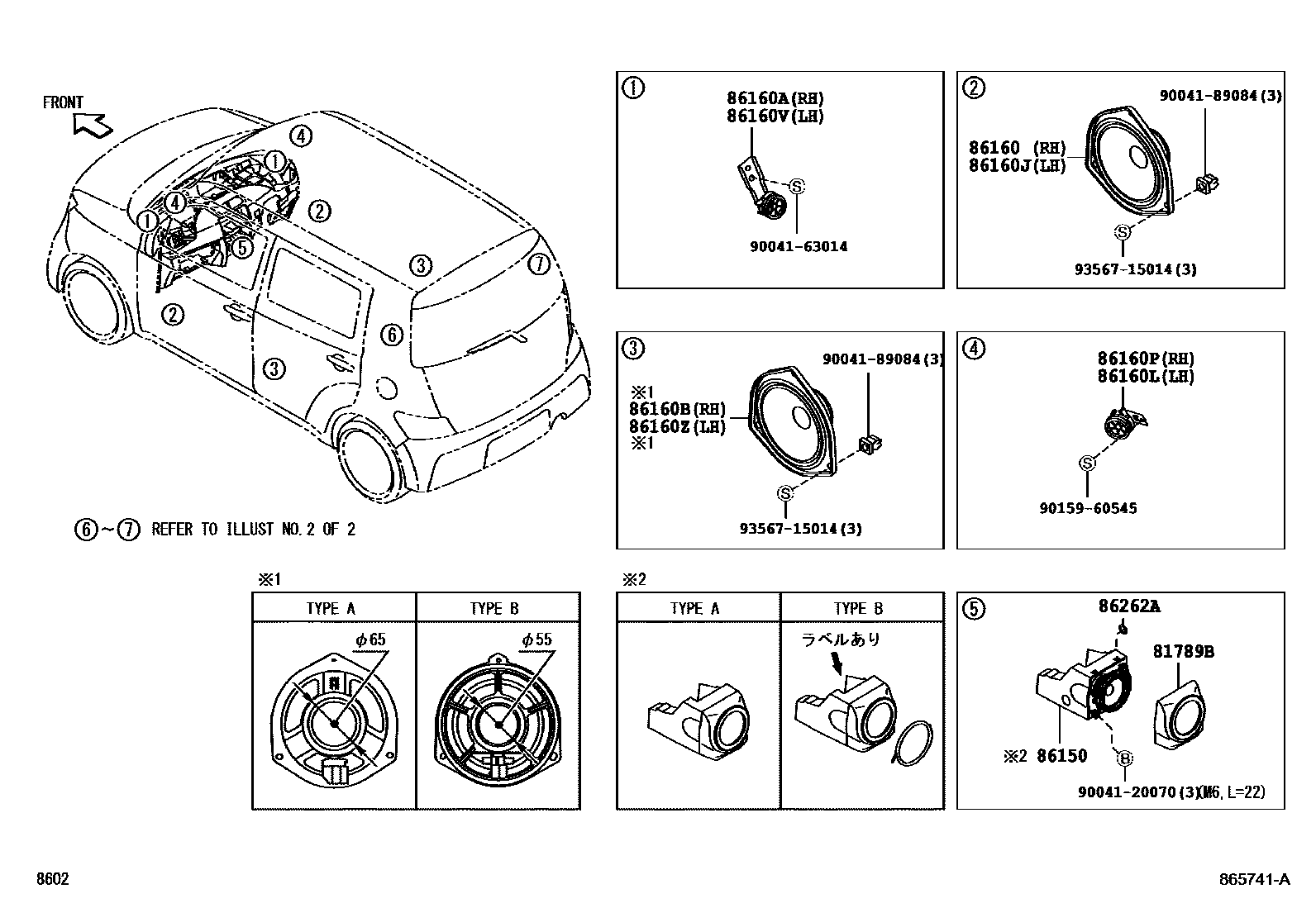

Toyota BB — SPEAKER

0001 1 0002 1

81789BCOVER, SPEAKER

main81789-B1010-B0iQNC20,21;QNC25..Z200809-201302

86150SPEAKER ASSY, W/BOX, NO.1

main86150-B1010-B0iQNC20,21;QNC25..Z200601-200604

main86150-B1011-B0iQNC20,21;QNC25..Z201112-201409

main86150-B1020-B0iQNC20,21;QNC25..Z200601-200604

main86150-B1021-B0iQNC20,21;QNC25..Z201112-201409

86160SPEAKER ASSY, FRONT NO.1

main86160-22A10iQNC2#200601-200809

86160ASPEAKER SET, FRONT

main86160-B1040iQNC2#200601-200809

86160BSPEAKER ASSY, REAR

main86160-B1010iQNC20,21;QNC25..Z200809-201302

main86160-B2420iQNC21,25..Z201403-201409

86160JSPEAKER ASSY, FRONT NO.3

main86160-22A10iQNC2#200601-200809

86160LSPEAKER ASSY, FRONT NO.4

main86160-B1030iQNC20,21;QNC25..Z200601-200809

86160PSPEAKER ASSY, FRONT NO.2

main86160-B1030iQNC20,21;QNC25..Z201302-201607

86160VSPEAKER SET, FRONT NO.2

main86160-B1040iQNC2#200601-200809

86160ZSPEAKER ASSY, REAR NO.3

main86160-B1010iQNC20,21;QNC25..Z200601-200809

main86160-B2420iQNC21,25..Z201403-201409

86262ACOVER, SPEAKER, FRONT

main44689-B1010iQNC20,21;QNC25..Z200601-200809

9004120070

main90041-20070

9004163014

main90041-63014

9004189084

main90041-89084

9015960545

main90159-60545

9356715014

main93567-15014

16 parts on this diagram · 2 diagrams in section
