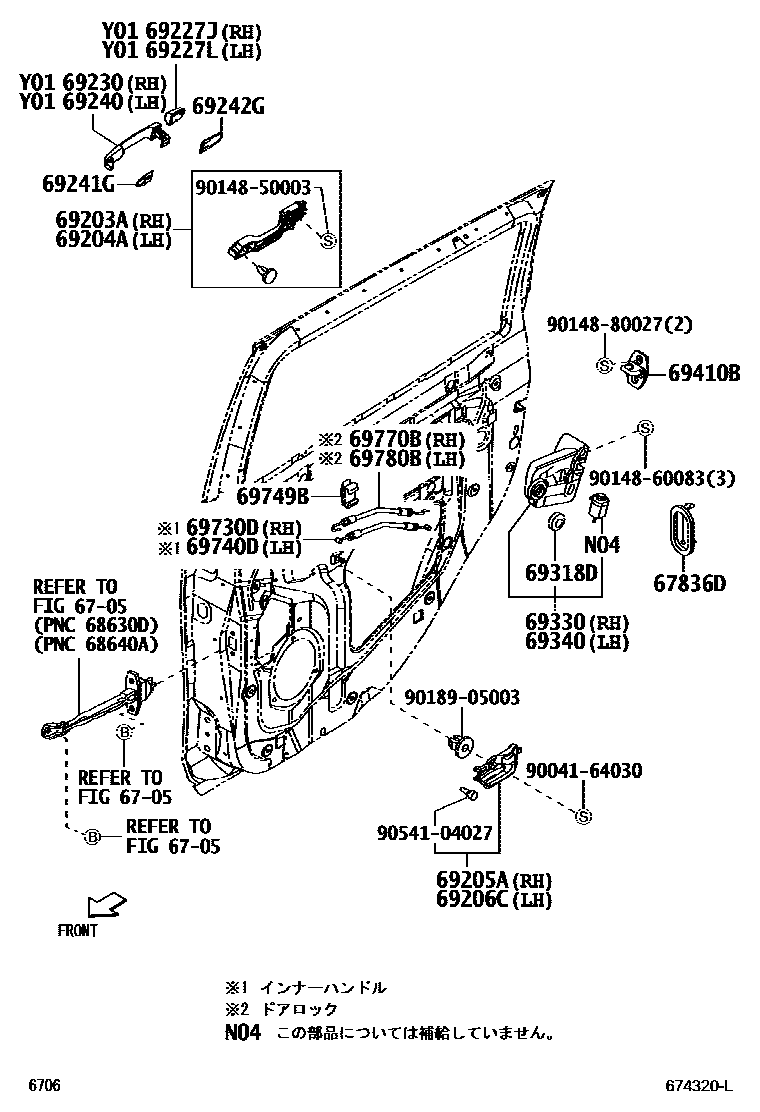

Toyota BB — REAR DOOR LOCK & HANDLE
6705REAR DOOR PANEL & GLASS
67836DCOVER, REAR DOOR LOCK CHILD PROTECTION
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
DK.GRAY,TRIM1#
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
DK.GRAY,TRIM1#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
WHITE PEARL MC.CS,W24
LT.BLUE ME.OP.,B57
CHAMPAGNE ME.,T23
GRAYISH PURPLE ME.OP.,P12
RED,R40
WHITE PEARL.MC.,W16
WHITE,W09
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
WHITE PEARL MC.CS,W24
LT.BLUE ME.OP.,B57
CHAMPAGNE ME.,T23
GRAYISH PURPLE ME.OP.,P12
RED,R40
WHITE PEARL.MC.,W16
BLACK M.M.,X07
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
BLUISH WHITE P.M.,W21
WHITE PEARL MC.CS,W24
GRAY ME.,S30
DK.BLUE M.M.,B42
LT.BLUE ME.OP.,B57
DK.RED.MC,R54
CHAMPAGNE ME.,T23
YELLOW GREEN M.M.,G43
GRAYISH PURPLE ME.OP.,P12
RED,R40
SILVER ME.,S28
WHITE PEARL.MC.,W16
WHITE,W09
BLACK M.M.,X07
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
BLUISH WHITE P.M.,W21
WHITE PEARL MC.CS,W24
GRAY ME.,S30
DK.BLUE M.M.,B42
LT.BLUE ME.OP.,B57
DK.RED.MC,R54
CHAMPAGNE ME.,T23
YELLOW GREEN M.M.,G43
GRAYISH PURPLE ME.OP.,P12
RED,R40
SILVER ME.,S28
WHITE PEARL.MC.,W16
WHITE,W09
BLACK M.M.,X07
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69318DSEAL, DOOR LOCK WIRING HARNESS
69330LOCK ASSY, REAR DOOR, RH
69340LOCK ASSY, REAR DOOR, LH
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69749BCLAMP, REAR DOOR LOCK LINK
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
9004164030
main90041-64030
9014850003
main90148-50003
9014860083
main90148-60083
9014880027
main90148-80027
9018905003
main90189-05003
9054104027
main90541-04027
27 parts on this diagram · 1 diagram in section
REAR DOOR LOCK & HANDLE for Toyota BB
This section contains 27 genuine Toyota parts for the REAR DOOR LOCK & HANDLE system of the Toyota BB. Key components include: REAR DOOR PANEL & GLASS, COVER, REAR DOOR LOCK CHILD PROTECTION, FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH, FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH, HANDLE SUB-ASSY, REAR DOOR INSIDE, RH.
