Toyota BB — PARTIAL ENGINE ASSEMBLY

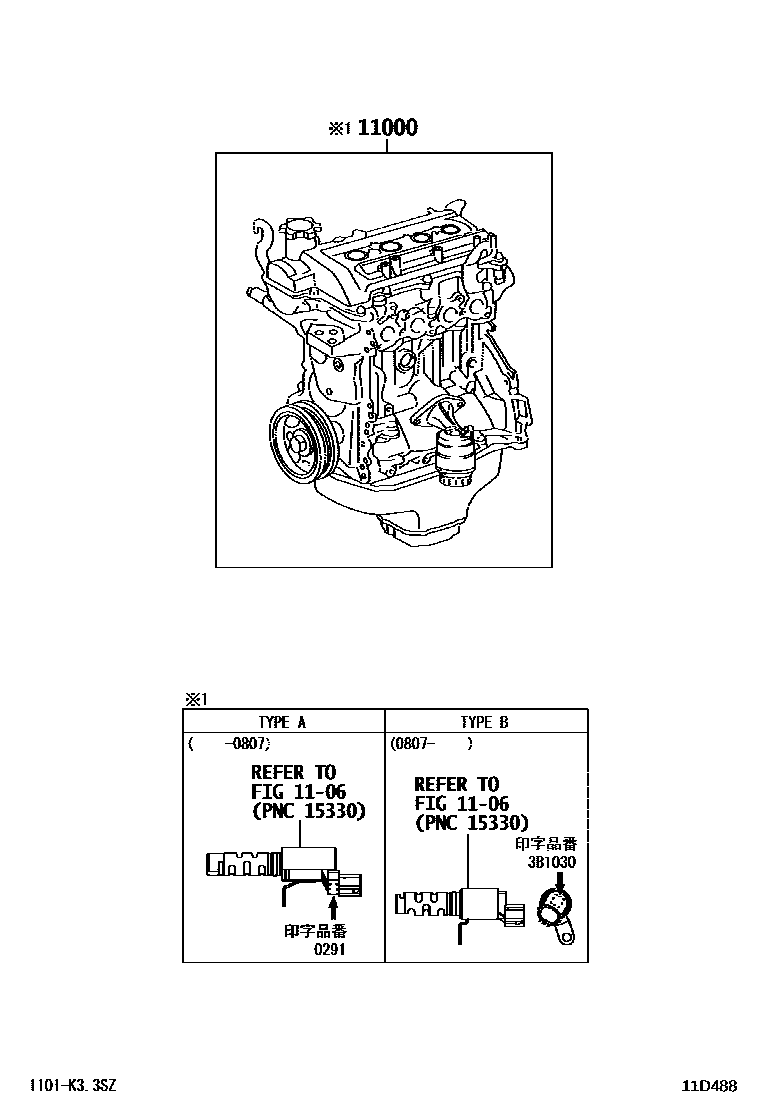

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-B1420i200601-200609
sub19000-B1421
sub15677-B1020
sub91673-10820
main19000-B1480i200701-200712
sub19000-B1481
sub15677-B1020
sub15677-B1030
sub91673-10820
main19000-B1N50i200610-200612
sub19000-B1421
main19000-B1N60i200610-200701
sub19000-B1481
main19000-B1Q31i200801-200807
sub82121-B1024
sub82121-B1182
sub82121-B1213
main19000-B1Q32i200807-200809
main19000-B1Q34i201309-201409
main19000-B1Q40i200701-200711
sub19000-B1421
main19000-B1Q41i200712-200806
main19000-B1Q42i200809-201308
main19000-B1Q43i201309
1106

2 parts on this diagram · 1 diagram in section
