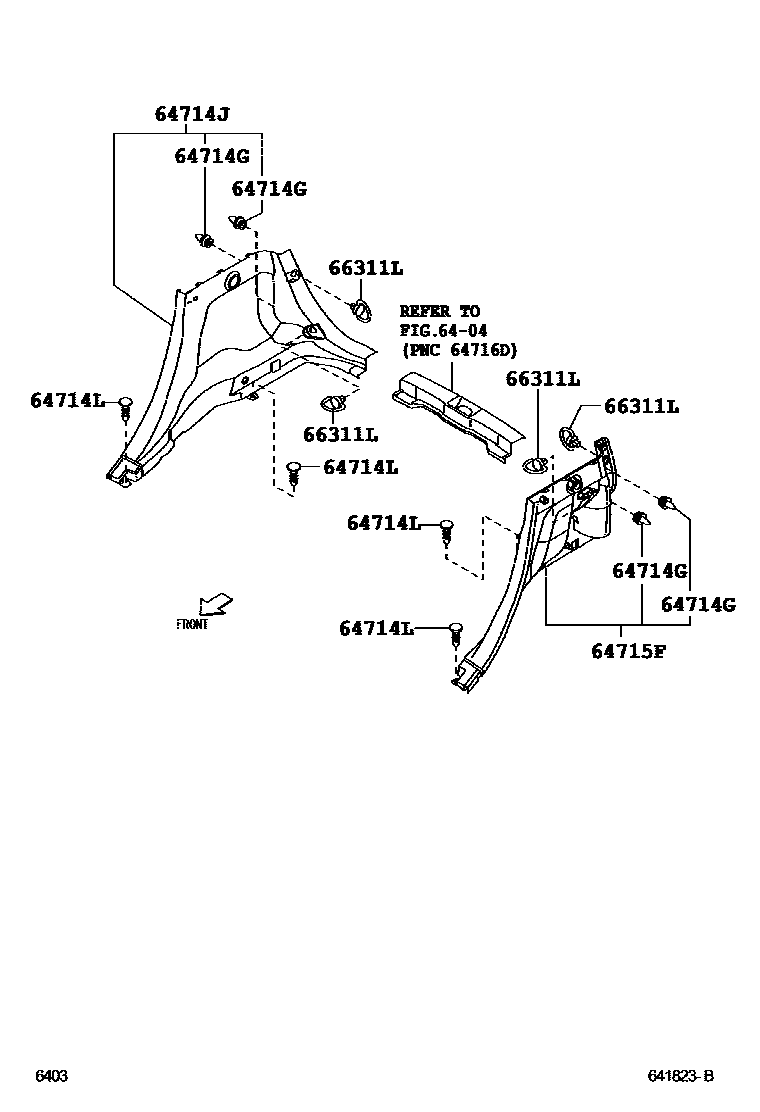

Toyota BB — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

6404DECK BOARD & DECK TRIM COVER

→ Go to FIG 64-04

64714GCLIP(FOR LUGGAGE COMPARTMENT TRIM SIDE COVER)

main67771-B2010×4i200809-201409

64714JCOVER, DECK SIDE TRIM, RH

main62630-B1040-B0supersedes 62630-B1030-B0i200601-200809

main62630-B1050-B0i201112-201302

main62630-B1060-B0i201302-201607

64714LCLIP(FOR DECK TRIM SIDE COVER RH)

main90044-68046-B2×4i201204-201607

DK.GRAY

main90044-68046-N1×4i200601-200809

BLACK

64715FCOVER, DECK SIDE TRIM, LH

main62640-B1050-B0supersedes 62640-B1040-B0i200809-201607

main62640-B1060-B0i201302-201607

main62640-B1070-B0i201302-201607

66311LHOOK,ROPE

main66311-B1010-B0×4i200809-201607

DK.GRAY,TRIM1#,4#

6 parts on this diagram · 1 diagram in section

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT for Toyota BB

This section contains 6 genuine Toyota parts for the PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT system of the Toyota BB. Key components include: DECK BOARD & DECK TRIM COVER, CLIP(FOR LUGGAGE COMPARTMENT TRIM SIDE COVER), COVER, DECK SIDE TRIM, RH, CLIP(FOR DECK TRIM SIDE COVER RH), COVER, DECK SIDE TRIM, LH.
