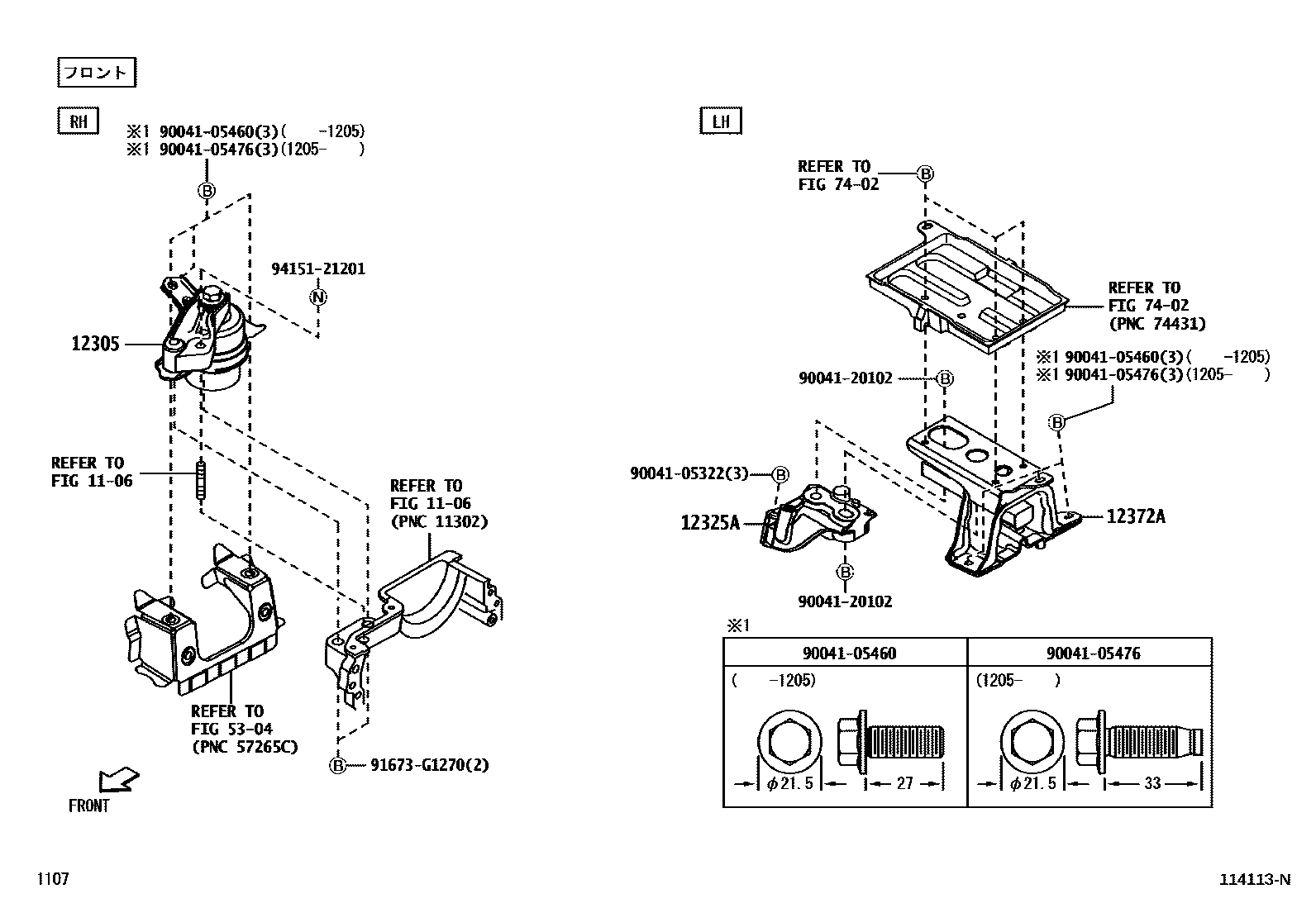

Toyota BB — MOUNTING

0001 1���� 0002 1��

1106

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-B1050iK3VE,3SZVE..QNC2#200601-200806

main12305-B1051iK3VE,3SZVE..QNC2#200807-200809

main12305-B1052iK3VE..QNC25201301-201409

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-B1040iK3VE,3SZVE..QNC2#200601-200804

main12325-B1070iK3VE,3SZVE..QNC2#200805-200809

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12306-B1030iK3VE,3SZVE..QNC2#200601-200809

5304

7402

9004105322

main90041-05322

9004105460

main90041-05460

9004105476

main90041-05476

9004120102

main90041-20102

91673G1270

main91673-G1270

9415121201

main94151-21201

12 parts on this diagram · 2 diagrams in section
