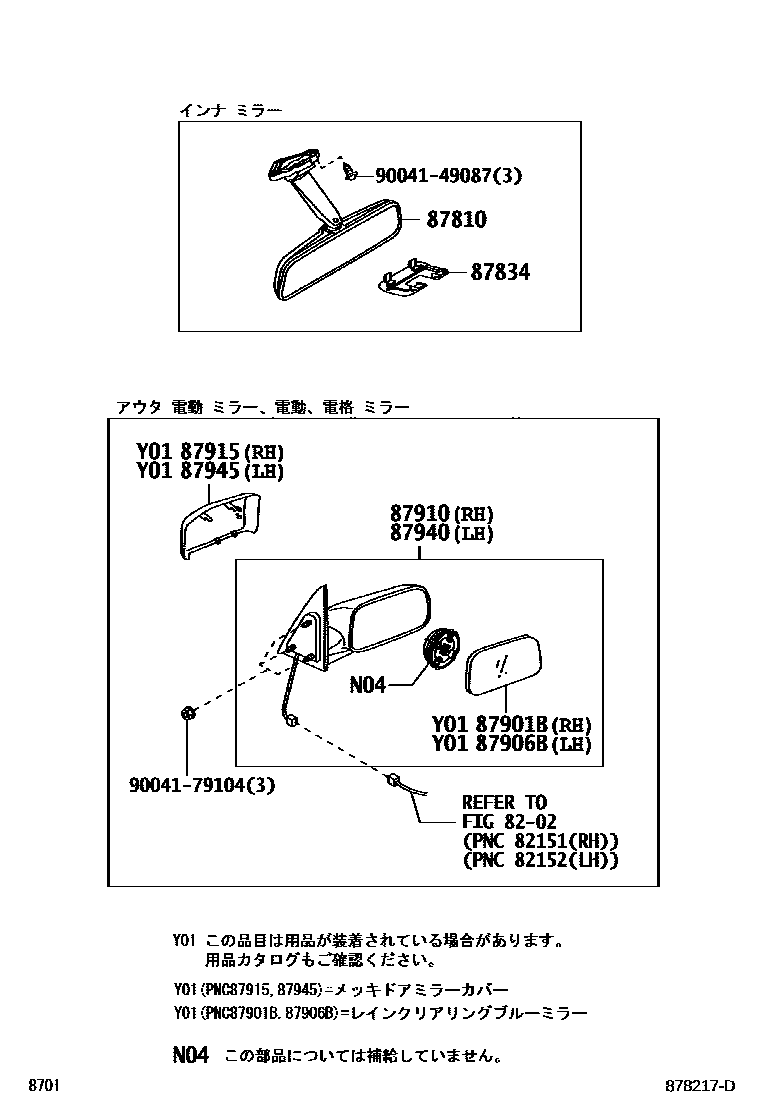

Toyota BB — MIRROR
8202
87810MIRROR ASSY, INNER REAR VIEW
sub87810-B1011
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
DK.GRAY,TRIM1#
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
87915COVER, OUTER MIRROR, RH
WHITE,W09
BLUISH WHITE P.M.,W21
SILVER ME.,S28
GRAY ME.,S30
BLACK M.M.,X07
DK.RED.MC,R54
YELLOW GREEN M.M.,G43
DK.BLUE M.M.,B42
WHITE,W09
BLUISH WHITE P.M.,W21
WHITE PEARL MC.CS,W24
WHITE PEARL.MC.,W16
SILVER ME.,S28
GRAY ME.,S30
BLACK M.M.,X07
RED,R40
DK.RED.MC,R54
MAROON MC.,R56
CHAMPAGNE ME.,T23
YELLOW GREEN M.M.,G43
LT.GREEN.ME.,G50
OLIVE ME.SE,G52
DK.BLUE M.M.,B42
LT.BLUE ME.OP.,B57
GRAYISH PURPLE ME.OP.,P12
87940MIRROR ASSY, OUTER REAR VIEW, LH
87945COVER, OUTER MIRROR, LH
WHITE,W09
BLUISH WHITE P.M.,W21
SILVER ME.,S28
GRAY ME.,S30
BLACK M.M.,X07
DK.RED.MC,R54
YELLOW GREEN M.M.,G43
DK.BLUE M.M.,B42
WHITE,W09
BLUISH WHITE P.M.,W21
WHITE PEARL MC.CS,W24
WHITE PEARL.MC.,W16
SILVER ME.,S28
GRAY ME.,S30
BLACK M.M.,X07
RED,R40
DK.RED.MC,R54
MAROON MC.,R56
CHAMPAGNE ME.,T23
YELLOW GREEN M.M.,G43
LT.GREEN.ME.,G50
OLIVE ME.SE,G52
DK.BLUE M.M.,B42
LT.BLUE ME.OP.,B57
GRAYISH PURPLE ME.OP.,P12
9004149087
main90041-49087
9004179104
main90041-79104
11 parts on this diagram · 2 diagrams in section
