Toyota BB — METER

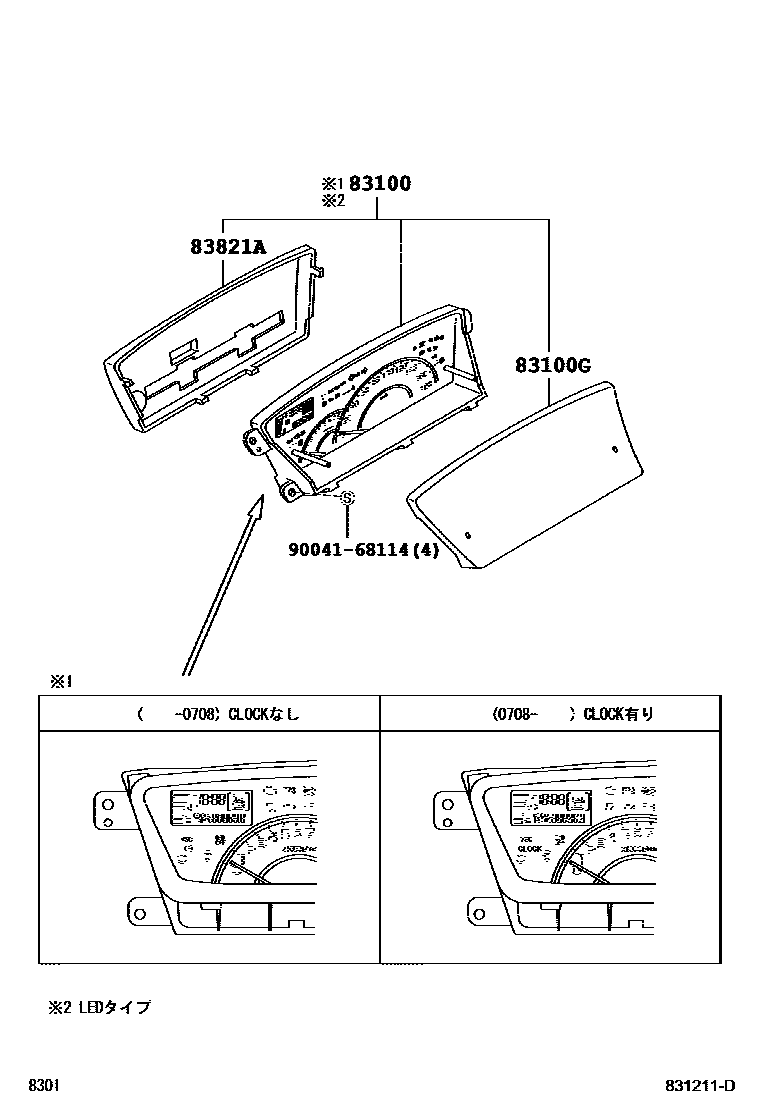

Parts diagram

83100METER ASSY, COMBINATION

main83800-B1240i200601-200708

main83800-B1241i200708-200809

main83800-B1242i201302-201409

main83800-B1150i200601-200607

main83800-B1151supersedes 83800-B1140i200608-200708

main83800-B1152supersedes 83800-B1141i200809-201302

main83800-B1153supersedes 83800-B1142i201409

main83800-B1250i200601-200607

main83800-B1251i200608-200708

main83800-B1252i200809-201302

main83800-B1253i201302-201409

main83800-B1254supersedes 83800-B1243i201409

main83800-B1570i200612-200708

main83800-B1A20i200809-201302

main83800-B1A21i201302-201409

main83800-B1B90supersedes 83800-B1141i200809-201302

main83800-B1B91i201409

83100GGLASS, COMBINATION METER

main83852-B1010i200601-200809

83821ACOVER, COMBINATION METER, NO.1

main83821-B1020i200601-200809

9004168114

main90041-68114

4 parts on this diagram · 1 diagram in section
