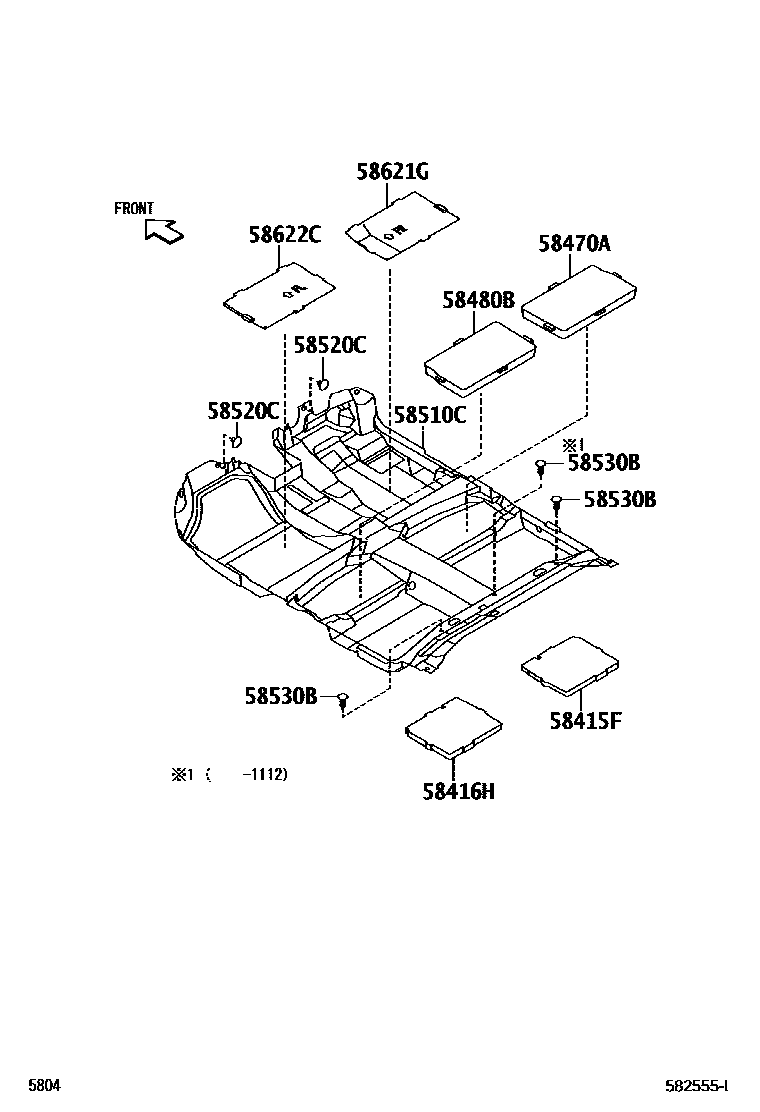

Toyota BB — MAT & CARPET
58415FBOARD, REAR FLOOR, NO.1
58416HBOARD, REAR FLOOR, NO.2
58470ABOARD ASSY, REAR FLOOR, NO.1
58480BBOARD ASSY, REAR FLOOR, NO.2
58510CCARPET ASSY, FRONT FLOOR, FRONT
58520CCLIP(FOR FRONT FLOOR CARPET)
58530BCLIP(FOR FRONT FLOOR CARPET)
DK.GRAY
BLACK
58621GPAD, FRONT FLOOR SILENCER, RH
58622CPAD, FRONT FLOOR SILENCER, LH
9 parts on this diagram · 2 diagrams in section
MAT & CARPET for Toyota BB
This section contains 10 genuine Toyota parts for the MAT & CARPET system of the Toyota BB. Key components include: BOARD, REAR FLOOR, NO.1, BOARD, REAR FLOOR, NO.2, BOARD ASSY, REAR FLOOR, NO.1, BOARD ASSY, REAR FLOOR, NO.2, CARPET ASSY, FRONT FLOOR, FRONT.
