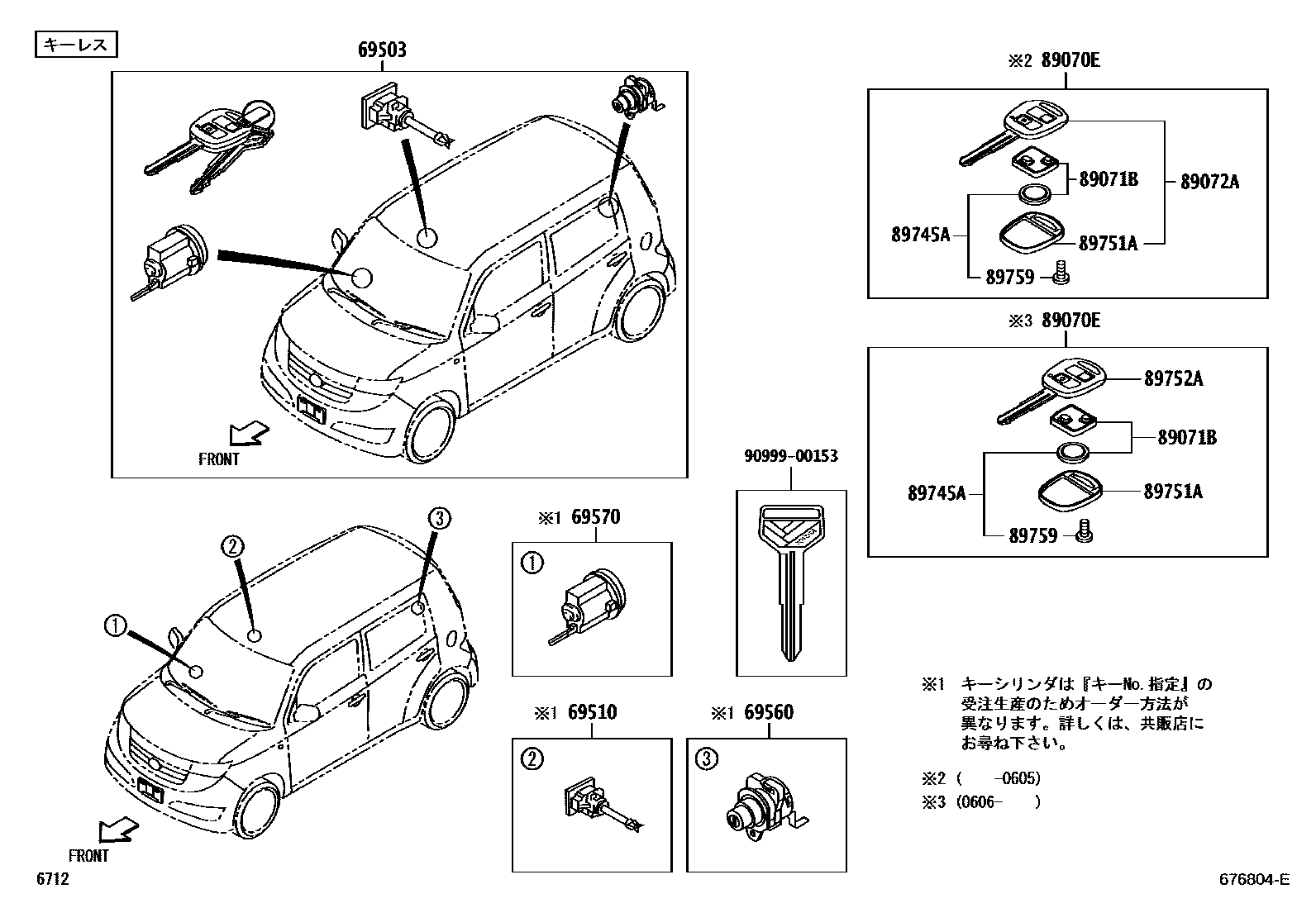

Toyota BB — LOCK CYLINDER SET
69503CYLINDER SET, LOCK
69510CYLINDER ASSY, FRONT DOOR LOCK, RH
69560CYLINDER ASSY, BACK DOOR LOCK
69570CYLINDER ASSY, IGNITION SWITCH LOCK
89070ETRANSMITTER ASSY, DOOR CONTROL
89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89072AHOUSING SET, DOOR CONTROL TRANSMITTER
89745ABATTERY, TRANSMITTER
89751ACOVER, TRANSMITTER HOUSING
89752ACASE, TRANSMITTER HOUSING
89759SCREW, DOOR CONTROL TRANSMITTER
9099900153
main90999-00153
12 parts on this diagram · 2 diagrams in section
LOCK CYLINDER SET for Toyota BB
This section contains 16 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota BB. Key components include: CYLINDER SET, LOCK, KEY, SUB, CYLINDER ASSY, FRONT DOOR LOCK, RH, CYLINDER ASSY, BACK DOOR LOCK, CYLINDER ASSY, IGNITION SWITCH LOCK.
