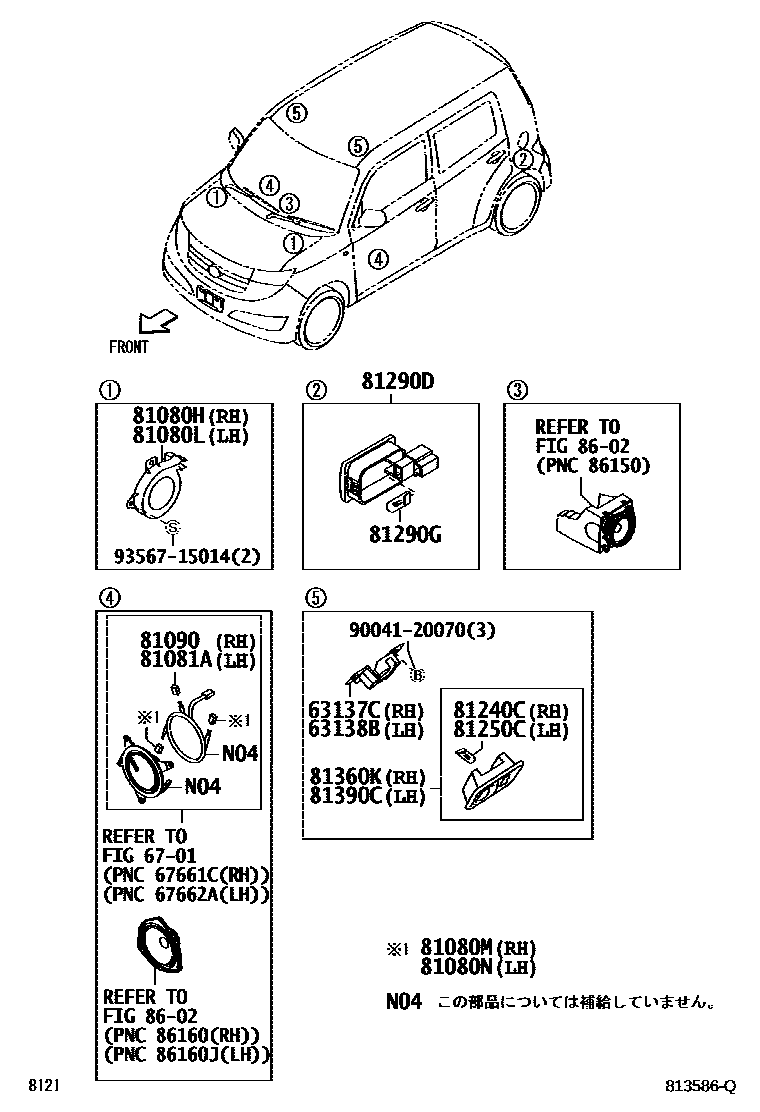

Toyota BB — INTERIOR LAMP

63137CBRACKET, DOME LAMP, NO.1

main63137-B1010i200601-200809

63138BBRACKET, DOME LAMP, NO.2

main63138-B1010i200601-200809

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

main81081-B1010i200601-200809

81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

main81081-B1010i200601-200809

81080MLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-48020×2i200601-200809

81080NLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-48020×2i200601-200809

81081ALAMP SUB-ASSY, INTERIOR ILLUMINATION, NO.2

main81080-B1010i200601-200809

81090LAMP ASSY, INTERIOR ILLUMINATION, NO.2

main81080-B1010i200601-200809

81240LAMP ASSY, ROOM, NO.1

main81240-B2050-B1i200708-200809

DK.GRAY,TRIM1#

81240CBULB

main90981-11013i200601-200809

81250CBULB, SPOT LAMP

main90981-11013i200601-200809

81290DLAMP ASSY, REAR ROOM, LH

main81240-B1010i200601-200809

81290GBULB, REAR ROOM LAMP, LH

main90981-11013i200601-200809

81360KLAMP ASSY, SPOT, RH

main81360-B1010-B0i200601-200809

DK.GRAY,TRIM1#

81390CLAMP ASSY, SPOT, LH

main81390-B1010-B0i200601-200809

8602SPEAKER

→ Go to FIG 86-02

9004120070

main90041-20070

9356715014

main93567-15014

19 parts on this diagram · 3 diagrams in section

INTERIOR LAMP for Toyota BB

This section contains 24 genuine Toyota parts for the INTERIOR LAMP system of the Toyota BB. Key components include: BRACKET, DOME LAMP, NO.1, BRACKET, DOME LAMP, NO.2, FRONT DOOR PANEL & GLASS, LAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH, LAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH.
