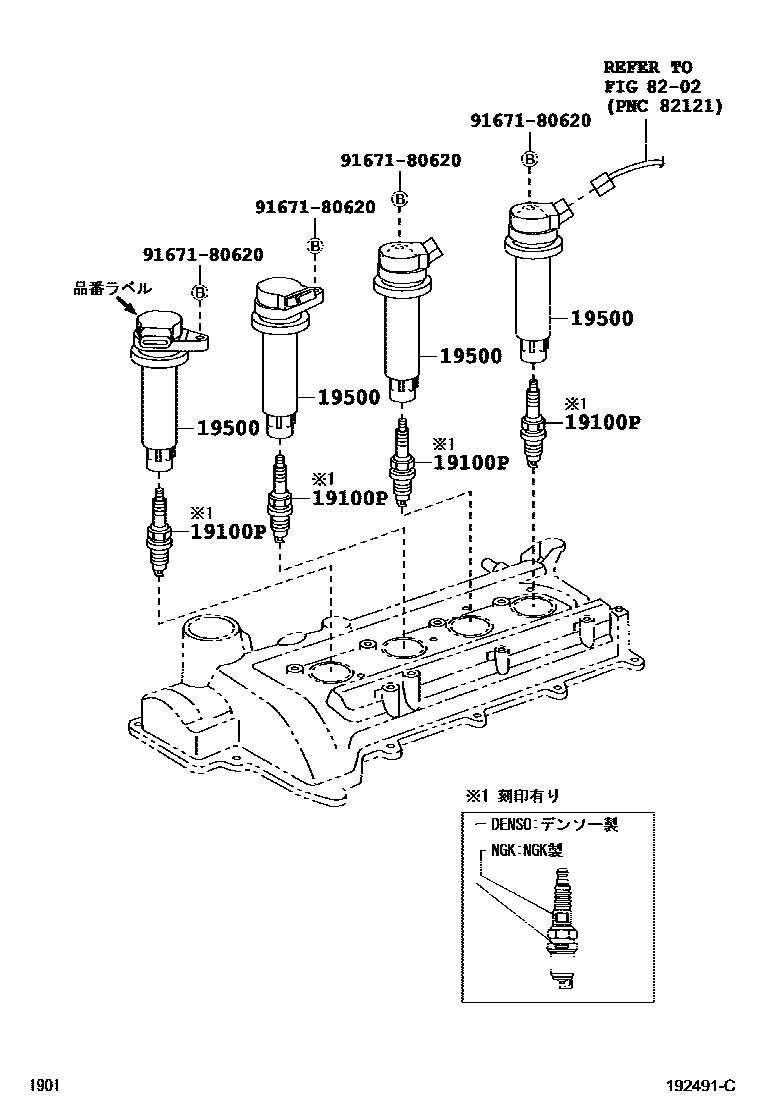

Toyota BB — IGNITION COIL & SPARK PLUG / GLOW PLUG

19100PPLUG, SPARK

main90048-51187×4i200601-200610

main90048-51188×4i200601-200809

main90048-51200×4i200809-201409

19500COIL ASSY, IGNITION

main19070-B1011×4i200601-200809

main19070-B1020×4i201007-201409

8202WIRING & CLAMP

→ Go to FIG 82-02

9167180620

main91671-80620

4 parts on this diagram · 1 diagram in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota BB

This section contains 4 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota BB. Key components include: PLUG, SPARK, COIL ASSY, IGNITION, WIRING & CLAMP.
