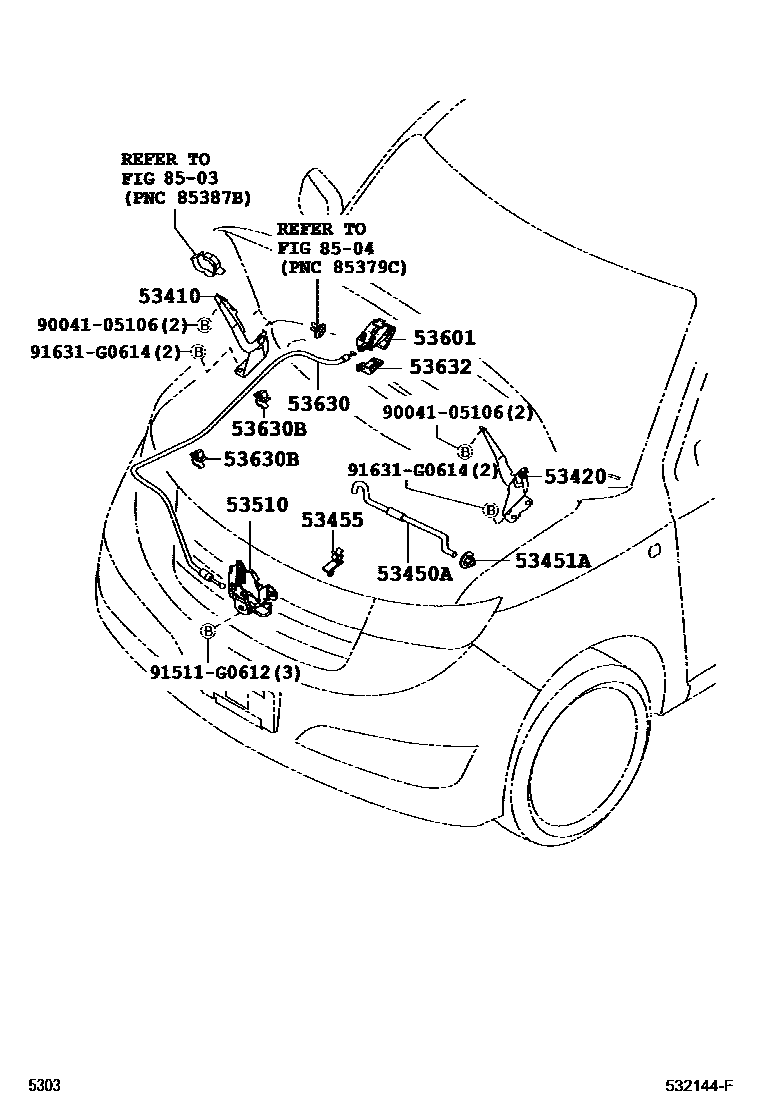

Toyota BB — HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53401-B1020i200601-200809

53420HINGE ASSY, HOOD, LH

main53402-B1020i200601-200809

53450ASUPPORT ASSY, HOOD, LH

main53440-B1020i200601-200809

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15028i200601-200809

53455CLAMP, HOOD SUPPORT ROD

main53455-B1020i200601-200809

53510LOCK ASSY, HOOD

main53510-B1030i200601-200809

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-B2010-B0i200601-200809

DK.GRAY,TRIM1#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-B1040i200809

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90467-08043×2i200811-201409

main90467-09043×2i200601-200809

53632HOLDER, HOOD LOCK CONTROL CABLE

main53632-B1010i201511

8503WINDSHIELD WASHER

→ Go to FIG 85-03

8504REAR WASHER

→ Go to FIG 85-04

9004105106

main90041-05106

91511G0612

main91511-G0612

91631G0614

main91631-G0614

15 parts on this diagram · 1 diagram in section

HOOD LOCK & HINGE for Toyota BB

This section contains 15 genuine Toyota parts for the HOOD LOCK & HINGE system of the Toyota BB. Key components include: HINGE ASSY, HOOD, RH, HINGE ASSY, HOOD, LH, SUPPORT ASSY, HOOD, LH, GROMMET(FOR HOOD SUPPORT ROD), CLAMP, HOOD SUPPORT ROD.
