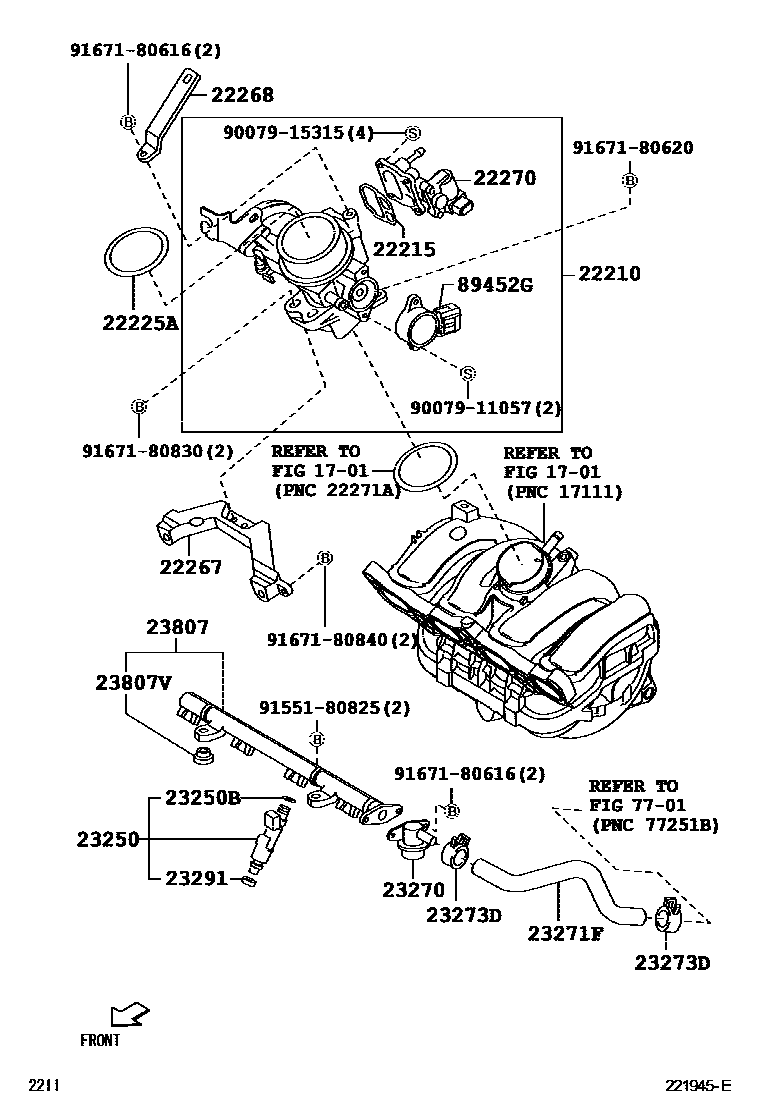

Toyota BB — FUEL INJECTION SYSTEM
1701MANIFOLD
22210BODY ASSY, THROTTLE
22215GASKET, THROTTLE BODY COVER
22225ARING, O(FOR THROTTLE BODY IDLE ADJUSTING SCREW)
22267BRACKET, THROTTLE BODY
22268BRACKET, THROTTLE BODY, NO.2
22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
23270DAMPER ASSY, FUEL PRESSURE PULSATION
23271FHOSE, FUEL
23273DCLIP(FOR FUEL HOSE NO.2)
23291INSULATOR, INJECTOR VIBRATION
23807PIPE SUB-ASSY, FUEL DELIVERY
23807VSPACER, NO.1(FOR DELIVERY PIPE)
7701FUEL TANK & TUBE
89452GSENSOR, THROTTLE POSITION
9007911057
main90079-11057
9007915315
main90079-15315
9155180825
main91551-80825
9167180616
main91671-80616
9167180620
main91671-80620
9167180830
main91671-80830
9167180840
main91671-80840
24 parts on this diagram · 2 diagrams in section
FUEL INJECTION SYSTEM for Toyota BB
This section contains 31 genuine Toyota parts for the FUEL INJECTION SYSTEM system of the Toyota BB. Key components include: MANIFOLD, BODY ASSY, THROTTLE, GASKET, THROTTLE BODY COVER, RING, O(FOR THROTTLE BODY IDLE ADJUSTING SCREW), BRACKET, THROTTLE BODY.
