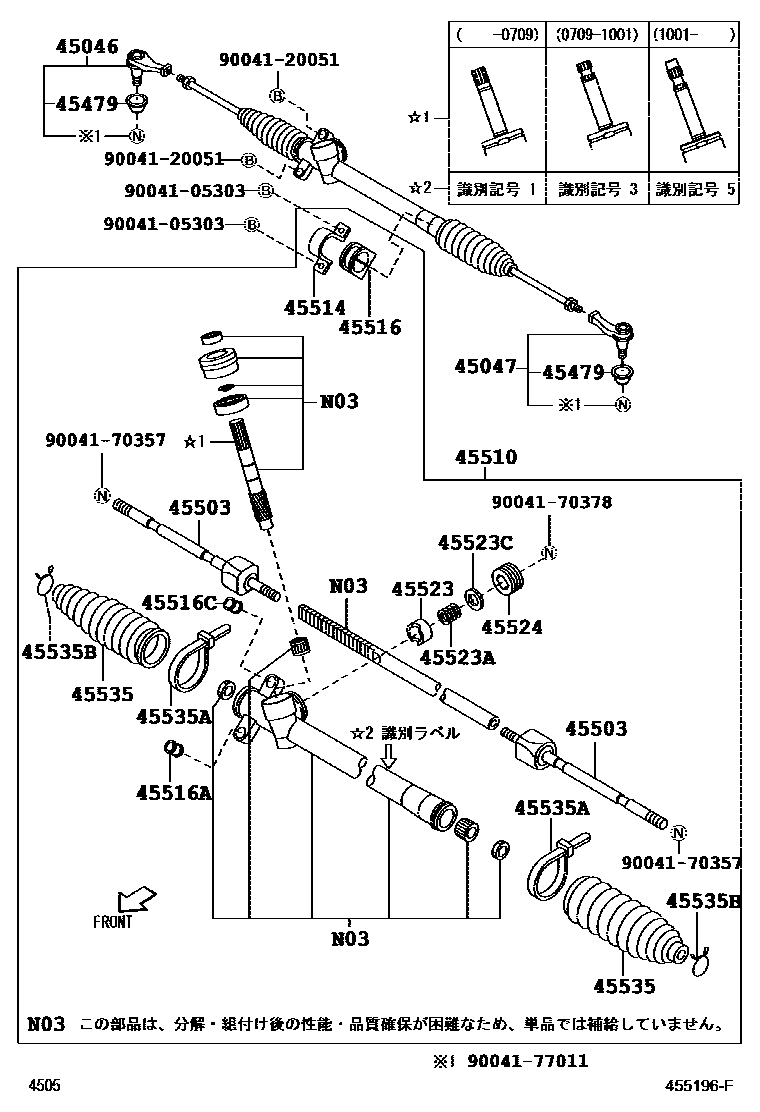

Toyota BB — FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-B9060i200601-200604

main45046-B9210i200604-200809

45047END SUB-ASSY, TIE ROD, LH

main45047-B9060i200601-200604

main45047-B9150i200604-200809

45479SEAL, STEERING LINK JOINT DUST

main45479-B2010×2i200604-200809

45503END SUB-ASSY, STEERING RACK

main45503-B1020×2i200601-200809

45510GEAR ASSY, STEERING

main45502-B1050i200601-200604

main45502-B1051i200709-200710

main45502-B1052i200711-200809

main45502-B1053i200809-200810

main45502-B1054i200810-201001

main45502-B1055i201001-201210

main45502-B1056i201211-201303

main45502-B1057i201304-201409

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-B2010i200601-200809

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-B1030i200601-200809

45516ABUSH, STEERING RACK HOUSING, NO.1

main45516-B2020i200601-200809

main45516-B2090i200901-201409

45516CBUSH, STEERING RACK HOUSING, NO.2

main45516-B2030i200601-200809

main45516-B2100i200901-201409

45523GUIDE, RACK(FOR STEERING GEAR)

main45523-87403i200601-200809

main45523-B1040i201304-201409

45523ASPRING(FOR STEERING GEAR RACK GUIDE)

main90045-01429i200601-200809

45523CSPACER(FOR RACK GUIDE)

main90042-08038i200601-200809

45524CAP, STEERING RACK GUIDE SPRING

main45524-B1010i200601-200809

45535BOOT, STEERING RACK, NO.1

main45535-B2010×2i200601-200809

45535ACLAMP(FOR STEERING RACK BOOT)

main45536-87205×2i200601-200809

main45538-B2020×2i201211-201409

45535BCLIP(FOR STEERING RACK BOOT)

main45537-97201×2i200601-200809

9004105303

main90041-05303

9004120051

main90041-20051

9004170357

main90041-70357

9004170378

main90041-70378

9004177011

main90041-77011

21 parts on this diagram · 1 diagram in section

FRONT STEERING GEAR & LINK for Toyota BB

This section contains 21 genuine Toyota parts for the FRONT STEERING GEAR & LINK system of the Toyota BB. Key components include: END SUB-ASSY, TIE ROD, RH, END SUB-ASSY, TIE ROD, LH, SEAL, STEERING LINK JOINT DUST, END SUB-ASSY, STEERING RACK, GEAR ASSY, STEERING.
