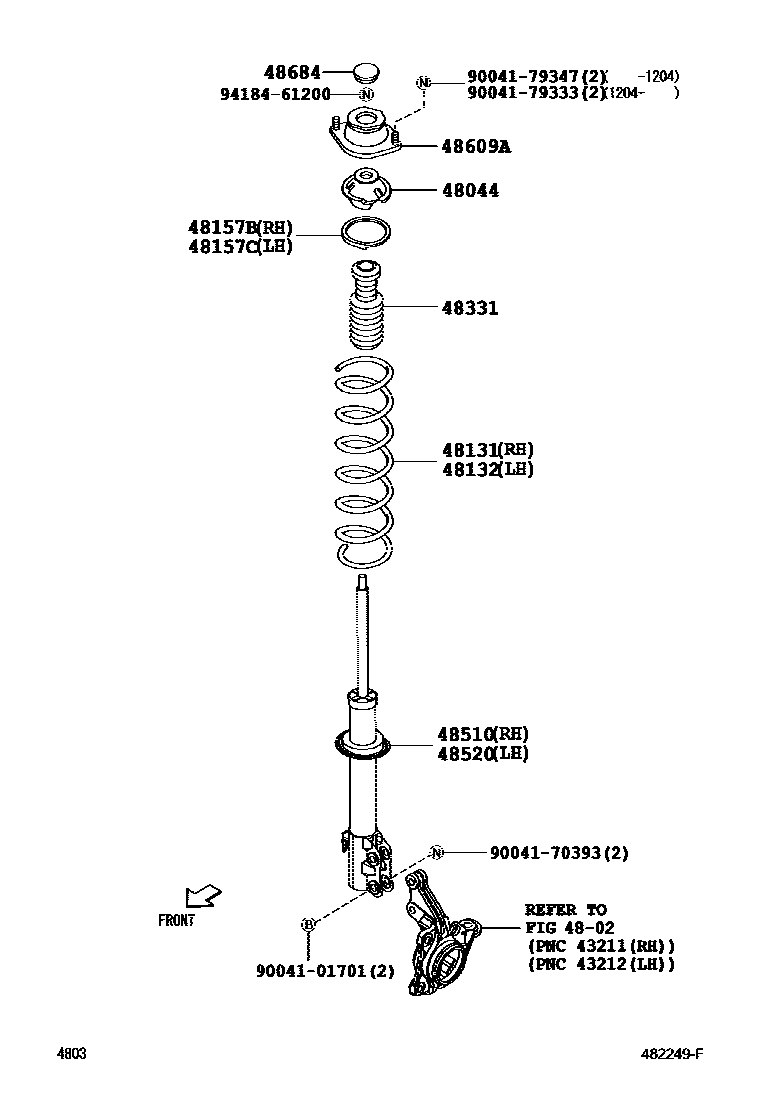

Toyota BB — FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

4802

48044SEAT SUB-ASSY, FRONT SPRING, NO.1

main48470-B1010×2iQNC20,21200809

48131SPRING, FRONT COIL, RH

main48131-B1080iQNC25200601-200809

main48131-B1090iQNC20,21200601-200809

48132SPRING, FRONT COIL, LH

main48131-B1080iQNC25200809-201409

main48131-B1090iQNC20,21200601-200809

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-B1010iQNC2#200601-200809

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-B1010iQNC25200809-201409

48331BUMPER, FRONT SPRING, NO.1

main48331-B1020×2iQNC25200809-201409

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-B1052iQNC20,21201009-201409

main48510-B1062iQNC20,21201409

main48510-B1070iQNC25200601-200710

main48510-B1071iQNC25200711-200809

main48510-B1072iQNC25201009-201409

main48510-B1060supersedes 48510-B1051iQNC20,21200601-200710

main48510-B1061supersedes 48510-B1051iQNC20,21200809-201008

main48510-B1080iQNC25..Z200601-200710

main48510-B1081iQNC25..Z200809-201008

main48510-B1082iQNC25..Z201009-201302

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-B1052iQNC20,21201009-201409

main48510-B1062iQNC20,21201409

main48510-B1070iQNC25200601-200710

main48510-B1071iQNC25200809-201008

main48510-B1072iQNC25201009-201409

main48510-B1060supersedes 48510-B1051iQNC20,21200601-200710

main48510-B1061supersedes 48510-B1051iQNC20,21200711-200809

main48510-B1080iQNC25..Z200601-200710

main48510-B1081iQNC25..Z200809-201008

main48510-B1082iQNC25..Z201009-201302

48609ASUPPORT SUB-ASSY, FRONT SUSPENSION

main48609-B1010×2iQNC20,21200809

48684COVER, BEARING DUST

main48684-87202×2iQNC2#200601-200809

main48684-B2010×2iQNC20,21201310

9004101701

main90041-01701

9004170393

main90041-70393

9004179333

main90041-79333

9004179347

main90041-79347

9418461200

main94184-61200

16 parts on this diagram · 2 diagrams in section
