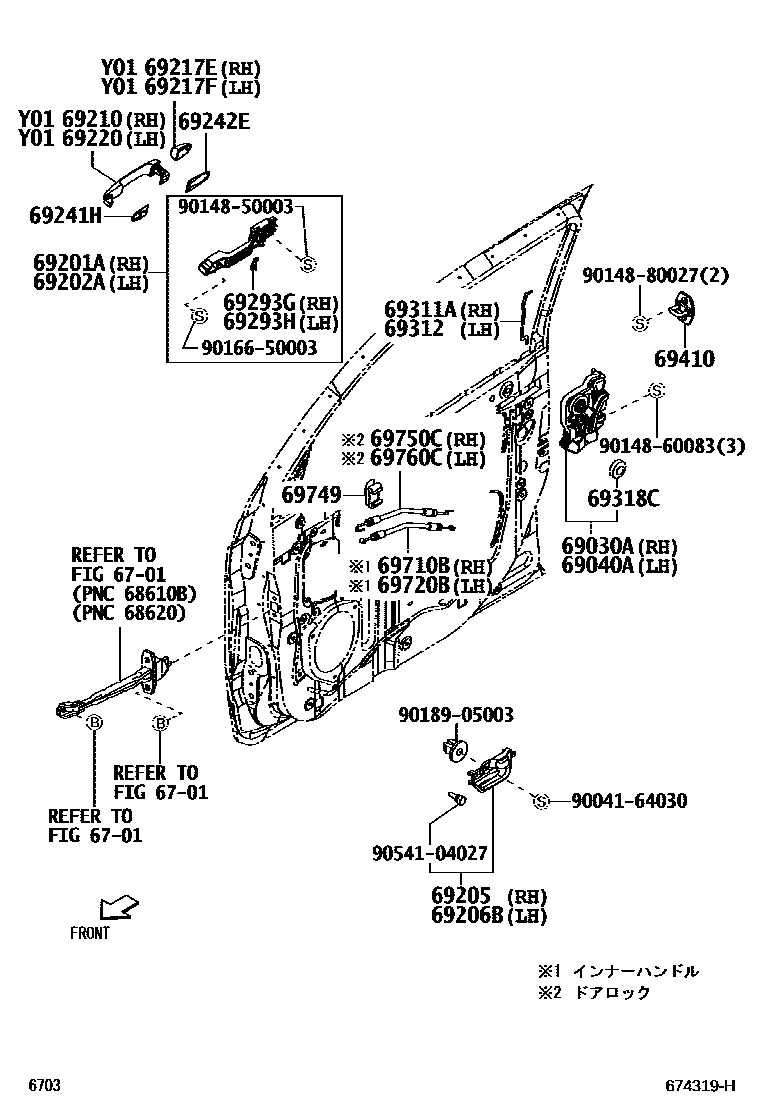

Toyota BB — FRONT DOOR LOCK & HANDLE

6701

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-B1030iQNC2#200601-200809

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-B1030iQNC20,21200809

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-B1010iQNC2#200601-200809

main69201-B1020iQNC20,25..S200708-200809

main69201-B1030iQNC20,25..S201007-201302

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-B1010iQNC2#200601-200809

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-B1010iQNC2#200601-200809

main69205-B1010-B0iQNC2#201110-201607

DK.GRAY,TRIM1#

main69205-B1020iQNC20,21;QNC25..Z201112-201312

main69205-B1021-B0iQNC20,21;QNC25..Z201401-201404

main69205-B1050-B0iQNC20,21201405-201409

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-B1010iQNC2#200601-200809

main69206-B1010-B0iQNC2#201110-201607

DK.GRAY,TRIM1#

main69206-B1020iQNC20,21;QNC25..Z201112-201312

main69206-B1021-B0iQNC20,21;QNC25..Z201401-201404

main69206-B1050-B0iQNC20,21201405-201409

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69211-B1010-A0iQNC2#200601-200809

BLUISH WHITE P.M.,W21

main69211-B1010-A3iQNC2#201302-201607

WHITE PEARL MC.CS,W24

main69211-B1010-B0iQNC2#200601-200809

GRAY ME.,S30

main69211-B1010-B2iQNC2#200601-200809

DK.BLUE M.M.,B42

main69211-B1010-B7iQNC2#200701-200809

LT.BLUE ME.OP.,B57

main69211-B1010-D0iQNC2#200809-201001

DK.RED.MC,R54

main69211-B1010-E1iQNC2#201002-201112

CHAMPAGNE ME.,T23

main69211-B1010-G1iQNC2#200601-200809

YELLOW GREEN M.M.,G43

main69211-B1010-G4iQNC2#201007-201112

LT.GREEN.ME.,G50

main69211-B1010-K1iQNC2#201002-201409

GRAYISH PURPLE ME.OP.,P12

main69211-B1010-R0iQNC2#200809-201001

RED,R40

main69211-B1010-S8iQNC2#201002-201607

SILVER ME.,S28

main69211-B1010-W6iQNC2#200809-201001

WHITE PEARL.MC.,W16

main69211-B1010-W9iQNC2#201002-201607

WHITE,W09

main69211-B1010-X7iQNC2#201002-201607

BLACK M.M.,X07

main69210-12260iQNC20,21;QNC25..Z201112-201409

main69210-B1030-A0iQNC20,25..S200612-200708

main69210-B1030-A1iQNC20,21;QNC25..Z200601-200809

main69210-B1030-A3iQNC21,25..Z200809-201302

main69210-B1030-A5iQNC21201409-201607

main69210-B1030-B0iQNC20,25..S200708-200809

main69210-B1030-B1supersedes 69211-B1010-B0iQNC21,25..Z200809-201001

main69210-B1030-C0iQNC20,21;QNC25..Z200809-201001

main69210-B1030-D0iQNC21,25..Z200809-201001

main69210-B1030-D1iQNC20200708-200809

main69210-B1030-D3supersedes 69211-B1010-D1iQNC20200907-201001

main69210-B1030-D8iQNC21201409-201607

main69210-B1030-E2iQNC21,25..Z200809-201112

main69210-B1030-G0iQNC20,21;QNC25..Z200601-200809

main69210-B1030-G4iQNC21,25..Z201007-201112

main69210-B1030-G5supersedes 69211-B1010-G5iQNC21,25..Z201112-201302

main69210-B1030-J0iQNC20,25..S200708-200809

main69210-B1030-J2iQNC20,25..S200612-200708

main69210-B1030-K0iQNC21,25..Z200809-201409

69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH

main69217-B1010-A0iQNC2#200601-200809

main69217-B1010-A3iQNC2#201302-201607

WHITE PEARL MC.CS,W24

main69217-B1010-B0iQNC2#200601-200809

main69217-B1010-B2iQNC2#200601-200809

DK.BLUE M.M.,B42

main69217-B1010-B7iQNC2#200701-200809

LT.BLUE ME.OP.,B57

main69217-B1010-D0iQNC2#200601-200809

DK.RED.MC,R54

main69217-B1010-D1iQNC2#200908-201001

main69217-B1010-E1iQNC2#200809-201001

CHAMPAGNE ME.,T23

main69217-B1010-G1iQNC2#200601-200809

YELLOW GREEN M.M.,G43

main69217-B1010-G4iQNC2#201007-201112

LT.GREEN.ME.,G50

main69217-B1010-G5iQNC2#201112-201302

main69217-B1010-K1iQNC2#201002-201409

GRAYISH PURPLE ME.OP.,P12

main69217-B1010-R0iQNC2#201002-201602

RED,R40

main69217-B1010-S8iQNC2#200601-200809

main69217-B1010-W6iQNC2#200809-201001

WHITE PEARL.MC.,W16

main69217-B1010-W9iQNC2#200601-200809

WHITE,W09

main69217-B1010-X7iQNC2#200601-200809

main69217-12010iQNC20,21;QNC25..Z201112-201409

main69217-B1010-D6iQNC21201409-201607

69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH

main69218-B1010-A0iQNC2#200601-200809

main69218-B1010-A3iQNC2#201302-201607

WHITE PEARL MC.CS,W24

main69218-B1010-B0iQNC2#200601-200809

main69218-B1010-B2iQNC2#200601-200809

DK.BLUE M.M.,B42

main69218-B1010-B7iQNC2#200701-200809

LT.BLUE ME.OP.,B57

main69218-B1010-D0iQNC2#200809-201001

DK.RED.MC,R54

main69218-B1010-D1iQNC2#200908-201001

main69218-B1010-D6iQNC2#201409-201607

main69218-B1010-E1iQNC2#200809-201001

CHAMPAGNE ME.,T23

main69218-B1010-G1iQNC2#200601-200809

YELLOW GREEN M.M.,G43

main69218-B1010-G4iQNC2#201007-201112

LT.GREEN.ME.,G50

main69218-B1010-G5iQNC2#201112-201302

main69218-B1010-K0iQNC2#200809-201001

GRAYISH PURPLE ME.OP.,P12

main69218-B1010-R0iQNC2#200701-200809

RED,R40

main69218-B1010-S8iQNC2#200601-200809

main69218-B1010-W6iQNC2#201002-201302

WHITE PEARL.MC.,W16

main69218-B1010-W9iQNC2#200601-200809

WHITE,W09

main69218-B1010-X7iQNC2#201002-201607

BLACK M.M.,X07

main69217-12050iQNC20,21;QNC25..Z201112-201409

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69211-B1010-A0iQNC2#200601-200809

BLUISH WHITE P.M.,W21

main69211-B1010-A3iQNC2#201302-201607

WHITE PEARL MC.CS,W24

main69211-B1010-B0supersedes 69211-B1010-B0iQNC20,21;QNC25..Z201002-201112

GRAY ME.,S30

main69211-B1010-B2iQNC2#200601-200809

DK.BLUE M.M.,B42

main69211-B1010-B7supersedes 69211-B1010-B7iQNC2#201002-201112

LT.BLUE ME.OP.,B57

main69211-B1010-E1supersedes 69211-B1010-E1iQNC2#201002-201112

CHAMPAGNE ME.,T23

main69211-B1010-G1iQNC2#200601-200809

YELLOW GREEN M.M.,G43

main69211-B1010-G4iQNC2#201007-201112

LT.GREEN.ME.,G50

main69211-B1010-G5iQNC20,25..S201112-201302

main69211-B1010-K1supersedes 69211-B1010-K1iQNC2#201002-201409

GRAYISH PURPLE ME.OP.,P12

main69211-B1010-W6supersedes 69211-B1010-W6iQNC2#201002-201302

WHITE PEARL.MC.,W16

main69210-12260iQNC20,21;QNC25..Z201112-201409

main69211-B1010-D6iQNC21201409-201607

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-B1010×2iQNC25200809-201409

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-B1010×2iQNC2#200601-200809

main69242-B1020×2iQNC25200810-201409

69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-B1010iQNC2#200601-200809

69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-B1010iQNC2#200601-200809

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-B1020iQNC2#200601-200809

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-B1020iQNC20,21200809

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-47010×2iQNC2#200601-200809

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-33010×2iQNC2#200601-200809

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-B1020iQNC2#200601-200809

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-B1020iQNC2#200601-200809

69749CLAMP, FRONT DOOR LOCK LINK

main69749-32040×2iQNC2#200601-200809

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-B1020iQNC2#200601-200809

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69760-B1020iQNC2#200809-201607

9004164030

main90041-64030

9014850003

main90148-50003

9014860083

main90148-60083

9014880027

main90148-80027

9016650003

main90166-50003

9018905003

main90189-05003

9054104027

main90541-04027

31 parts on this diagram · 1 diagram in section
