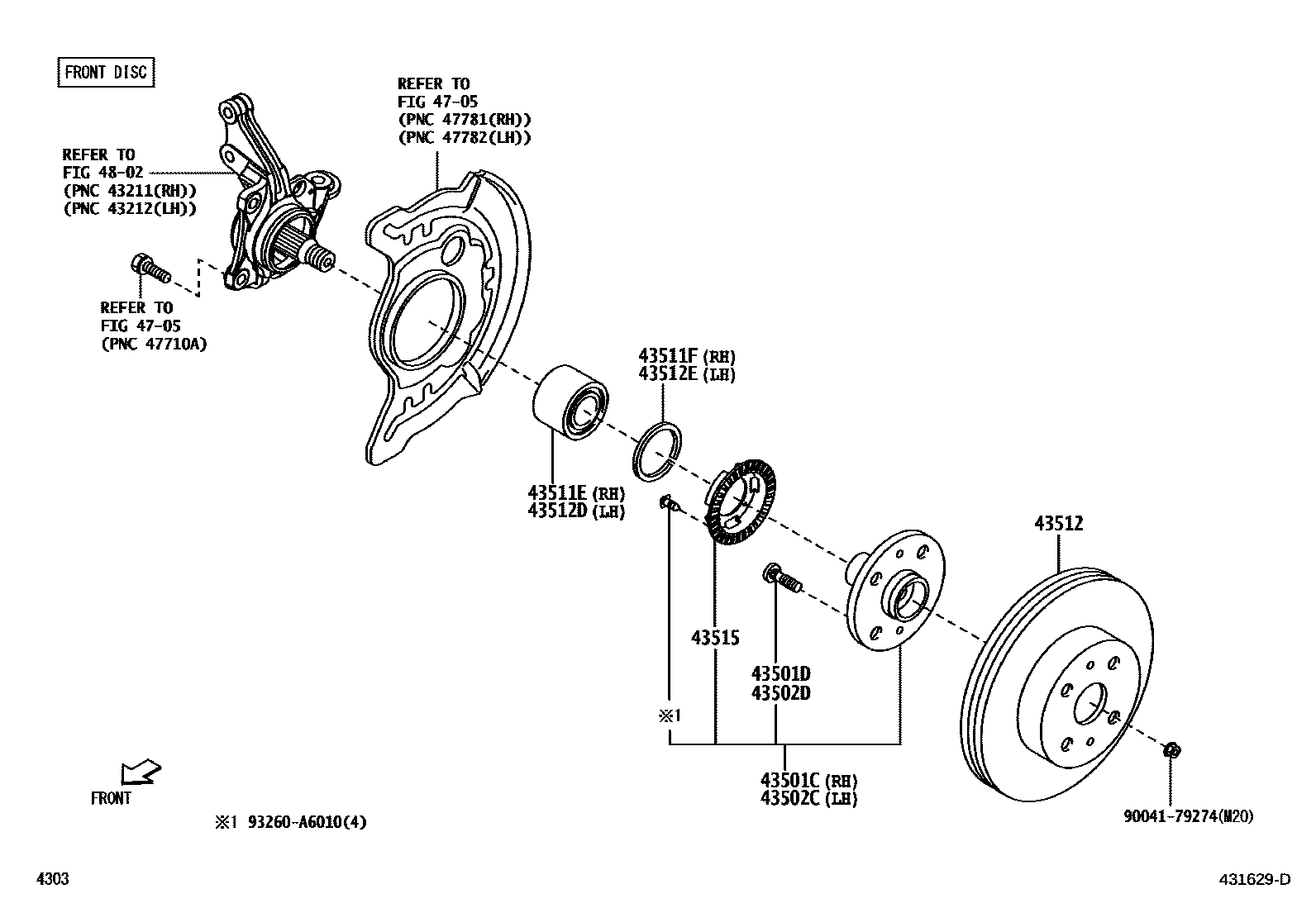

Toyota BB — FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-B1020i200601-201409

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90049-12056i200601-201409

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-B1020i200601-201409

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90049-12056i200601-201409

43511EBEARING (FOR FRONT AXLE HUB RH)

main90043-63308i200601-200810

main90043-63370i200810-201409

43511FRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90045-21163i200601-201409

43512DISC, FRONT

main43512-B1020i200601-200603

main43512-B1021i200604-201409

43512DBEARING (FOR FRONT AXLE HUB LH)

main90043-63308i200601-200810

main90043-63370i200810-201409

43512ERING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90045-21163i200601-201409

43515ROTOR, SKID CONTROL, FRONT

main89547-97201i200601-201607

4705FRONT DISC BRAKE CALIPER & DUST COVER

→ Go to FIG 47-05

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

9004179274

main90041-79274

93260A6010

main93260-A6010

14 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota BB

This section contains 14 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota BB. Key components include: HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), HUB SUB-ASSY, FRONT AXLE, LH, BOLT, HUB (FOR FRONT AXLE LH), BEARING (FOR FRONT AXLE HUB RH).
