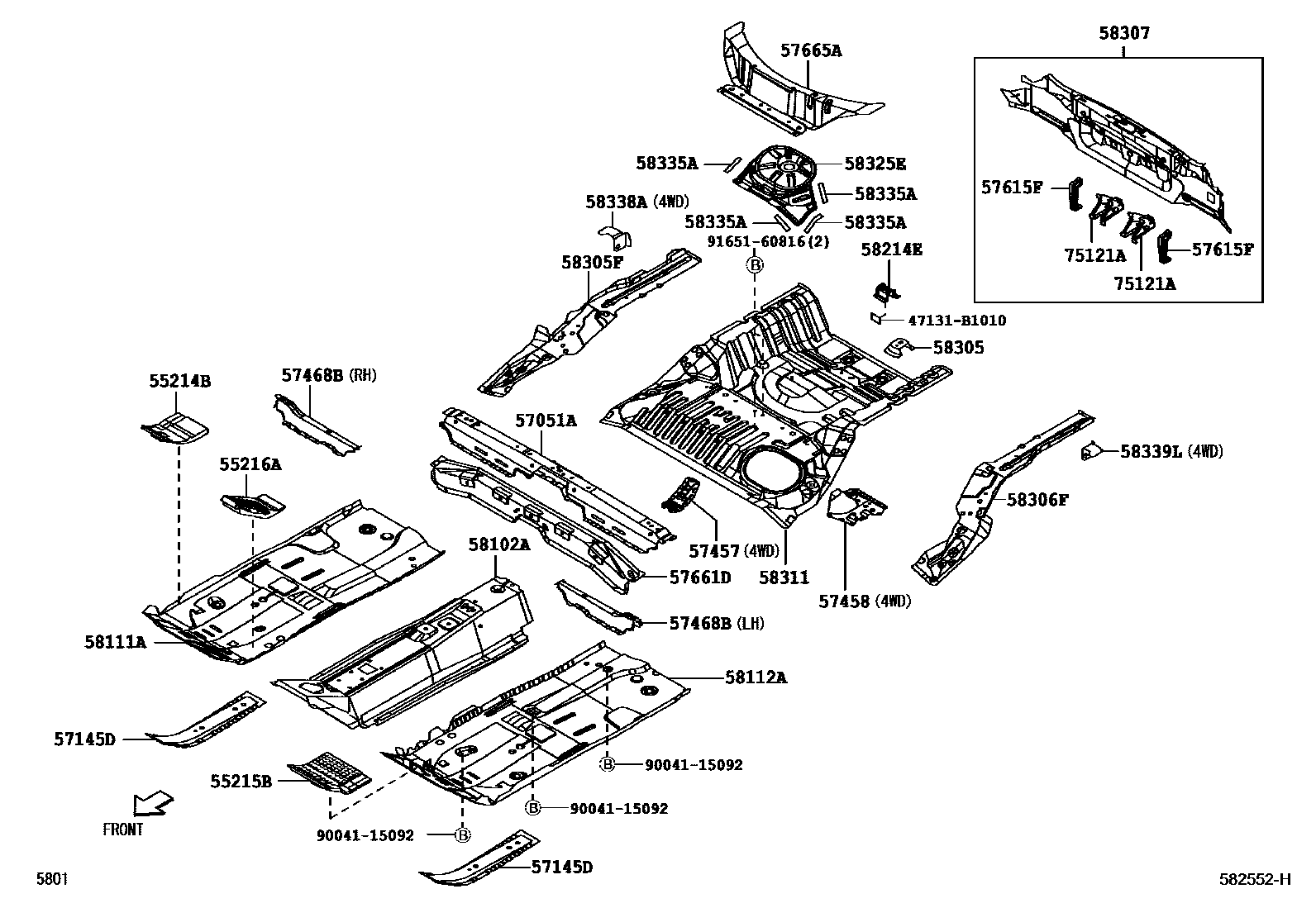

Toyota BB — FLOOR PAN & LOWER BACK PANEL
55214BPAD, DASH PANEL INSULATOR, NO.2
55215BPAD, DASH PANEL INSULATOR, NO.3
55216APAD, DASH PANEL INSULATOR, NO.4
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57145DREINFORCEMENT, FRONT SIDE MEMBER TO FLOOR PAN
57457PATCH, FLOOR SIDE MEMBER, REAR
57458MEMBER, FRONT FLOOR CROSS, NO.1
57615FBRACKET, REAR BUMPER MOUNTING
57661DMEMBER, REAR FLOOR CROSS, FRONT
57665AREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.2
58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR
58111APAN, FRONT FLOOR, RH
58112APANEL, FRONT FLOOR, LH
58214EBRACKET, JACK SUPPORT
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH
58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58325ECOVER, REAR FLOOR SERVICE HOLE
58335ASEAL, REAR FLOOR SIDE SERVICE HOLE COVER
58338AREINFORCEMENT, REAR FLOOR PAN, NO.2
58339LREINFORCEMENT, REAR FLOOR PAN, NO.2 LH
75121ABRACKET, REAR LICENSE PLATE
47131B1010CUSHION(FOR STOP LAMP SWITCH)
main47131-B1010
9004115092
main90041-15092
9165160816
main91651-60816
28 parts on this diagram · 3 diagrams in section
