Toyota BB — ENGINE OVERHAUL GASKET KIT

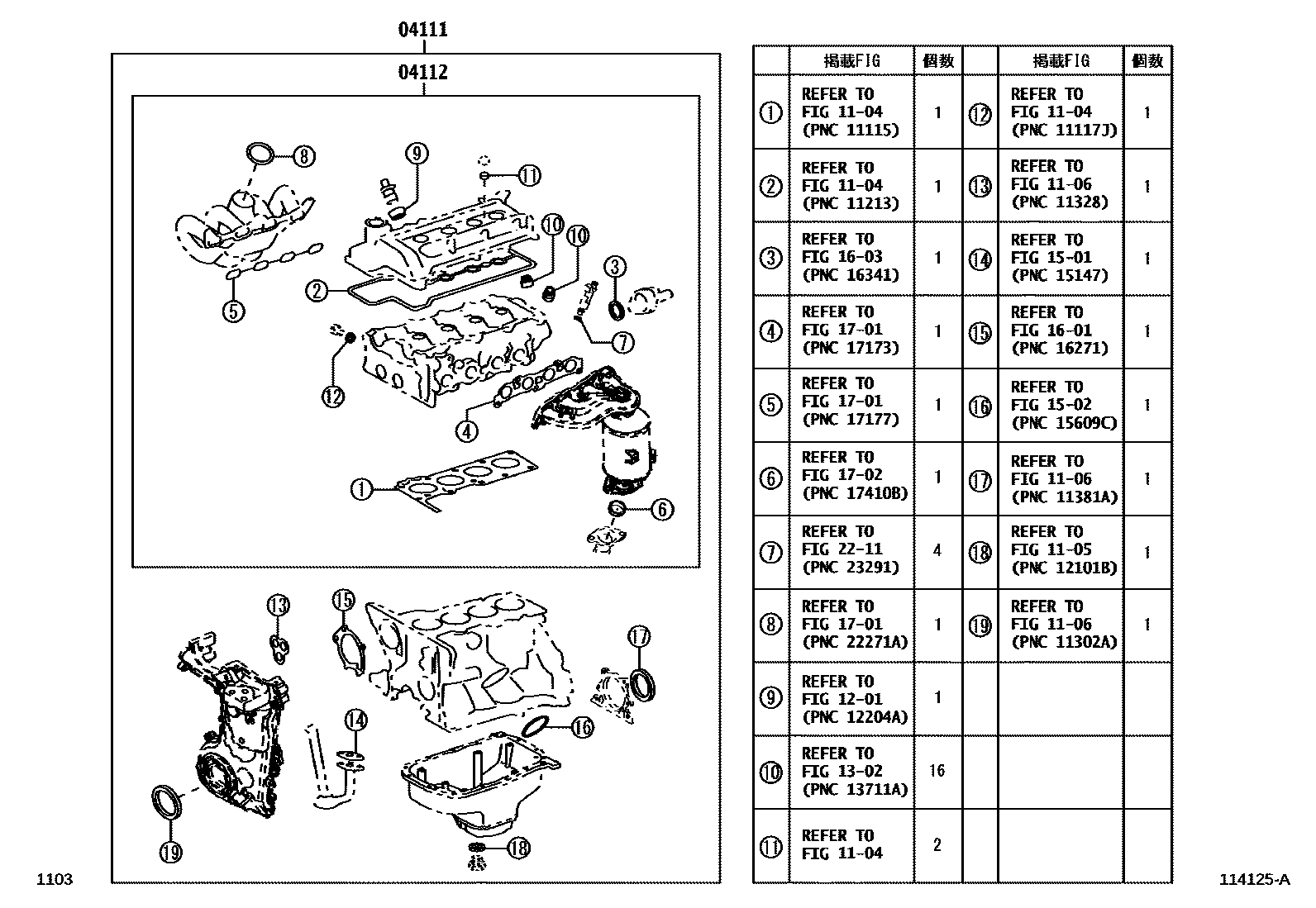

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-B1340i200601-200703
main04111-BA160i200703-200803
main04111-BA162i200803-200809
main04111-BA163i200905-201306
main04111-BA164i201306-201409
main04111-BA165i201411
04112GASKET KIT, ENGINE VALVE GRIND
main04112-B1220i200601-200703
main04112-B1610i200703-200803
main04112-B1612i200803-200809
main04112-B1613i200905-201409
1104CYLINDER HEAD
→ Go to FIG 11-04
1105CYLINDER BLOCK
→ Go to FIG 11-05
1106TIMING GEAR COVER & REAR END PLATE
→ Go to FIG 11-06
1201VENTILATION HOSE
→ Go to FIG 12-01
1302CAMSHAFT & VALVE
→ Go to FIG 13-02
1501ENGINE OIL PUMP
→ Go to FIG 15-01
1502OIL FILTER
→ Go to FIG 15-02
1601WATER PUMP
→ Go to FIG 16-01
1603RADIATOR & WATER OUTLET
→ Go to FIG 16-03
1701MANIFOLD
→ Go to FIG 17-01
1702EXHAUST PIPE
→ Go to FIG 17-02
2211FUEL INJECTION SYSTEM
→ Go to FIG 22-11

14 parts on this diagram · 1 diagram in section

ENGINE OVERHAUL GASKET KIT for Toyota BB

This section contains 14 genuine Toyota parts for the ENGINE OVERHAUL GASKET KIT system of the Toyota BB. Key components include: GASKET KIT, ENGINE OVERHAUL, GASKET KIT, ENGINE VALVE GRIND, CYLINDER HEAD, CYLINDER BLOCK, TIMING GEAR COVER & REAR END PLATE.
