Toyota BB — ELECTRONIC FUEL INJECTION SYSTEM

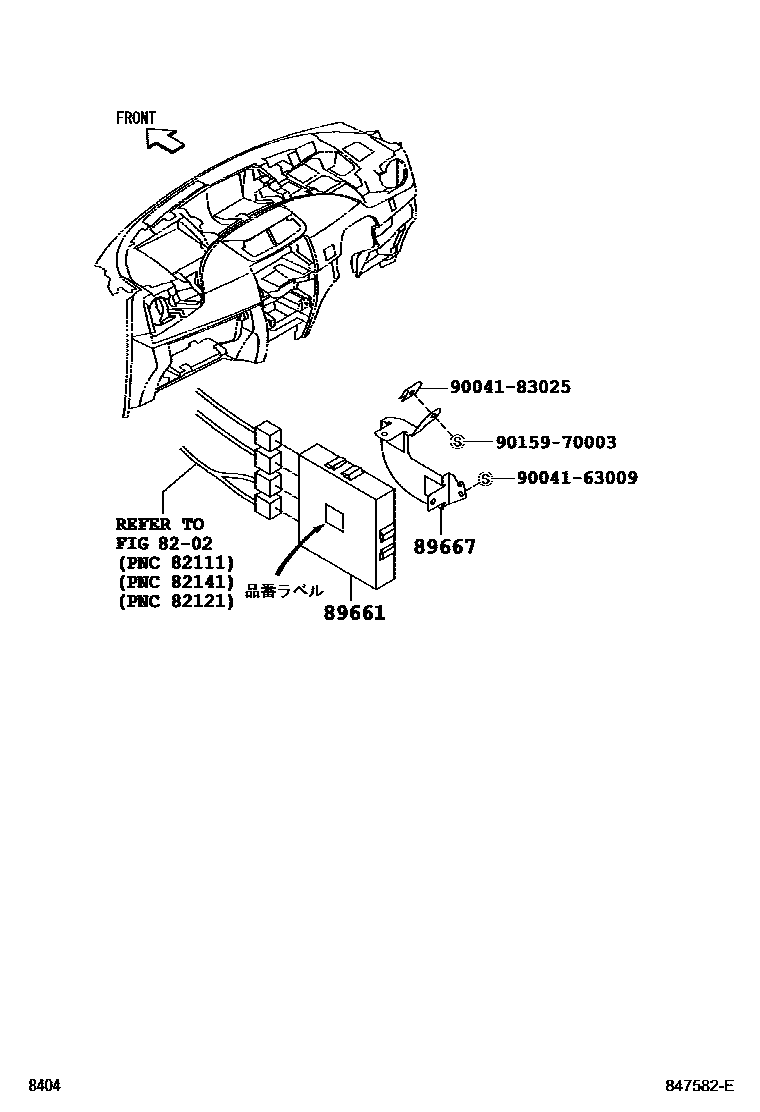

Parts diagram

8202WIRING & CLAMP

→ Go to FIG 82-02

89661COMPUTER, ENGINE CONTROL

main89560-B1540i200809-201007

main89560-B1F80i201007-201302

main89560-B1J10i201302

main89560-B1550i200708-200809

main89560-B1570supersedes 89560-B1560i200809-201007

main89560-B1F90i201007-201302

main89560-B1G10supersedes 89560-B1G00i201007-201302

main89560-B1J20i201302-201303

main89560-B1J21i201304-201409

main89560-B1J40supersedes 89560-B1J30i201302-201303

main89560-B1J41i201304-201409

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-B1010i200601-200809

9004163009

main90041-63009

9004183025

main90041-83025

9015970003

main90159-70003

6 parts on this diagram · 1 diagram in section

ELECTRONIC FUEL INJECTION SYSTEM for Toyota BB

This section contains 6 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota BB. Key components include: WIRING & CLAMP, COMPUTER, ENGINE CONTROL, BRACKET, ENGINE CONTROL COMPUTER.
