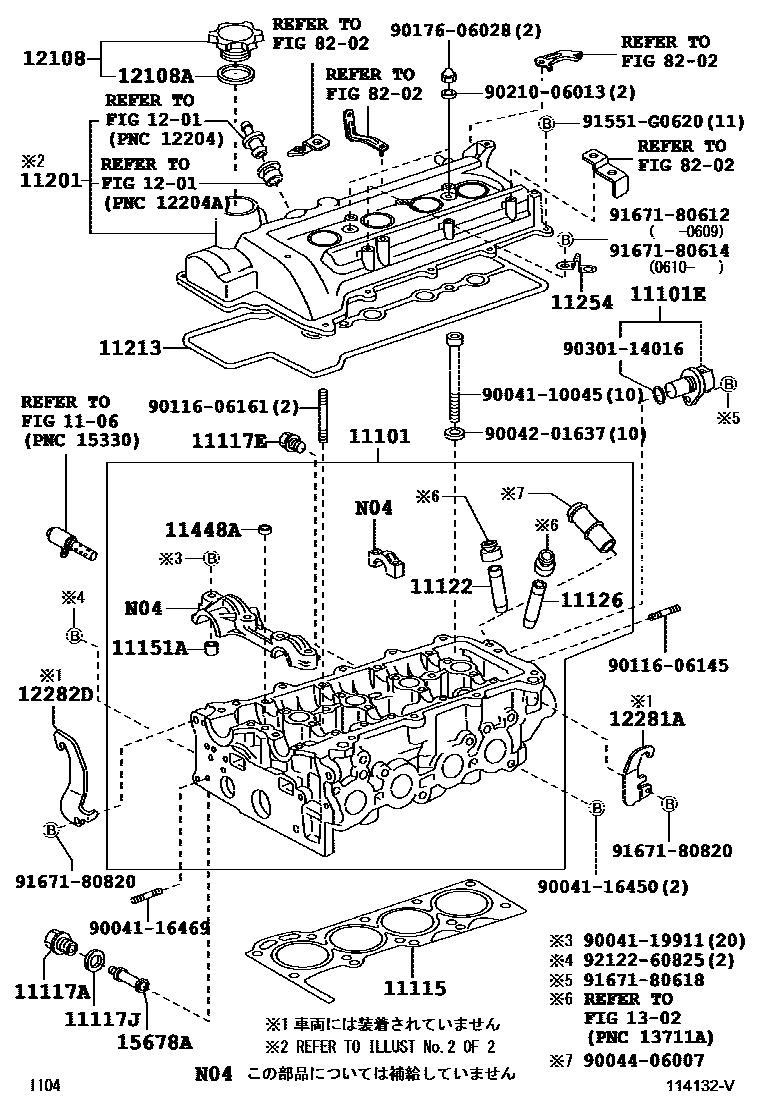

Toyota BB — CYLINDER HEAD
1106TIMING GEAR COVER & REAR END PLATE
11101HEAD SUB-ASSY, CYLINDER
11101ESENSOR, CAM POSITION
11115GASKET, CYLINDER HEAD
11117APLUG, W/HEAD TAPER SCREW, NO.1
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
11122BUSH, INTAKE VALVE GUIDE
11126BUSH, EXHAUST VALVE GUIDE
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
11201COVER SUB-ASSY, CYLINDER HEAD
11213GASKET, CYLINDER HEAD COVER
11254BRACKET, V-BANK COVER, NO.1
11448AORIFICE, CYLINDER HEAD OIL
1201VENTILATION HOSE
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
12281AHANGER, ENGINE, NO.1
12282DHANGER, ENGINE, NO.2
1302CAMSHAFT & VALVE
15678AFILTER, OIL CONTROL VALVE
8202WIRING & CLAMP
9004110045
main90041-10045
9004116450
main90041-16450
9004116469
main90041-16469
9004119911
main90041-19911
9004201637
main90042-01637
9004406007
main90044-06007
9011606145
main90116-06145
9011606161
main90116-06161
9017606028
main90176-06028
9021006013
main90210-06013
9030114016
main90301-14016
91551G0620
main91551-G0620
9167180612
main91671-80612
9167180614
main91671-80614
9167180618
main91671-80618
9167180820
main91671-80820
9212260825
main92122-60825
39 parts on this diagram · 3 diagrams in section
CYLINDER HEAD for Toyota BB
This section contains 43 genuine Toyota parts for the CYLINDER HEAD system of the Toyota BB. Key components include: TIMING GEAR COVER & REAR END PLATE, HEAD SUB-ASSY, CYLINDER, SENSOR, CAM POSITION, GASKET, CYLINDER HEAD, PLUG, W/HEAD TAPER SCREW, NO.1.
