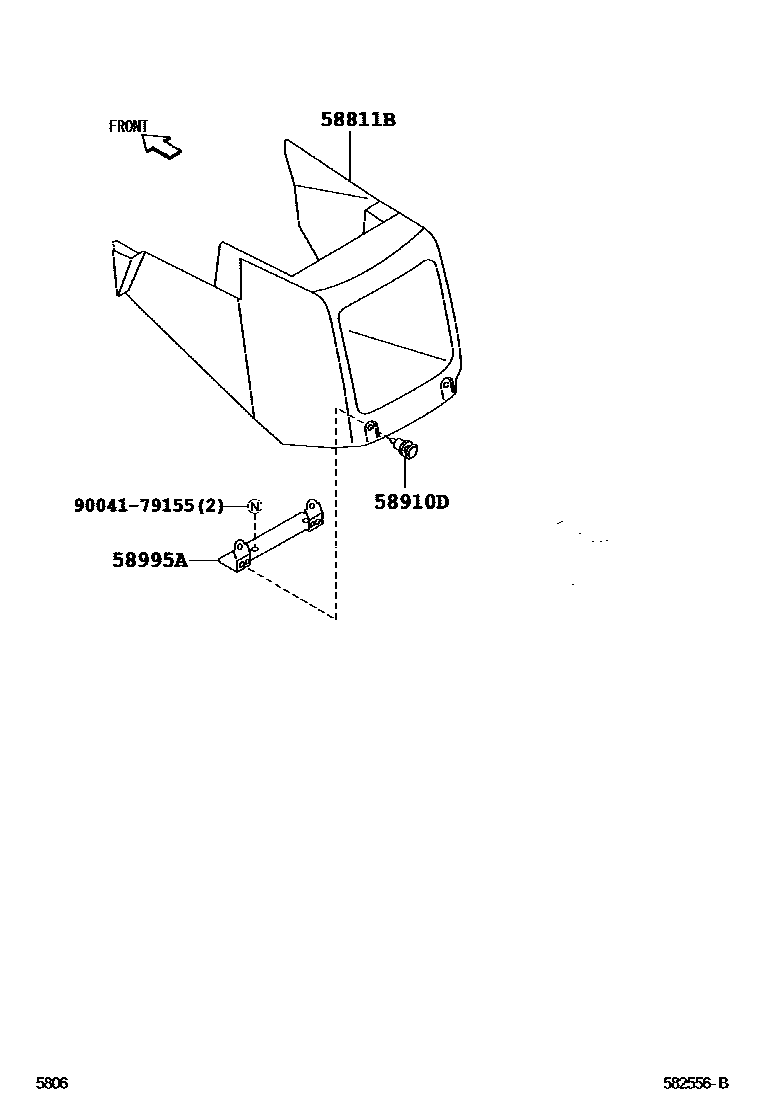

Toyota BB — CONSOLE BOX & BRACKET

58811BBOX, CONSOLE

main58801-B1020-B0supersedes 58801-B1010-B0iQNC2#200601-200809

58910DCLIP(FOR CONSOLE BOX)

main90467-07055-B6×2iQNC20,21;QNC25..Z201112-201607

DK.GRAY,TRIM1#

main90467-07055-C1×2iQNC20,21;QNC25..Z200601-200809

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-B1010iQNC20,21;QNC25..Z200601-200809

9004179155

main90041-79155

4 parts on this diagram · 1 diagram in section
