Toyota BB — ARMREST & VISOR

63339BCOVER,

main63339-B2010-B1×2iQNC2#200809-201607

DK.GRAY,TRIM1#,4#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-B1040-B0iQNC2#200601-200809

DK.GRAY,TRIM1#

main74231-B1030-C0iQNC20,21;QNC25..Z200601-200809

main74231-B1030-C2iQNC20,21;QNC25..Z200809-201302

main74231-B1110-C0iQNC20,21;QNC25..Z200809-201302

main74231-B1140-C0iQNC20,21;QNC25..Z201302-201607

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-B1040-B0iQNC2#200809-201607

DK.GRAY,TRIM1#,4#

main74232-B1030-C0iQNC20,21;QNC25..Z200601-200809

main74232-B1030-C2iQNC20,21;QNC25..Z201112-201409

main74232-B1100-C0iQNC20,21;QNC25..Z200809-201302

main74232-B1140-C0iQNC20,21;QNC25..Z201302-201607

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-B1030-B0iQNC2#200601-200809

DK.GRAY,TRIM1#

main74271-B1020-C0iQNC20,21;QNC25..Z200601-200809

main74271-B1020-C2iQNC20,21;QNC25..Z200809-201302

main74271-B1090-C0iQNC20,21;QNC25..Z200809-201302

main74271-B1120-C0iQNC20,21;QNC25..Z201302-201607

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-B1030-B0iQNC2#200601-200809

DK.GRAY,TRIM1#

main74272-B1020-C0iQNC20,21;QNC25..Z200601-200809

main74272-B1020-C2iQNC20,21;QNC25..Z201112-201409

main74272-B1090-C0iQNC20,21;QNC25..Z200809-201302

main74272-B1120-C0iQNC20,21;QNC25..Z201302-201607

74310VISOR ASSY, RH

main74310-B1090-B0iQNC2#200601-200809

DK.GRAY,TRIM1#

main74310-B1091-B0iQNC2#200809-201607

DK.GRAY,TRIM1#,4#

74320VISOR ASSY, LH

main74320-B1100-B0iQNC2#200601-200809

DK.GRAY,TRIM1#

main74320-B1180-B0iQNC2#200809-201607

DK.GRAY,TRIM1#,4#

74348HOLDER, VISOR

main74348-97401-B1×2iQNC2#200601-200809

DK.GRAY,TRIM1#

sub74348-B2040

74610SGRIP ASSY, ASSIST

main74611-B2010-B1×4supersedes 74611-B2010-B1iQNC2#200601-200809

DK.GRAY,TRIM1#

74611GGRIP, ASSIST, NO.2

main74611-48010-B1iQNC2#200601-200809

DK.GRAY,TRIM1#

9004149112

main90041-49112

9004168138

main90041-68138

9015960503

main90159-60503

9046710203

main90467-10203

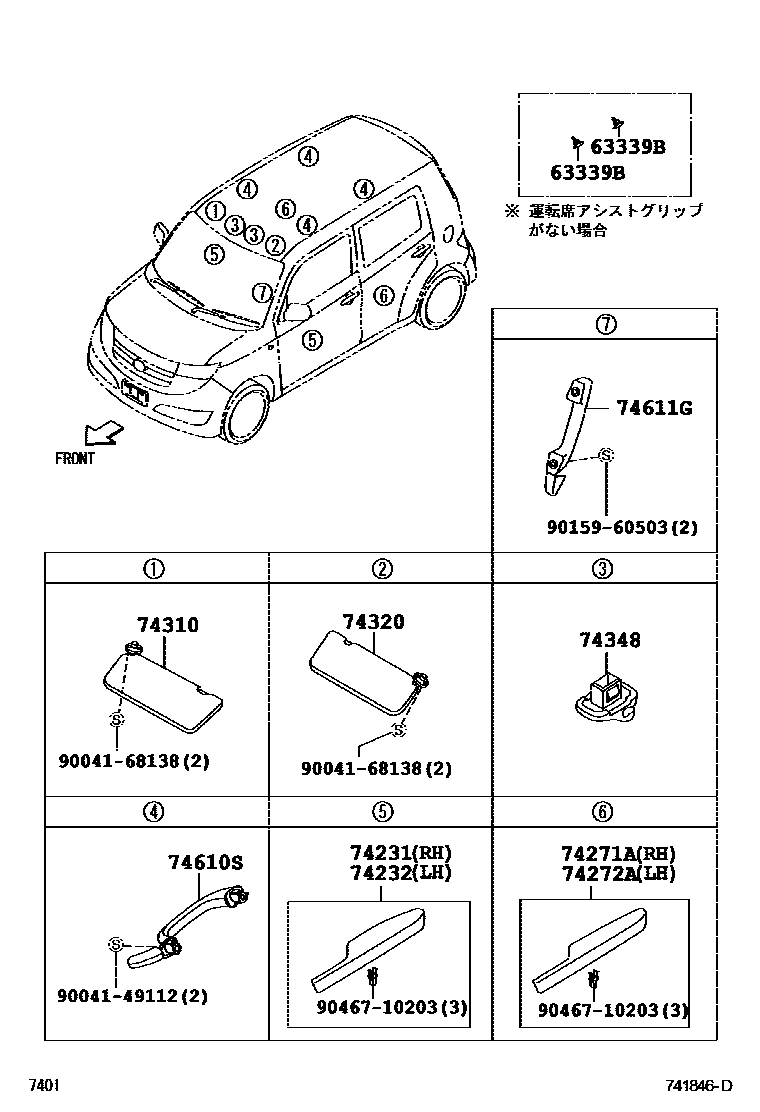

14 parts on this diagram · 1 diagram in section
