Toyota BB — ANTENNA

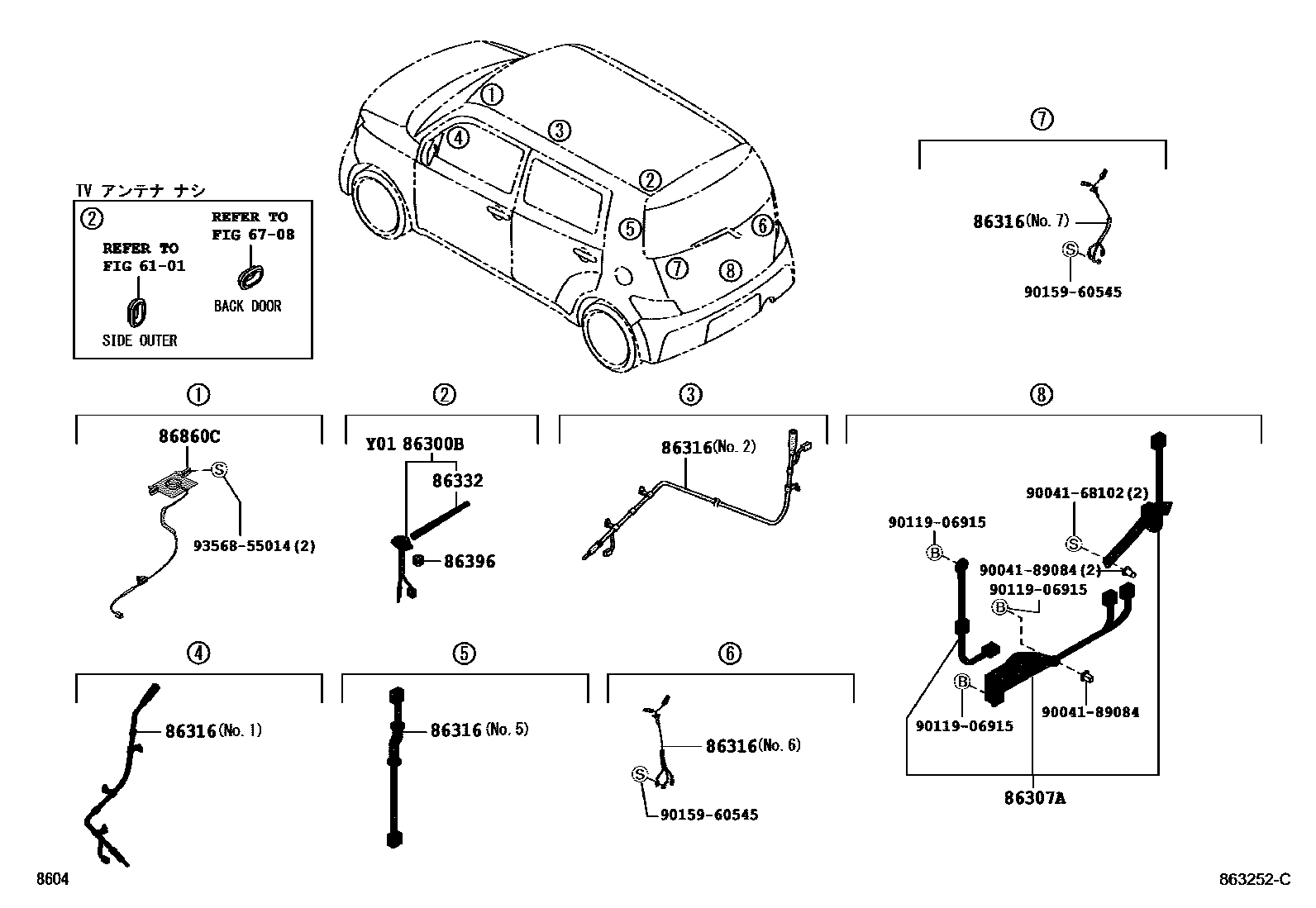

Parts diagram

6101SIDE MEMBER

→ Go to FIG 61-01

6708BACK DOOR PANEL & GLASS

→ Go to FIG 67-08

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-B1060i200601-200704

main86300-B1061i200809

86307AANTENNA ASSY, TELEVISION AMPLIFIER

main86307-B1010i200809-201007

86316CABLE, ANTENNA

main86316-B1080i200809-201409

main86316-B1090i200809-201409

main86316-B1110i200809-201007

main86316-B1120i200708-200809

main86316-B1130i200809-201007

main86316-B1160i200809-201007

main86316-B1170i200708-200809

86332ROD, ANTENNA

main86332-B1020i200601-200809

86396NUT, ANTENNA

main86396-97201i200601-200809

86860CANTENNA ASSY, NAVIGATION

main86860-B1030i200601-200708

main86870-B1010i200708-200809

9004168102

main90041-68102

9004189084

main90041-89084

9011906915

main90119-06915

9015960545

main90159-60545

9356855014

main93568-55014

13 parts on this diagram · 2 diagrams in section

ANTENNA for Toyota BB

This section contains 14 genuine Toyota parts for the ANTENNA system of the Toyota BB. Key components include: SIDE MEMBER, BACK DOOR PANEL & GLASS, ANTENNA ASSY, AMPLIFIER, NO.1, ANTENNA ASSY, TELEVISION AMPLIFIER, CABLE, ANTENNA.
