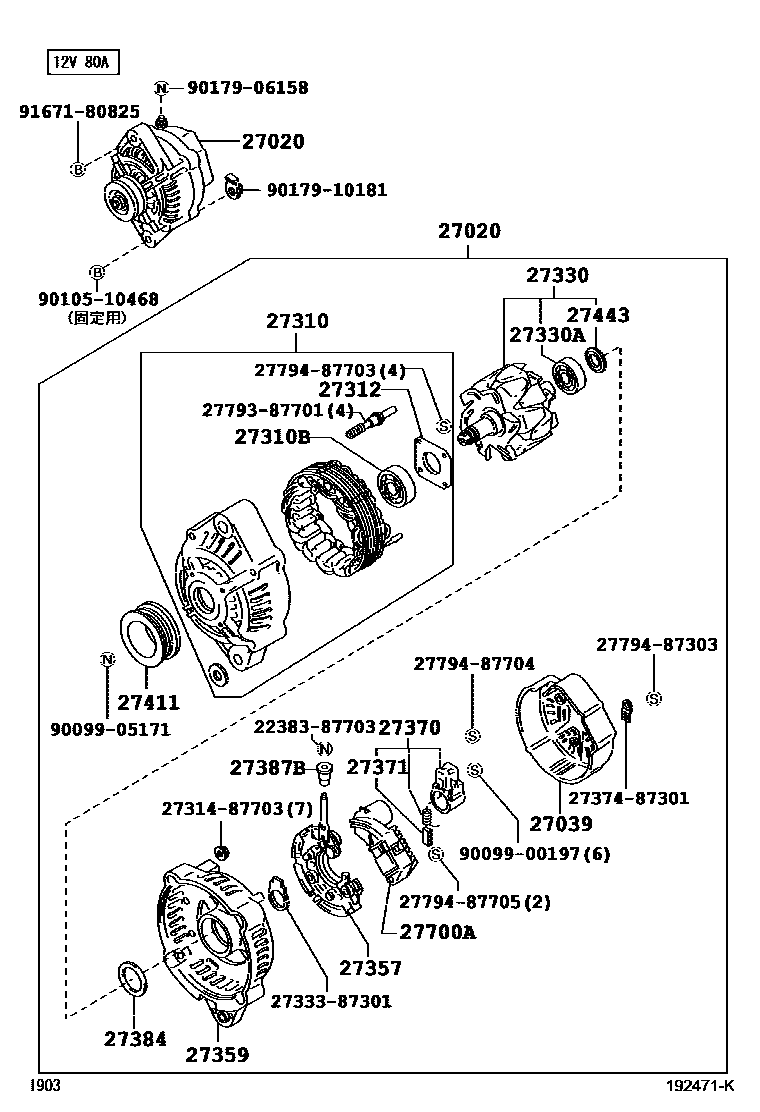

Toyota BB — ALTERNATOR
27020ALTERNATOR ASSY
27039COVER, ALTERNATOR REAR END
27310FRAME ASSY, DRIVE END, ALTERNATOR
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
27312PLATE, RETAINER
27330ROTOR ASSY, ALTERNATOR
27330ABEARING(FOR ALTERNATOR ROTOR)
27357HOLDER, ALTERNATOR, W/RECTIFIER
27359FRAME, ALTERNATOR RECTIFIER END
27370HOLDER ASSY, ALTERNATOR BRUSH
27371BRUSH, ALTERNATOR
27384WASHER
27387BINSULATOR, ALTERNATOR TERMINAL
27411PULLEY, ALTERNATOR
27443COVER, ALTERNATOR BEARING
27700AREGULATOR ASSY, GENERATOR
2238387703NUT, STOP WIRE BRACKET
main22383-87703
2731487703
main27314-87703
2733387301COLLAR, SPACE(FOR ALTERNATOR ROTOR)
main27333-87301
2737487301
main27374-87301
2779387701
main27793-87701
2779487303
main27794-87303
2779487703
main27794-87703
2779487704
main27794-87704
2779487705
main27794-87705
9009900197
main90099-00197
9009905171
main90099-05171
9010510468
main90105-10468
9017906158
main90179-06158
9017910181
main90179-10181
9167180825
main91671-80825
31 parts on this diagram · 2 diagrams in section
ALTERNATOR for Toyota BB
This section contains 34 genuine Toyota parts for the ALTERNATOR system of the Toyota BB. Key components include: ALTERNATOR ASSY, COVER, ALTERNATOR REAR END, FRAME ASSY, DRIVE END, ALTERNATOR, BEARING(FOR ALTERNATOR DRIVE END FRAME), PLATE, RETAINER.
