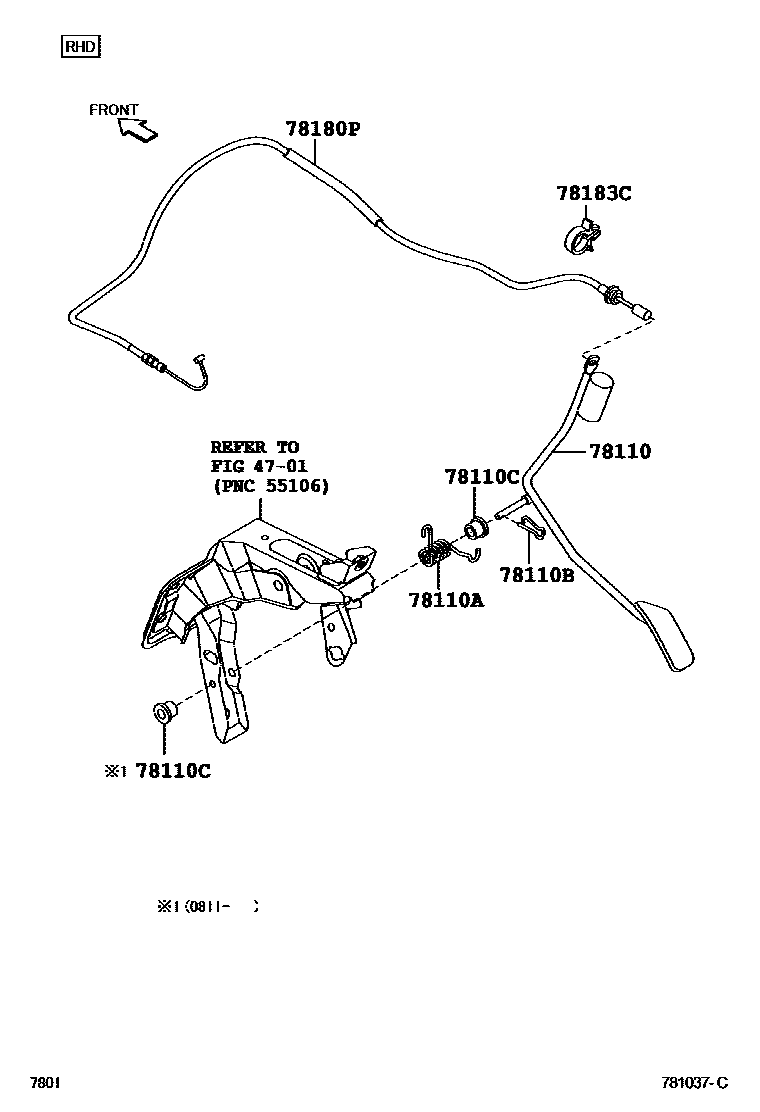

Toyota BB — ACCELERATOR LINK

4701

78110ROD ASSY, ACCELERATOR PEDAL

main78101-B1011iQNC2#200601-200809

main78101-B1060iQNC25200811-201409

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main78214-B1011iQNC2#200601-200809

78110BCLIP, ACCELERATOR BELLCRANK

main90044-68207iQNC2#200601-200809

78110CBUSH (FOR ACCELERATOR PEDAL ROD)

main90043-86112iQNC2#200601-200809

main90043-86134×2iQNC25200811-201409

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-B1020iQNC2#200601-200809

main78180-B1021iQNC25200903-201409

78183CCLAMP, ACCELERATOR CONTROL CABLE

main78183-B2020iQNC2#200601-200809

7 parts on this diagram · 1 diagram in section
