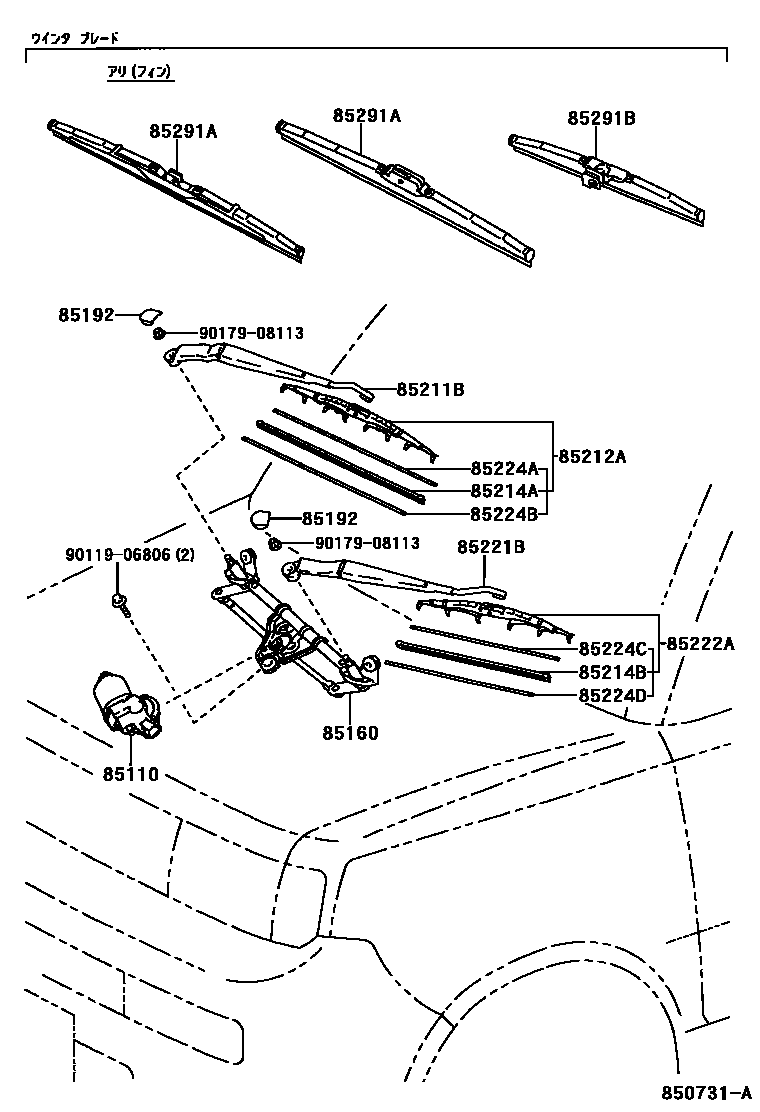

Toyota BB/OPEN DECK — WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-52120iNCP3#200001-200208

85160LINK ASSY, WINDSHIELD WIPER

main85150-52070iNCP3#200001-200208

main85150-52071iNCP3#200408-200512

85192COVER, WINDSHIELD WIPER ARM

main85192-12800×2iNCP3#200001-200208

85211BARM, FRONT WIPER, RH

main85211-52090iNCP3#200001-200208

85212ABLADE, FR WIPER, RH

main85212-37080iNCP3#200001-200208

main85212-37081iNCP3#200208-200312

main85212-52150iNCP3#200312-200512

sub85212-52151

85214ARUBBER, WIPER, RH

main85214-24050iNCP3#200312-200512

sub85214-24051

main85214-53050iNCP3#200208-200312

85214BRUBBER, WIPER, LH

main85214-48020iNCP3#200001-200208

sub85214-53041

main85214-53040iNCP3#200312-200512

sub85214-53041

85221BARM, FRONT WIPER, LH

main85221-52090iNCP3#200001-200208

85222ABLADE, FR WIPER, LH

main85222-52060iNCP3#200001-200208

main85222-52061iNCP3#200208-200512

sub85222-48111

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-10180iNCP3#200001-200208

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-10180iNCP3#200001-200208

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-35040iNCP3#200001-200208

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-35040iNCP3#200001-200208

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-52020iNCP3#200208-200512

main85291-52030iNCP3#200001-200208

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-33050iNCP3#200208-200512

main85291-52010iNCP3#200001-200208

9011906806

main90119-06806

9017908113

main90179-08113

17 parts on this diagram · 2 diagrams in section
