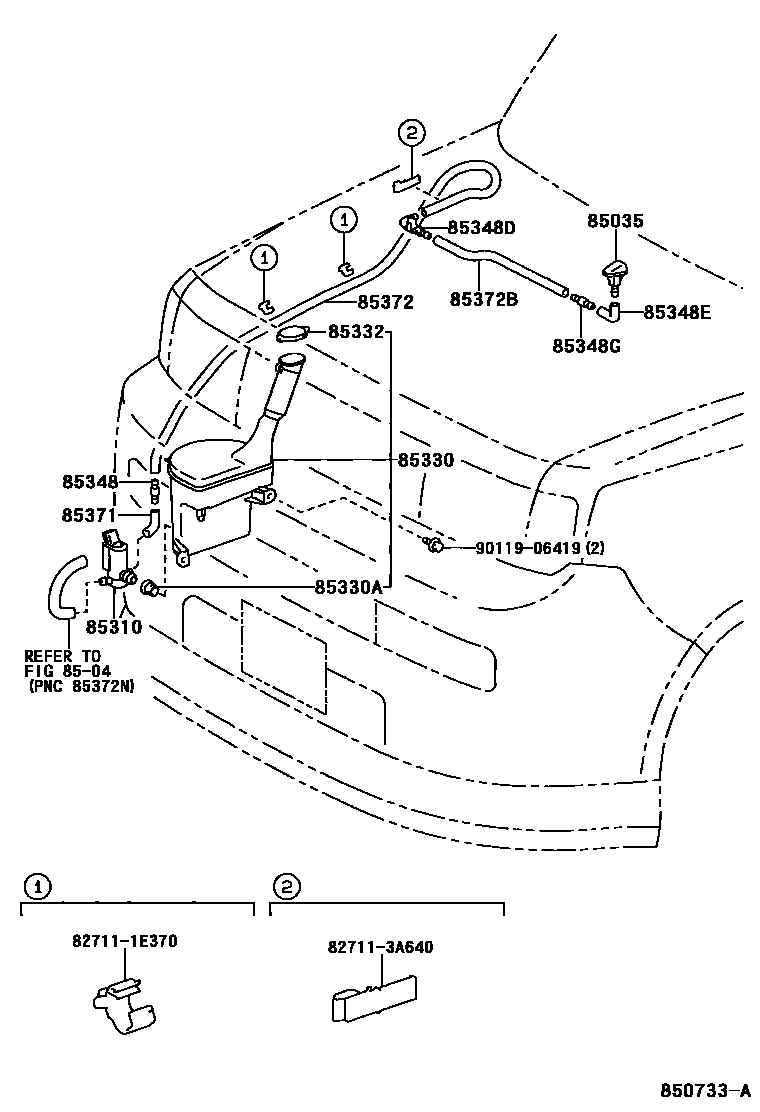

Toyota BB/OPEN DECK — WINDSHIELD WASHER

0001 1 0002 1

85035NOZZLE SUB-ASSY, WASHER

main85381-44010×2iNCP3#200304-200512

main85381-52070iNCP3#200001-200208

sub85381-52180

8504

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-10280iNCP34200106-200208

main85330-20460iNCP30,31,35200208-200512

sub85330-20461

main85330-52010iNCP34200208-200303

main85330-52030iNCP30,31,35200101-200110

85330JAR ASSY, WINDSHIELD WASHER

main85315-52050iNCP3#200001-200208

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iNCP3#200001-200208

85332CAP, WINDSHIELD WASHER JAR

main85316-42011iNCP3#200001-200208

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iNCP3#200001-200208

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85378-12480iNCP3#200001-200208

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85336-12230iNCP3#200208-200512

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122iNCP3#200001-200208

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iNCP3#200001-200208

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-62025iNCP3#200304-200512

main90446-07001iNCP3#200001-200208

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080iNCP3#200304-200512

main90446-07001iNCP3#200001-200208

827111E370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E370

827113A640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A640

9011906419

main90119-06419

16 parts on this diagram · 2 diagrams in section
