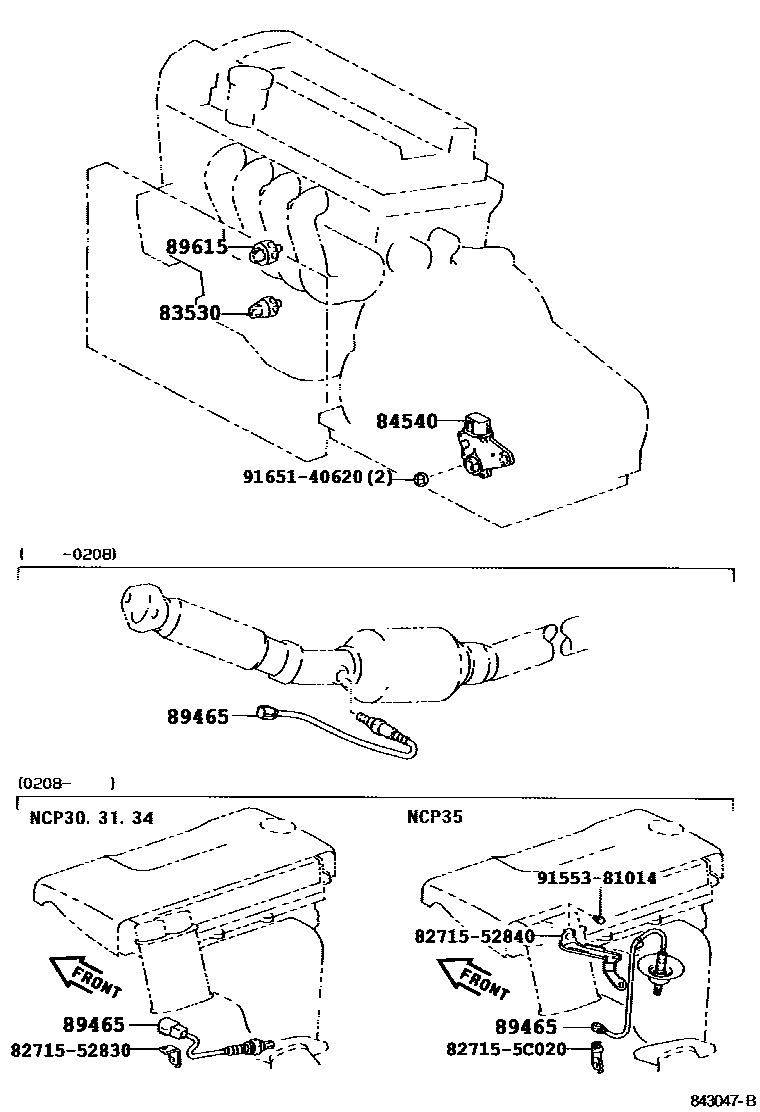

Toyota BB/OPEN DECK — SWITCH & RELAY & COMPUTER

0001 1����� & ��������� 0002 1������-� 0003 1��� 0004 1������������ 0005 1�����-��� ���� 0006 1���,�-�,��� & ����-�� 0007 1���,�-�,��� & ����-��

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iNCP3#200001-200308

main83530-28020iNCP3#200308-200512

main83530-60020iNCP3#200308-200512

84540SWITCH ASSY, NEUTRAL START

main84540-52010iNCP30200001-200512

main84540-52050iNCP31,34,35200001-200512

89465SENSOR, OXYGEN

main89465-20810iNCP30,31,34200208-200512

main89465-41060iNCP31,34200001-200208

main89465-52040iNCP30200001-200208

main89465-52110iNCP35200001-200208

main89465-52210iNCP35200208-200512

89615SENSOR, KNOCK CONTROL

main89615-22050iNCP30200001-200008

sub89615-52010

main89615-52010iNCP30200001-200008

main89615-52030iNCP3#200001-200512

main89615-52030iNCP31,35200007-200309

main89615-52040iNCP31,35200007-200309

sub89615-52030

8271552830BRACKET,WIRING HARNESS CLAMP

main82715-52830

8271552840BRACKET,WIRING HARNESS CLAMP

main82715-52840

827155C020BRACKET,WIRING HARNESS CLAMP

main82715-5C020

9155381014

main91553-81014

9165140620

main91651-40620

9 parts on this diagram · 7 diagrams in section
