Toyota BB/OPEN DECK — SIDE MEMBER

0001 1������� 0002 1������� 0003 1������� 0004 1������� 0005 1�������� 0006 1��������

53821BBRACKET, FRONT FENDER, REAR RH

main53821-16010iNCP3#200001-200208

53822BBRACKET, FRONT FENDER, REAR LH

main53821-16010iNCP3#200001-200208

61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH

main61027-52020iNCP30,31,35200208-200304

main61027-52030iNCP30,31,35200208-200512

main61027-52040iNCP34200106-200208

61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH

main61028-52020iNCP30,31,35200208-200302

main61028-52021iNCP30,31,35200302-200304

main61028-52030iNCP30,31,35200001-200208

main61028-52031iNCP3#200302-200512

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-52040iNCP30,31,35200001-200208

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-52040iNCP30,31,35200001-200208

main61214-52050iNCP34200208-200303

61411PANEL, ROCKER, OUTER RH

main61411-52090iNCP30,31,35200208-200303

main61411-52100iNCP30,31,35200001-200208

61412PANEL, ROCKER, OUTER LH

main61412-52090iNCP30,31,35200208-200303

main61412-52100iNCP30,31,35200208-200512

main61412-52130iNCP34200208-200303

61611PANEL, QUARTER, RH

main61601-52100iNCP30,31,35200208-200303

main61601-52110iNCP30,31,35200208-200512

main61601-52130iNCP34200106-200208

61612PANEL, QUARTER, LH

main61602-52110iNCP30,31,35200208-200303

main61602-52120iNCP30,31,35200208-200512

main61602-52150iNCP34200208-200303

61619EREINFORCEMENT, QUARTER PANEL

main61619-52020iNCP3#200001-200208

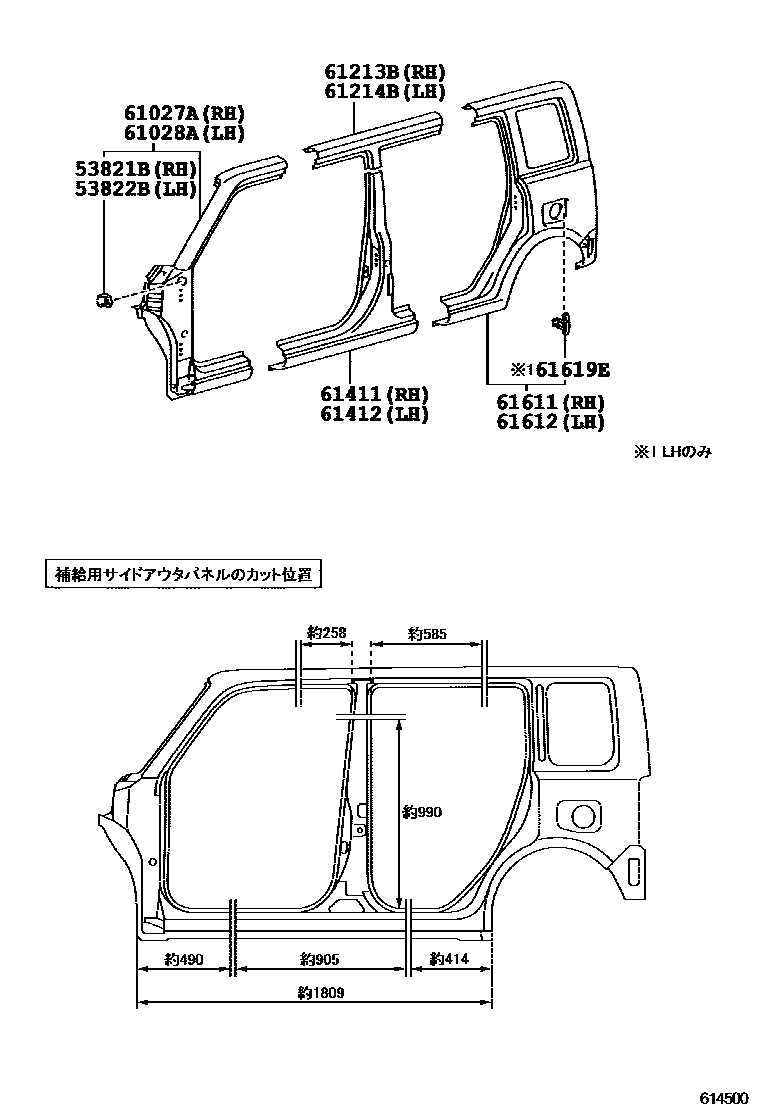

11 parts on this diagram · 6 diagrams in section
