Toyota BB/OPEN DECK — ROOF PANEL & BACK WINDOW GLASS

61824APLATE, NOISE CONTROL, NO.1

main61824-52010×6i200208-200512

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63105-52030i200208-200512

63111PANEL, ROOF

main63111-52110i200001-200208

main63111-52120i200001-200208

main63111-52160i200106-200208

63118SUPPORT, ROOF PANEL, RH

main63118-52030i200001-200208

63119SUPPORT, ROOF PANEL, LH

main63118-52030i200208-200512

63126BREINFORCEMENT, ROOF PANEL, REAR NO.2

main63126-52010i200001-200208

63132PANEL, WINDSHIELD HEADER, INNER

main63132-52030i200001-200208

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-52030i200001-200208

63142REINFORCEMENT, ROOF PANEL, NO.2

main63103-52010i200001-200208

63143AREINFORCEMENT, ROOF PANEL

main63143-52030×2i200001-200208

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-52010i200001-200208

63145BREINFORCEMENT, WINDSHIELD HEADER PANEL

main63145-52010i200208-200512

9017906274

main90179-06274

91511B0610

main91511-B0610

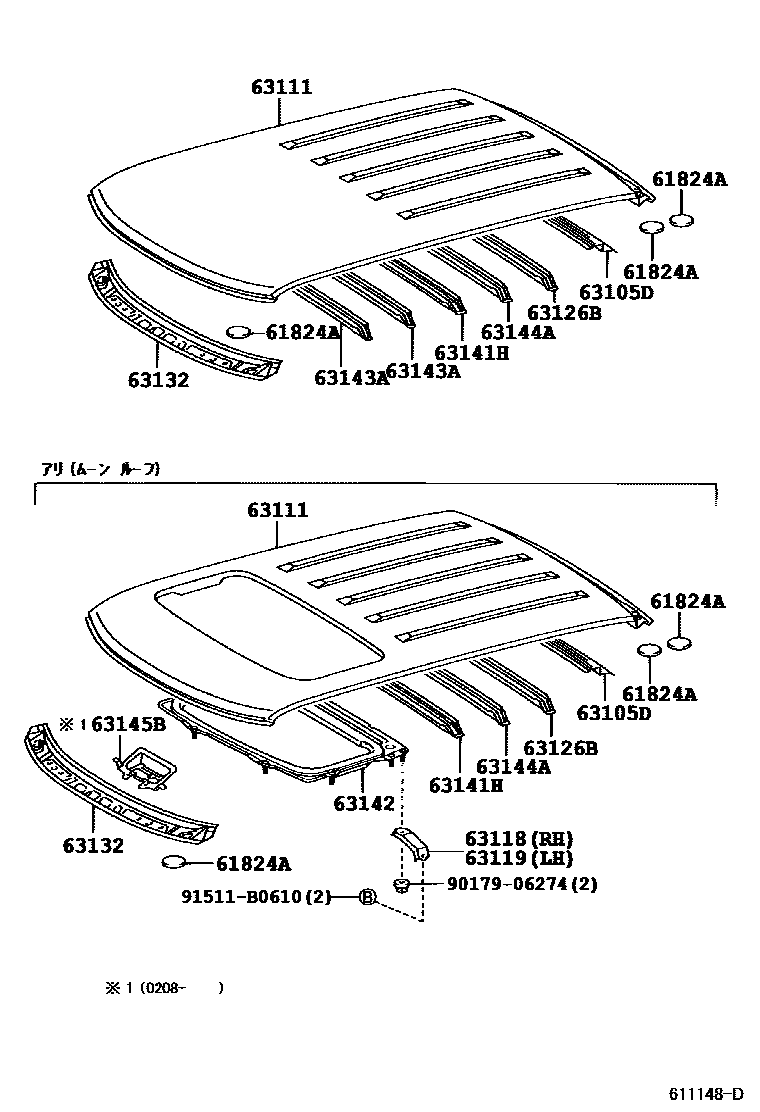

14 parts on this diagram · 3 diagrams in section

ROOF PANEL & BACK WINDOW GLASS for Toyota BB/OPEN DECK

This section contains 73 genuine Toyota parts for the ROOF PANEL & BACK WINDOW GLASS system of the Toyota BB/OPEN DECK. Key components include: PLATE, NOISE CONTROL, NO.1, RACK SUB-ASSY, ROOF, FRONT RH, RACK SUB-ASSY, ROOF, FRONT LH, RACK SUB-ASSY, ROOF, REAR RH, RACK SUB-ASSY, ROOF, REAR LH.
