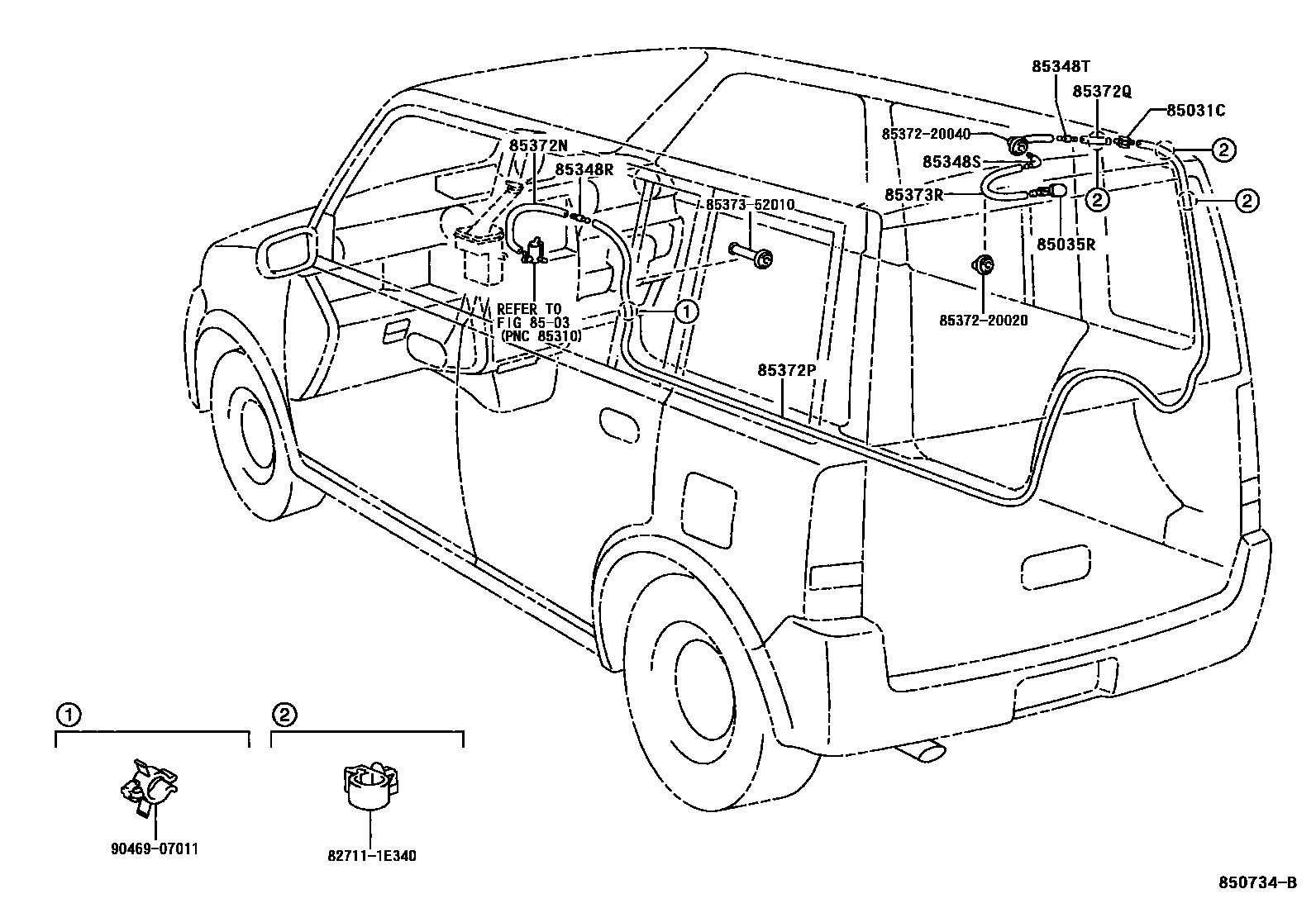

Toyota BB/OPEN DECK — REAR WASHER

8503

85031CVALVE SUB-ASSY, WASHER

main85321-26020iNCP30,31,35200001-200512

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-52030iNCP30,31,35200001-200512

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iNCP30,31,35200001-200512

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20200iNCP30,31,35200001-200512

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-89122iNCP30,31,35200001-200512

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iNCP30,31,35200001-200512

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90099-59262iNCP30,31,35200001-200512

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

main90446-06013iNCP30,31,35200001-200512

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33299iNCP30,31,35200001-200512

827111E340WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E340

8537220020HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85372-20020

8537220040HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85372-20040

8537352010HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-52010

9046907011

main90469-07011

15 parts on this diagram · 1 diagram in section
