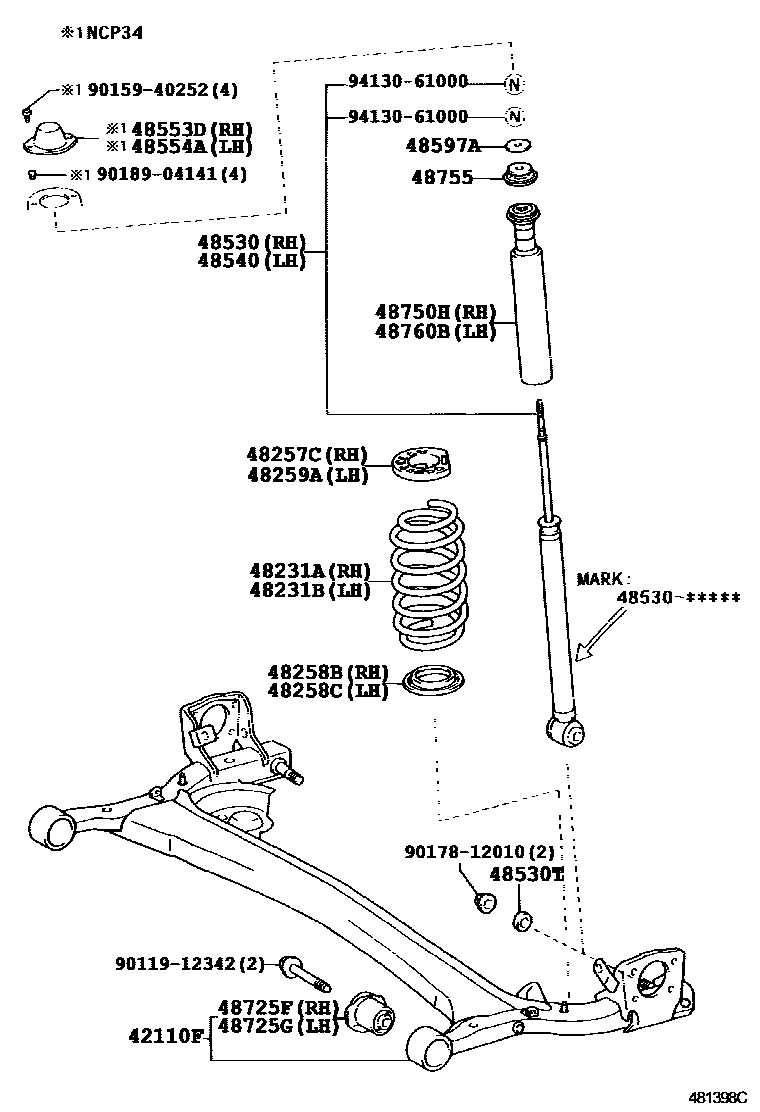

Toyota BB/OPEN DECK — REAR SPRING & SHOCK ABSORBER
42110FBEAM ASSY, REAR AXLE
48231ASPRING, COIL, REAR RH
48231BSPRING, COIL, REAR LH
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48530ABSORBER ASSY, SHOCK, REAR RH
48530TSPACER(FOR REAR SHOCK ABSORBER)
48540ABSORBER ASSY, SHOCK, REAR LH
48553DCAP, REAR SHOCK ABSORBER, RH
48554ACAP, REAR SHOCK ABSORBER, LH
48597ARETAINER, REAR SHOCK ABSORBER CUSHION
48725FBUSH, REAR AXLE CARRIER, RH
48725GBUSH, REAR AXLE CARRIER, LH
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48755SUPPORT, REAR SUSPENSION
48760BSUPPORT ASSY REAR SUSPENSION, LH
9011912342
main90119-12342
9015940252
main90159-40252
9017812010
main90178-12010
9018904141
main90189-04141
9413061000
main94130-61000
23 parts on this diagram · 3 diagrams in section
REAR SPRING & SHOCK ABSORBER for Toyota BB/OPEN DECK
This section contains 57 genuine Toyota parts for the REAR SPRING & SHOCK ABSORBER system of the Toyota BB/OPEN DECK. Key components include: BEAM ASSY, REAR AXLE, SPRING, COIL, REAR RH, SPRING, COIL, REAR LH, INSULATOR, REAR COIL SPRING, UPPER RH, INSULATOR, REAR COIL SPRING, LOWER RH.
