Toyota BB/OPEN DECKREAR DOOR WINDOW REGULATOR & HINGE

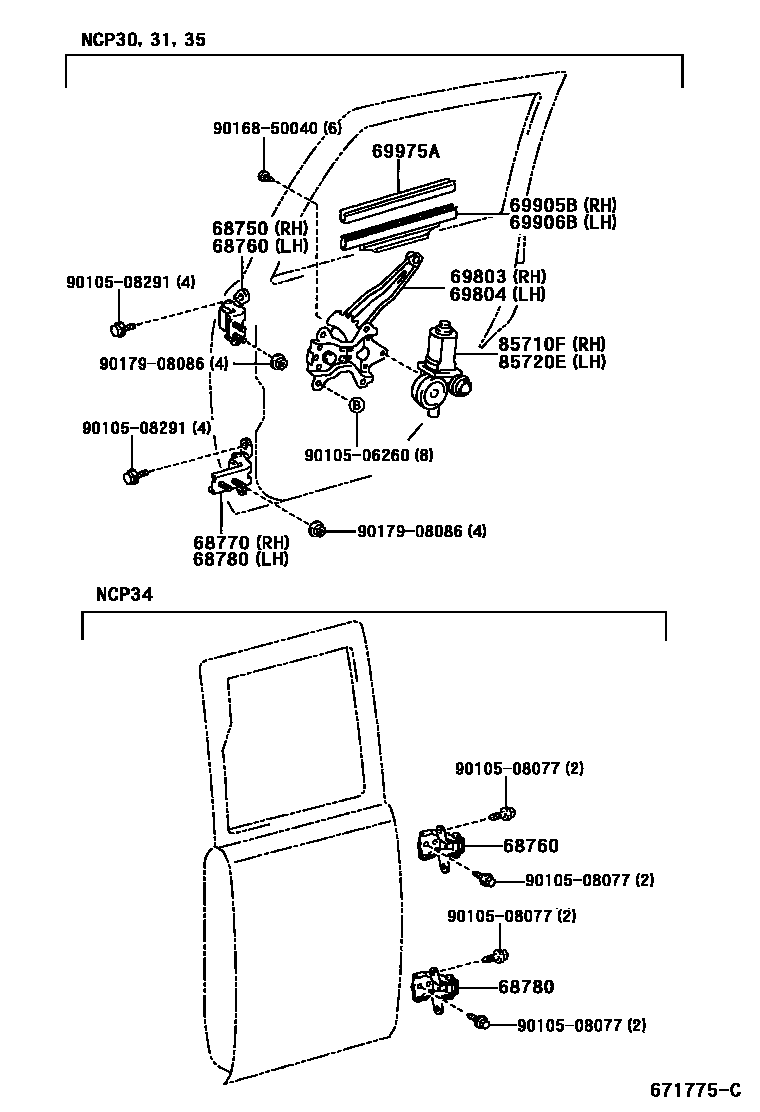

Parts diagram
68750HINGE ASSY, REAR DOOR, UPPER RH
main68750-42010i200208-200512
68760HINGE ASSY, REAR DOOR, UPPER LH
main68760-42010i200001-200208
main68760-52020i200106-200208
68770HINGE ASSY, REAR DOOR, LOWER RH
main68770-52020i200208-200512
68780HINGE ASSY, REAR DOOR, LOWER LH
main68750-52020i200106-200208
main68780-52020i200001-200208
69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
main69803-52030i200001-200208
69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
main69804-52030i200001-200208
69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH
main69905-52020i200001-200208
69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH
main69906-52010i200001-200208
69975AFILLER, REAR DOOR GLASS CHANNEL
main69975-52010×2i200001-200208
85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH
main85720-52030i200001-200012
main85720-52080i200012-200208
85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH
main85710-52040i200001-200012
main85710-52090i200012-200208
9010506260
9010508077
9010508291
9016850040
9017908086

16 parts on this diagram · 1 diagram in section

REAR DOOR WINDOW REGULATOR & HINGE for Toyota BB/OPEN DECK

This section contains 16 genuine Toyota parts for the REAR DOOR WINDOW REGULATOR & HINGE system of the Toyota BB/OPEN DECK. Key components include: HINGE ASSY, REAR DOOR, UPPER RH, HINGE ASSY, REAR DOOR, UPPER LH, HINGE ASSY, REAR DOOR, LOWER RH, HINGE ASSY, REAR DOOR, LOWER LH, REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH.
