Toyota BB/OPEN DECK — RADIATOR GRILLE

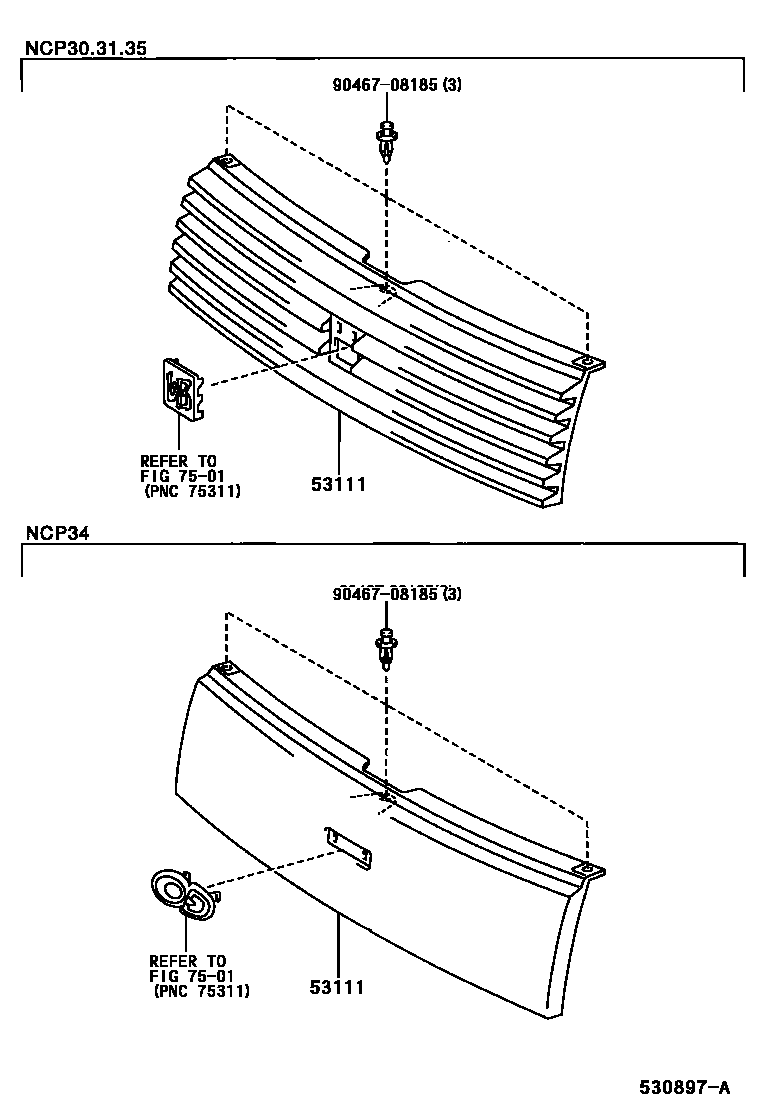

Parts diagram

53111GRILLE, RADIATOR

main53111-52070-A0i200001-200108

SUPER WHITE 2,040

main53111-52070-A1i200208-200512

WHITE,068

main53111-52070-A2i200109-200112

main53111-52070-B0i200208-200512

GRAY ME.,1D2

main53111-52070-B1i200012-200101

main53111-52070-C0i200001-200208

BLACK,202

main53111-52070-C1i200304-200512

BLACK MC.,209

main53111-52070-D0i200208-200304

BORDEAUX MC.,3P2

main53111-52070-D1i200408

main53111-52070-E0i200208-200512

ORANGE ME.,4R8

main53111-52070-F0i200001-200208

YELLOW M.M.,584

main53111-52070-G0i200208-200512

DK.GRAYISH OLIVE ME,6M7

main53111-52070-H0i200101-200103

main53111-52070-J0i200001-200208

BLUE MC.,8M6

main53111-52070-J1i200208-200512

DARK BLUE MC.,8P8

main53111-52130i200208-200303

main53111-52230i200404

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

9046708185

main90467-08185

3 parts on this diagram · 1 diagram in section

RADIATOR GRILLE for Toyota BB/OPEN DECK

This section contains 3 genuine Toyota parts for the RADIATOR GRILLE system of the Toyota BB/OPEN DECK. Key components include: GRILLE, RADIATOR, EMBLEM & NAME PLATE (EXTERIOR & INTERIOR).
