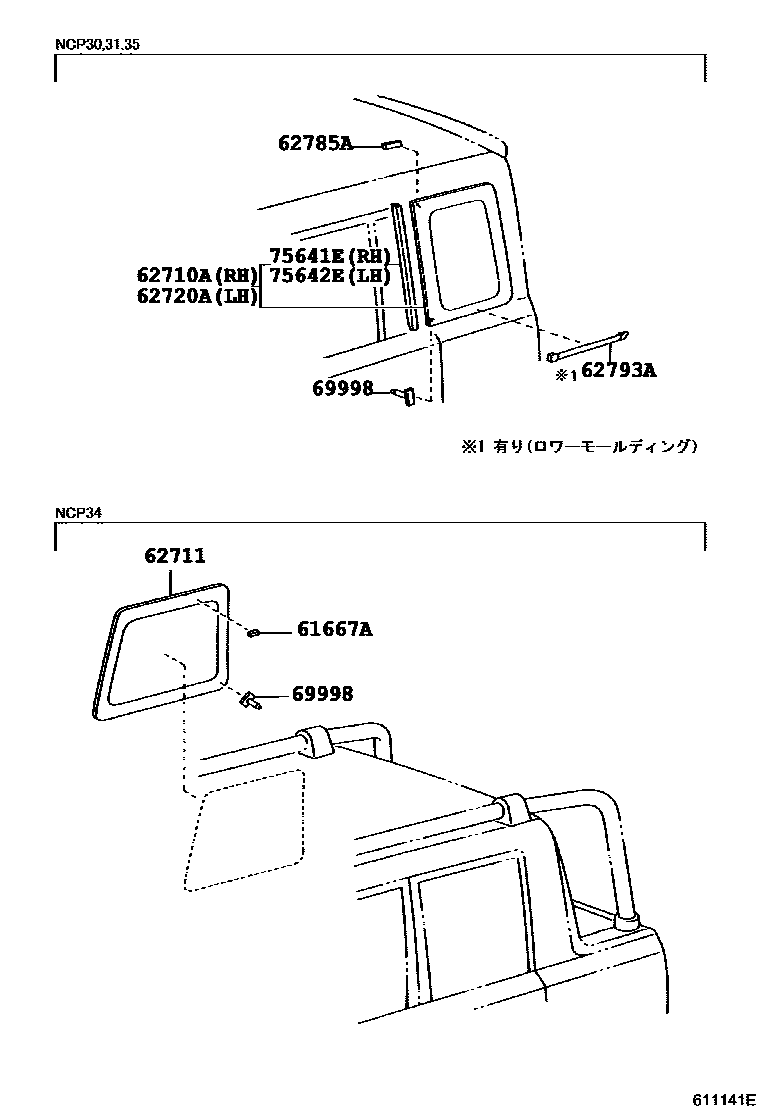

Toyota BB/OPEN DECK — QUARTER WINDOW

61667ASPACER QUARTER PANEL, NO.1

main62785-16030iNCP34200106-200303

62710AWINDOW ASSY, QUARTER, RH

main62710-52010iNCP30,31,35200001-200512

main62710-52020iNCP30,31,35200001-200512

main62710-52030iNCP30,31,35200001-200512

main62710-52040iNCP30,31,35200001-200512

main62710-52130iNCP31,35..Z200208-200304

main62710-52130iNCP31,35..Z200201-200207

main62710-52130iNCP31,35..Z200404

62711GLASS, QUARTER WINDOW, RH

main62711-52130iNCP34200106-200303

62720AWINDOW ASSY, QUARTER, LH

main62720-52010iNCP30,31,35200001-200512

main62720-52020iNCP30,31,35200001-200512

main62720-52030iNCP30,31,35200001-200512

main62720-52040iNCP30,31,35200001-200512

main62720-52130iNCP31,35..Z200201-200207

main62720-52130iNCP31,35..Z200208-200304

main62720-52130iNCP31,35..Z200404

62785ASPACER, QUARTER WINDOW GLASS

main62785-16030iNCP30,31,35200001-200512

62793AMOULDING, QUARTER WINDOW, LOWER

main62793-52010iNCP31,35..Z200404

main62793-52010iNCP31,35..Z200201-200207

main62793-52010iNCP31,35..Z200208-200304

main62794-52010iNCP31,35..Z200404

main62794-52010iNCP31,35..Z200208-200304

main62794-52010iNCP31,35..Z200201-200207

69998PIN, QUARTER WINDOW GUIDE PIECE, NO.1

main69998-52010iNCP30,31,35200001-200512

75641EMOULDING, QUARTER WINDOW, RH

main75641-52010iNCP30,31,35200001-200512

75642EMOULDING, QUARTER WINDOW, LH

main75642-52010iNCP30,31,35200001-200512

9 parts on this diagram · 1 diagram in section
