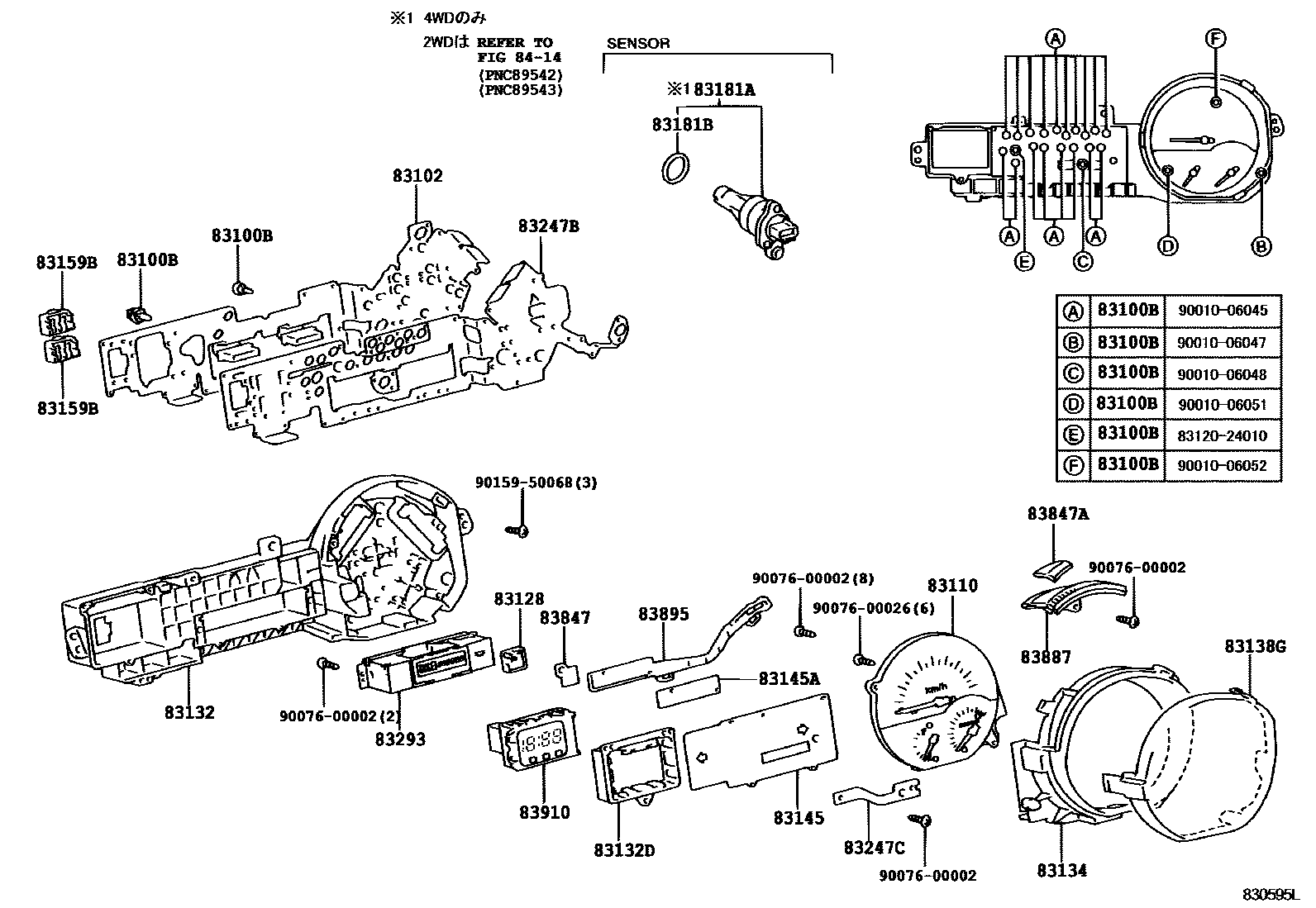

Toyota BB/OPEN DECK — METER
83100BBULB, COMBINATION METER, NO.1
83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83110SPEEDOMETER ASSY
83128KNOB, TRIP COUNTER
83132CASE, COMBINATION METER
83132DCASE, COMBINATION METER, NO.2
83134COVER, COMBINATION METER, NO.1
83138GGLASS, COMBINATION METER
83145LENS, METER, NO.1
83145ALENS, METER, NO.2
83159BRELAY ASSY, METER
83181ASENSOR, SPEEDOMETER
83181BRING, O (FOR SPEEDOMETER SENSOR)
83247BPLATE, METER CIRCUIT, NO.2
83247CPLATE, MATER CIRCUIT, NO.3
83293COMPUTER, TOTAL COUNTER MODULE
83847CUSHION, COMBINATION SPEEDOMETER, NO.1
83847ACUSHION, COMBINATION SPEEDMETER
83887PLATE, COMBINATION METER PRISM, NO.1
83895PLATE, COMBINATION METER PRISM, NO.2
83910CLOCK ASSY
8414
9007600002
main90076-00002
9007600026
main90076-00026
9015950068
main90159-50068
26 parts on this diagram · 2 diagrams in section
